ASSEMBLY AND PARTS LIST

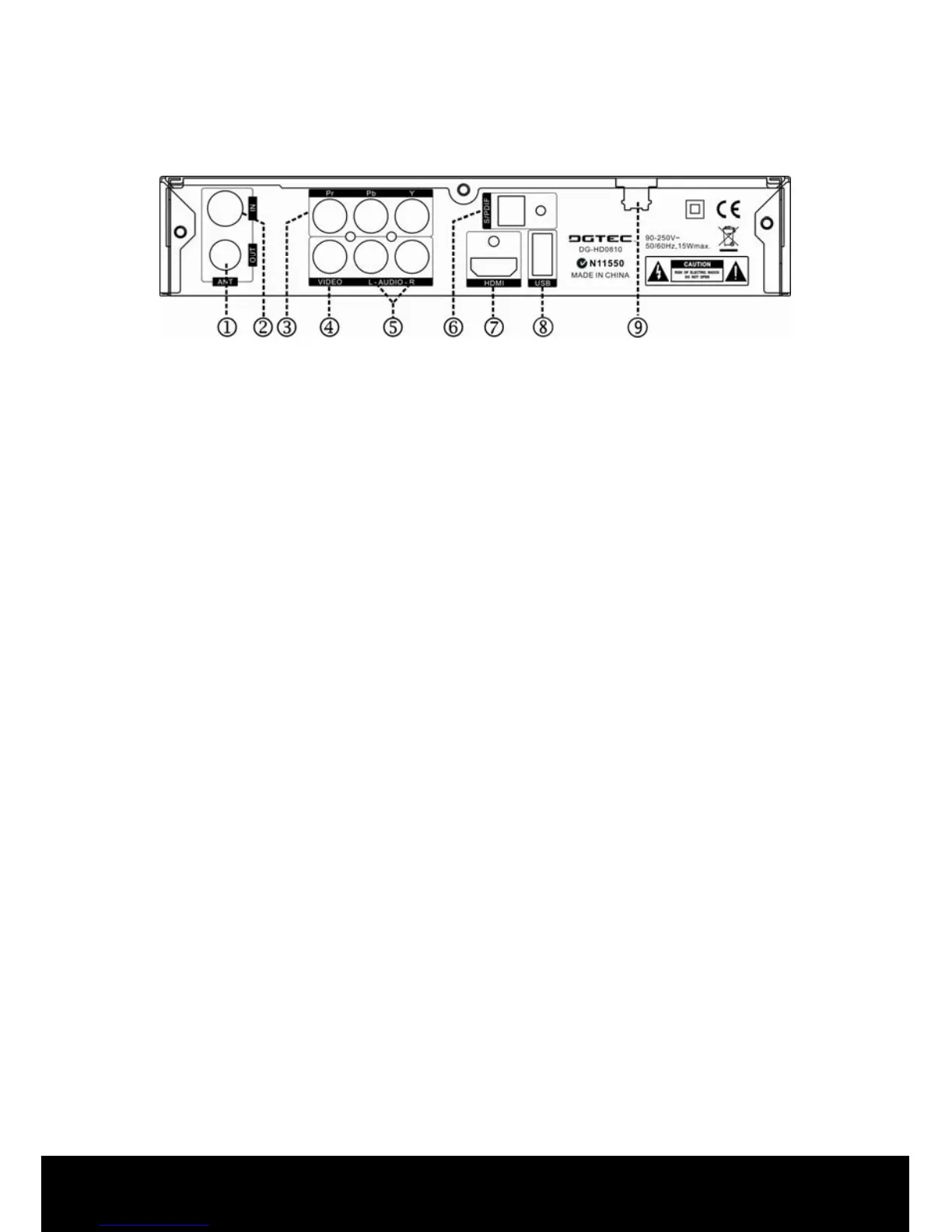

1.3 Rear Panel
1. ANT OUT
Used to loop to an extra analogue or digital device.
2. ANT IN
Used to connect an antenna.
3. YPbPr
Connects component video to HD Monitors (YPbPr Type).
4. VIDEO (Yellow Connector)
Connect to a TV with video input.
5. AUDIO L/R (White / Red RCA)
Connects to a TV audio input, HD Monitors audio input or an External Audio
Amplifier.
6. DIGITAL AUDIO (S/PDIF / Optical)
Connects to an External Audio Amplifier with S/PDIF / Optical Digital Audio
(optional).
7. HDMI Connector
Connects
High-Definition Multimedia output to HD Monitors (HDMI Type).
8. USB
USB port is used for viewing external files (MP3 audio files and JPEG or BMP
images), recording contents to an external USB memory device, playback of
contents recorded by this device and for software upgrades. (Software upgrades
only when advised by service technician.)
9. POWER CABLE
This is used to connect to your main power supply.
