9

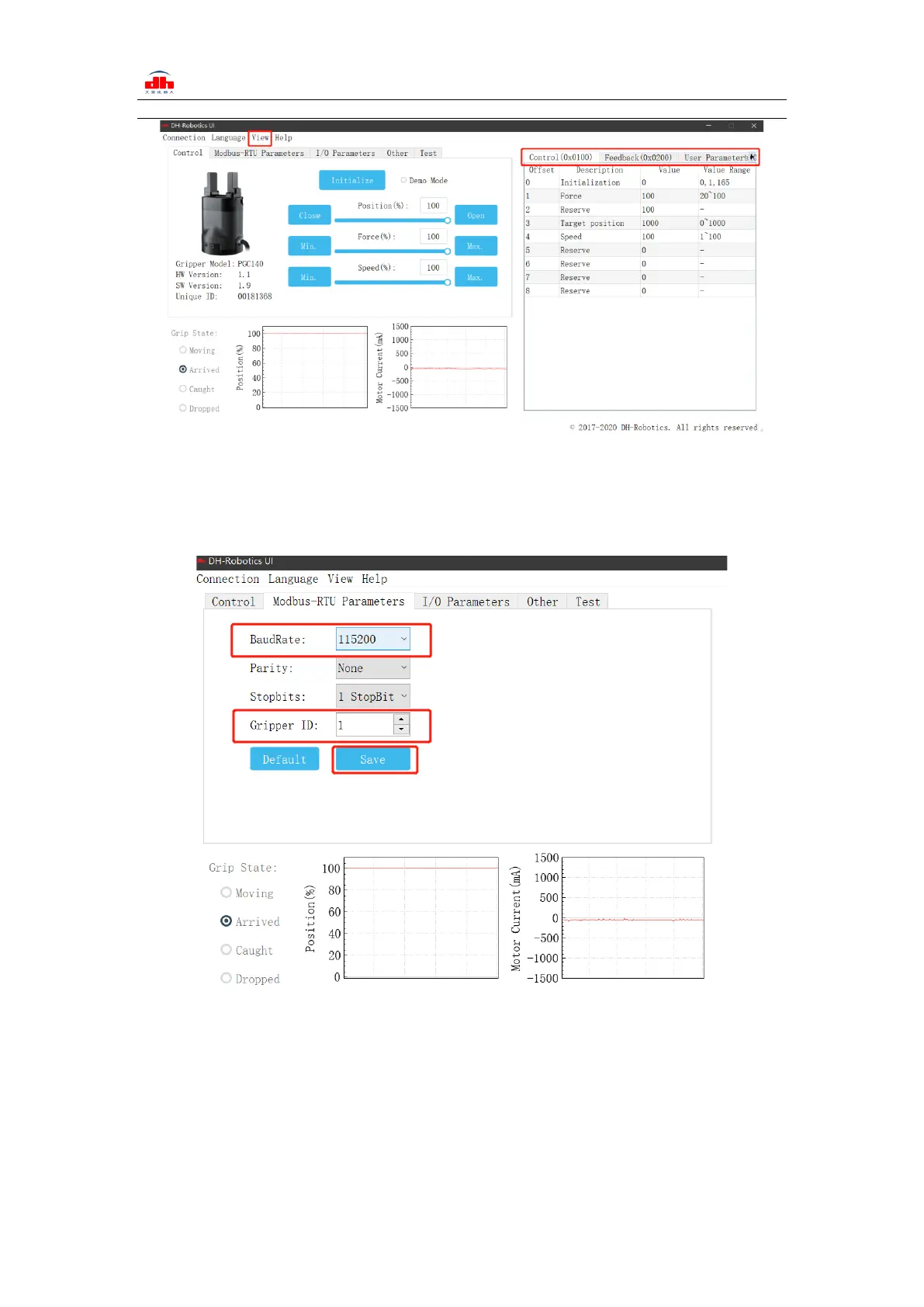

Figure 2.4 View
If there are multiple 485 devices, sometimes the baud rate and ID number of the gripper need
to be modified, the parameters can be modified in Modbus RTU parameters
Figure 2.5 Modbus RTU parameters
You can set and configure the gripper I / O parameters in [I / O parameters]. After modifying
the parameters, please click Save button to save. The following figure shows the operation of
opening IO mode:
