Diamond Digital DV300 - Rear View

DV300/DV301B 30" Multimedia Information Display

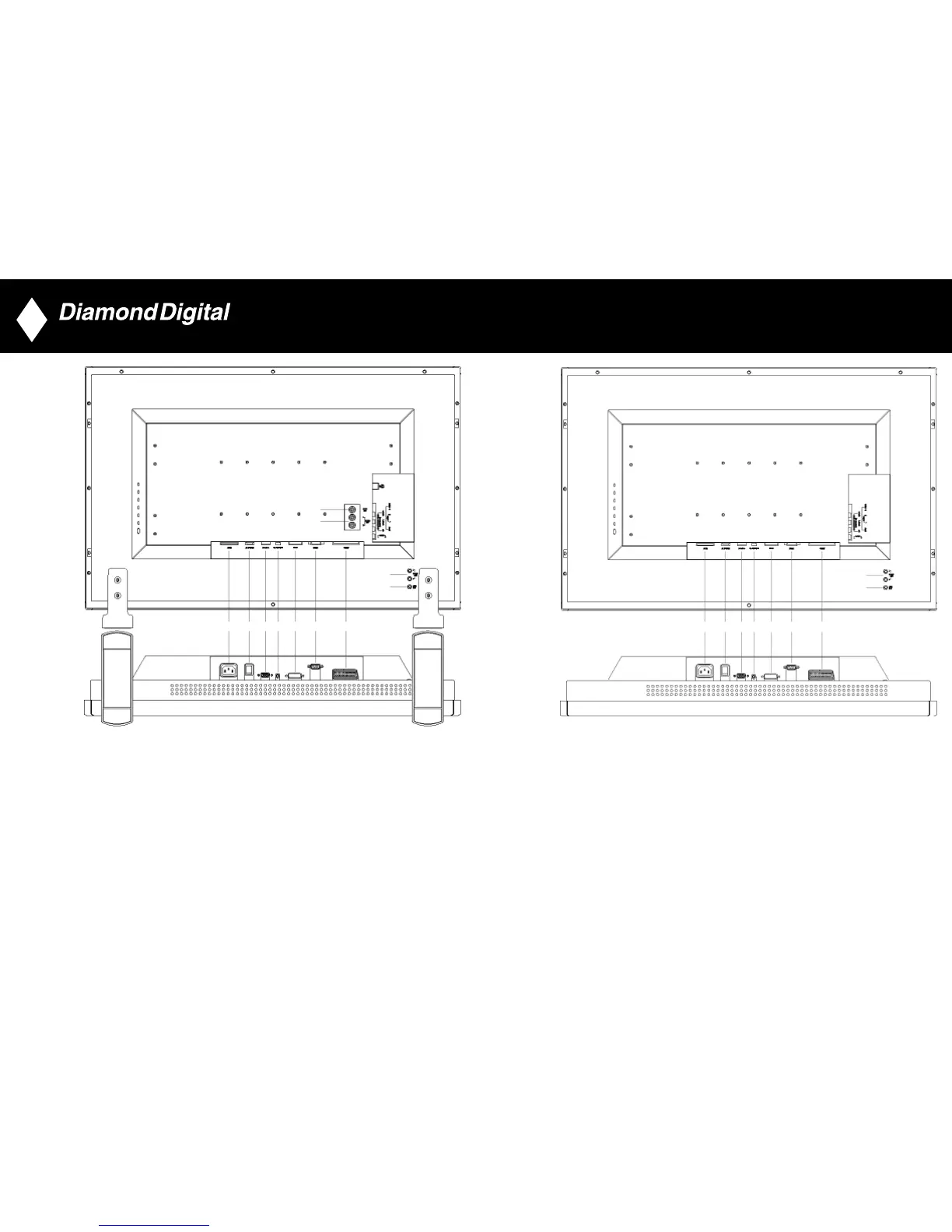

Rear View
DV300
1 AC IN AC power in
2 AC Power AC power switch
3 D-Sub PC analog D-Sub input
4 PC - Audio PC Stereo input
5 DVI-D PC digital input
6 RS232 RS232 network connection
7 External/EURO-AV SCART connection (for Europe only)
8 Composite Video Output Composite Video CVBS output
9 Audio (L) Output Audio (L) output
Audio (R) Output Audio (R) output
10 Audio (L) Output Audio (L) output for the detachable speaker (L)
Audio (R) Output Audio (R) output for the detachable speaker (R)
11 Line out Audio output for external speakers
9
DV301B
1 AC IN AC power in
2 AC Power AC power switch
3 D-Sub PC analog D-Sub input
4 PC - Audio PC Stereo input
5 DVI-D PC digital input
6 RS232 RS232 network connection
7 External/EURO-AV SCART connection (for Europe only)
8 Audio (L) Output Audio (L) output for the detachable speaker (L)
Audio (R) Output Audio (R) output for the detachable speaker (R)
9 Line out Audio output for external speakers
10
•
•
8
9
•
•
• • • • • • •
10
11
1 2 3 4 5 6 7
•
•
• • • • • • •
8
9
1 2 3 4 5 6 7
