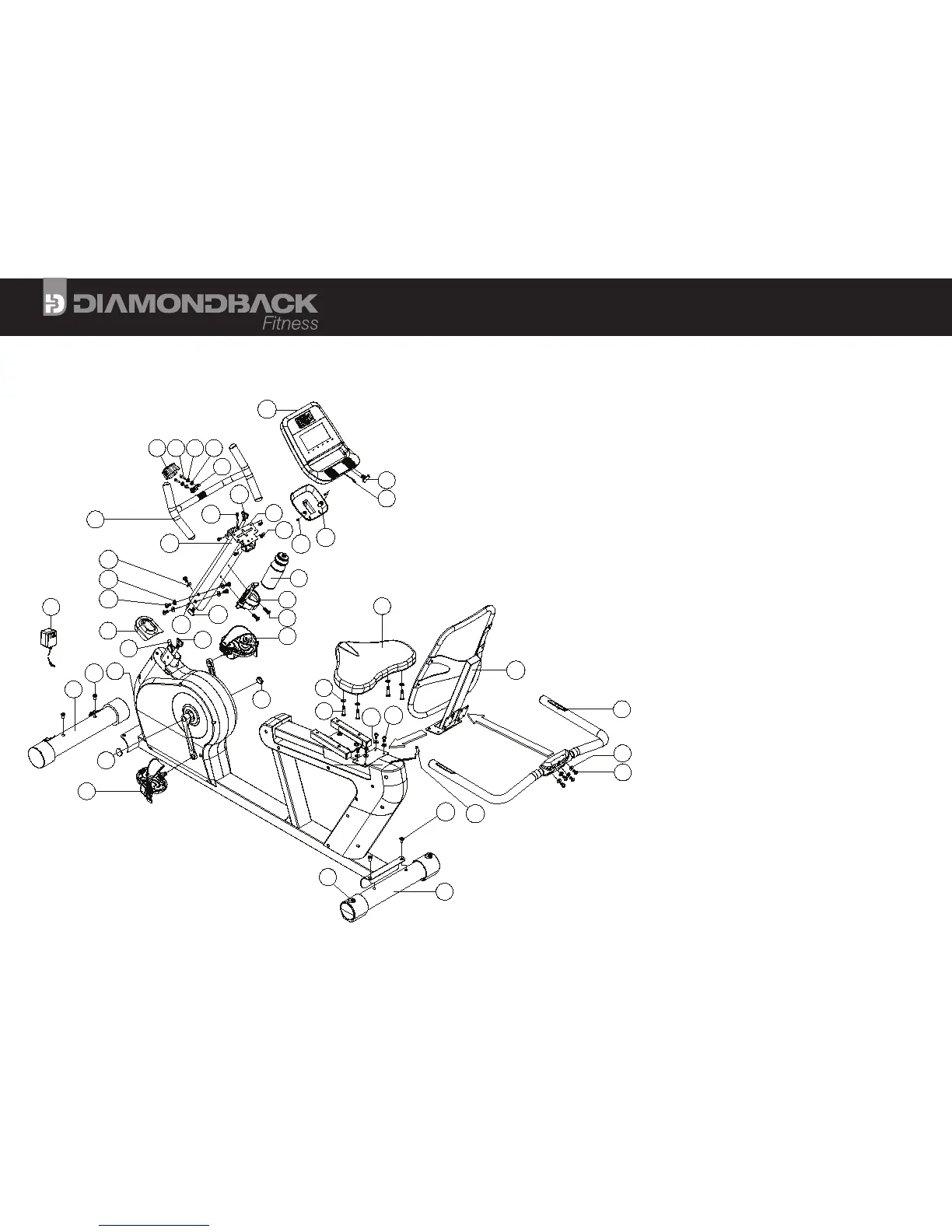

Diamondback APEX R8 - Assembly Instructions

Part Description
A ..........Front Stabilizer [Quantity 1]
B ..........Rear Stabilizer [1]
C ..........Hex Bolt - M8 x 1.25 x 16 mm (6 mm socket) [4]
D ..........Leveling Foot / End Cap [2]
E1 .........Pedal – Left [1]
E2 .........Pedal – Right [1]
F1 .........Flat Washer – 8.0 x 19.0 x 2.0 mm [4]
F2 .........Hex Bolt - M8 x 1.25 x 16 mm [4]
G ..........Seatback Assembly [1]
H1 .........Flat Washer – 8.0 x 19.0 x 2.0 mm [4]
H2 .........Hex Bolt - M8 x 1.25 x 16 mm [4]
J ..........Handlebar Assembly - Rear [1]
K1 . . . . . . . . .Flat Washer – 8.0 x 19.0 x 2.0 mm [4]
K2 . . . . . . . . .Hex Bolt – 8 x 1.25 x 45 mm (6 mm socket) [4]
L ..........Seat Base [1]
M..........Hex Screw – M5 x 0.8 x 12 mm (3 mm socket) [2]
N1 .........Water Bottle Cage [1]
N2 .........Water Bottle [1]
P . . . . . . . . . .Heart Rate Wire Harness – Lower; Connector 1 [1]
Q1 .........Heart Rate Wire Harness – Upper; Connector 1 [1]
Q2 .........Heart Rate Wire Harness – Upper; Connector 2 [1]
R ..........Wire Harness – Lower; Connector 1 [1]
S1 . . . . . . . . .Wire Harness – Upper; Connector 1 [1]
S2 . . . . . . . . .Wire Harness – Upper; Connector 2 [1]
T ..........Console Mast Assembly [1]
U1 .........Hex Bolt - M8 x 1.25 x 16 mm (6 mm socket) [5]
U2 .........Flat Washer – 8.0 x 19.0 x 2.0 mm [4]
U3 .........Curved Washer – 8.0 x 19.0 x 2.0 mm [1]
V ..........Handlebar Assembly - Front [1]
W1.........Handlebar Fixing Clamp [1]
W2.........Flat Washer – 7.0 x 12.0 x 1.0 mm [2]
W3.........Lock Washer – 7.0 x 8.0 x. 2.0 mm [2]
W4.........Hex Bolt – M7 x 1.0 x 30 mm [2]
W5.........Handlebar Clamp Cover [1]
X ..........Console [1]
Y ..........Wire Harness - Console [1]
Z ..........Heart Rate Wire Harness - Console [1]
AA .........Phillips Screw – M5 x .8 x 10 mm [4]
BB .........Console Tilt Hinge Cover [1]
CC .........Phillip Wood Screw – M4 x 10 mm [2]
DD .........AC Adaptor – US Plug; 120V, 60 Hz, 9V, 1A. [1]
EE .........Crank Caps [2]
FF .........Console Mast Cover [1]
GG .........Heart Rate Wire Pigtail [1]
HH .........Input Jack [1]
JJ .........Console Mounting Plate [1]
AA
Q
2
S
2
U1
C
N2
DD
G
L
F2
F1
J
H2
H1
W4
N1
M
W5
X
W3
W2
W1
V
T
Q
1
S1
A
P
R
FF
C
GG
B
E
1
EE
E
2
K1
K2
U2
U3
Z
Y
BB
CC
D
EE
HH
JJ
APEX R8 ASSEMBLY
6
