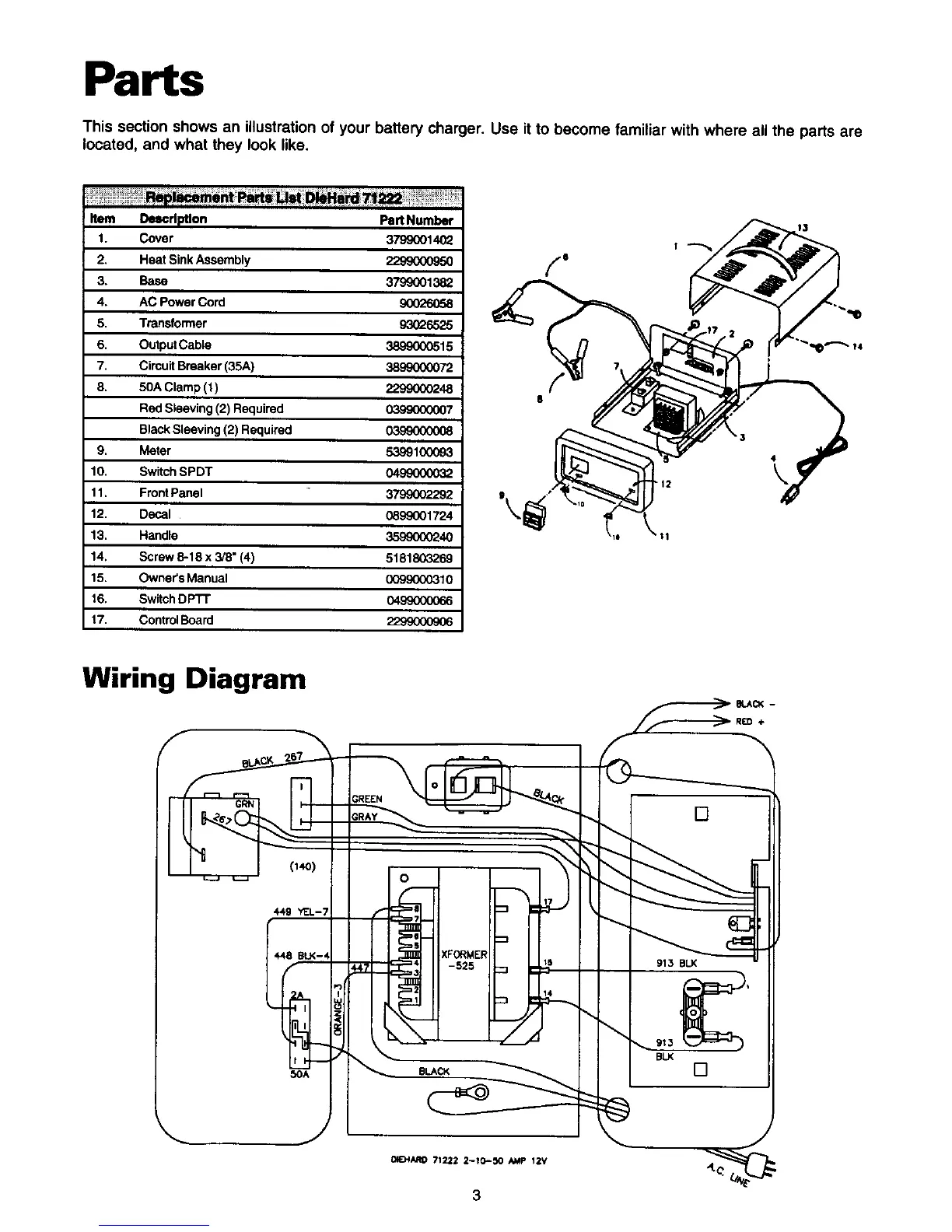

Parts
This section shows an illustration of your battery charger. Use it to become familiar with where all the parts are
located, and what they look like.
Item Deocdptlon Pert Number
1. Cover 3799001402
2, Heat Sink Assembly 2299000950
3. Base 3799001382
4. AC Power Cord 80026_
5. Transformer 930_6525
6. Output Cable 3899000515
7. Circuit Breaker (35A) 3899000072
8. 50A Clamp (1) 22990G0248
Red Sleeving (2) Required 0_99000007
Black Sleeving (2) Required 0399000008
9. Meter 5399100093
10. Switch SPDT 0499000032
11. Front Panel 3799002292
12, Decal 0899001724
13. Handle 3599000240
14. Screw 8-18 x 3/8" (4) 518180_269
15. OwneCs Manual 0099000310
16. Switch DPTT 0499000066
17. Control Board 22990009C6
3
\
Wiring Diagram
GREEN
04o)
BU<-,
I
50A
o ]
::_ XFORMER
-525
k _
3
