• 10 •

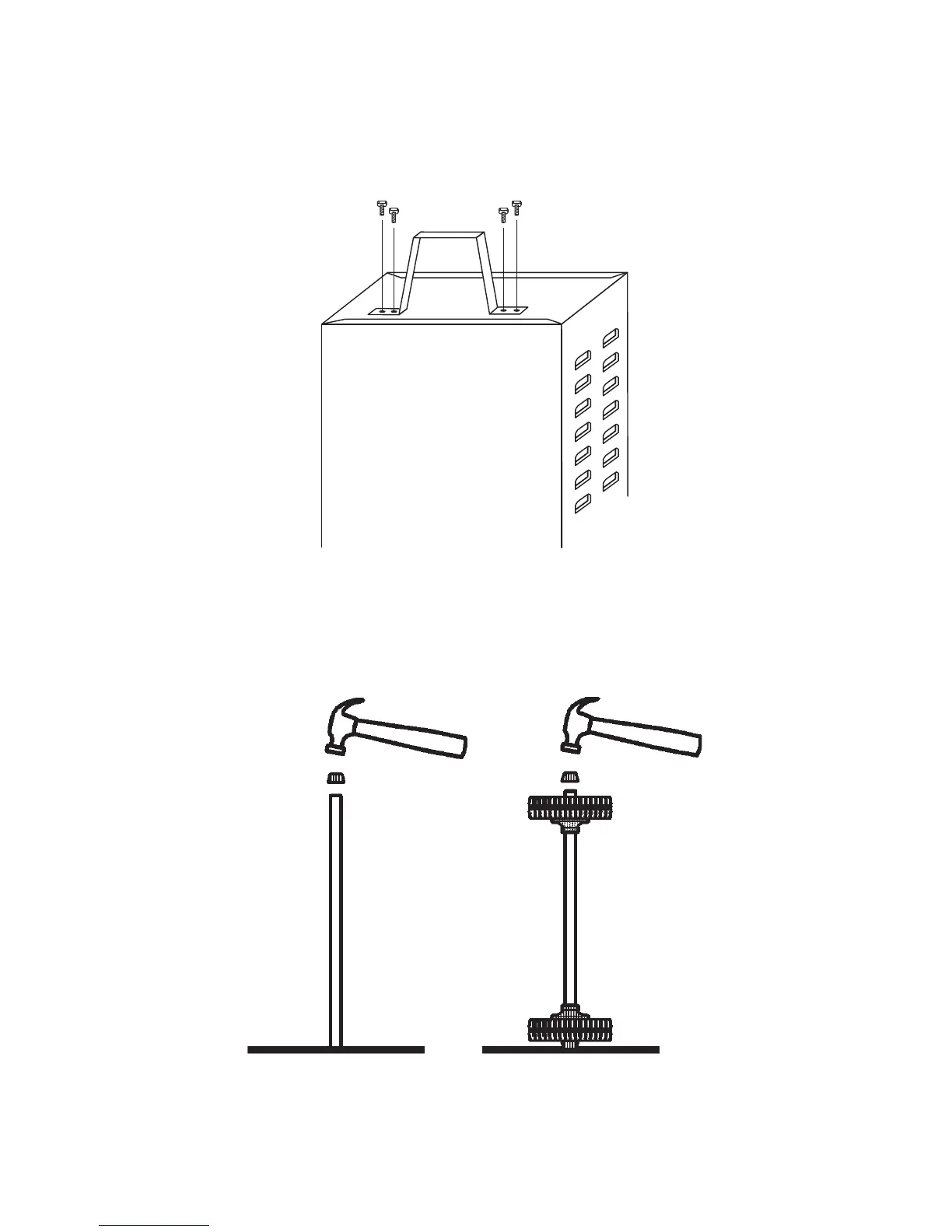

To attach the axle assembly:11.1
Remove charger from packing materials and place upside down on a at
surface. Attach mounting foot and secure with the four, 1/4-20 thread cut-
ting screws.
Hold axle upright on oor or work surface. Then, using a hammer, tap one 11.2
of the plastic axle caps onto the top end of the axle. Be sure to tap the
axle cap on straight. Slide both wheels onto the axle with the recessed
hubs facing out as shown. Install the second axle cap.
