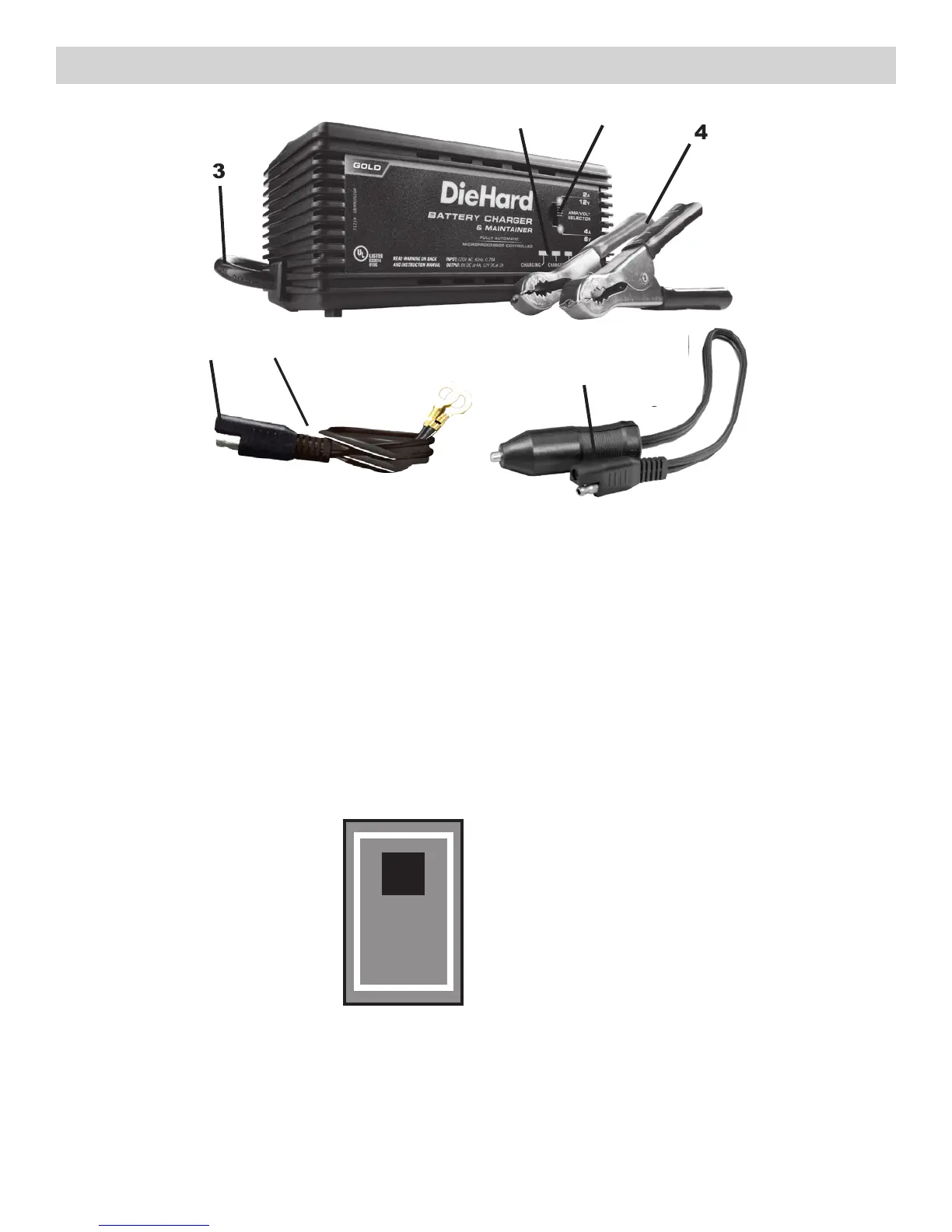

FEATURES/CONTROL PANEL 10.
Amp/Volt Selector Switch1.
Battery Status LEDs2.
AC Power cord 3.
Battery Clamp Cable Assembly4.
Ring Terminal Cable Assembly5.
12V Plug Cable Assembly6.
Charger Quick-Connect Cable7.
5
7
1
3
2
4
4
5
6
6
1
2
3
4
Amp/Volt Selector Switch10.1
2A, 12V
AMP/VOLT
SELECTOR
4A, 6V
LED Display10.2
CHECK BATTERY (red) LED lit: Indicates the battery is not properly
connected to the charger.
