Installation

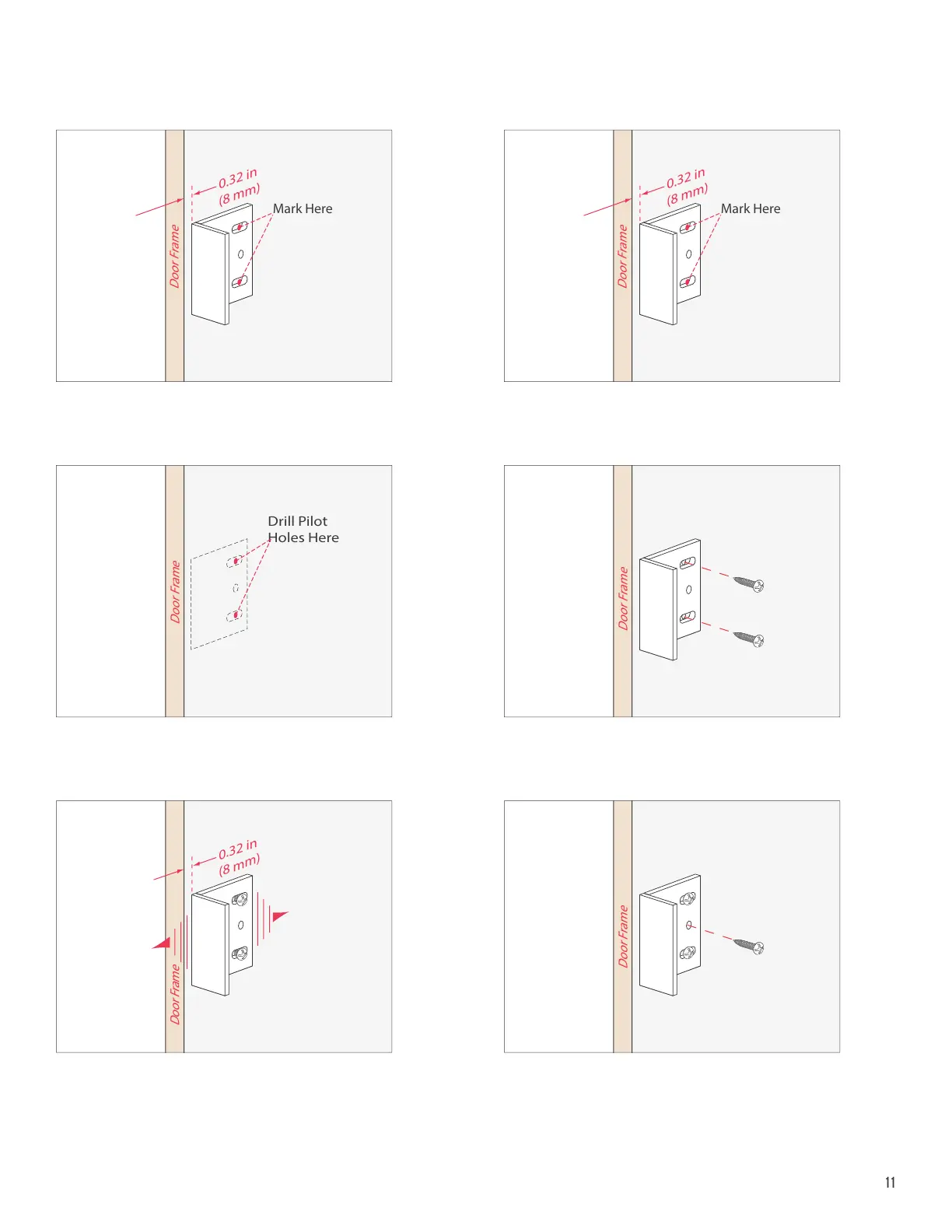

Position the strike plate on the door frame aligning it with
the center of the lock’s mounting holes.
Door Frame
0.32 in
(8 mm)
Mark Here
1
Drill 0.25" (6.35 mm) pilot holes using a 1/6" drill bit.
Door Frame
Drill Pilot
Holes Here
3
Adjust the strike plate to the proper position (.32" (8 mm)
from the door edge) then tighten the self tapping screws.
Door Frame
0.32 in
(8 mm)
5
Allow .32" (8 mm) from door edge and mark the position
of the adjustment slot holes.
Door Frame
0.32 in
(8 mm)
Mark Here
2
Position the strike plate and the self tapping screws into the
adjustment slot holes. Do not tighten the screws.
Door Frame
4
Position and tighten the remaining self tapping screw
into the center hole.
Door Frame
6
