Digilock numeris aspire - Surface Mount Installation; For door thickness measuring between.16 -.91 (4 mm - 23 mm); Required Components

4
For door thickness measuring between .16" - .91" (4 mm - 23 mm)

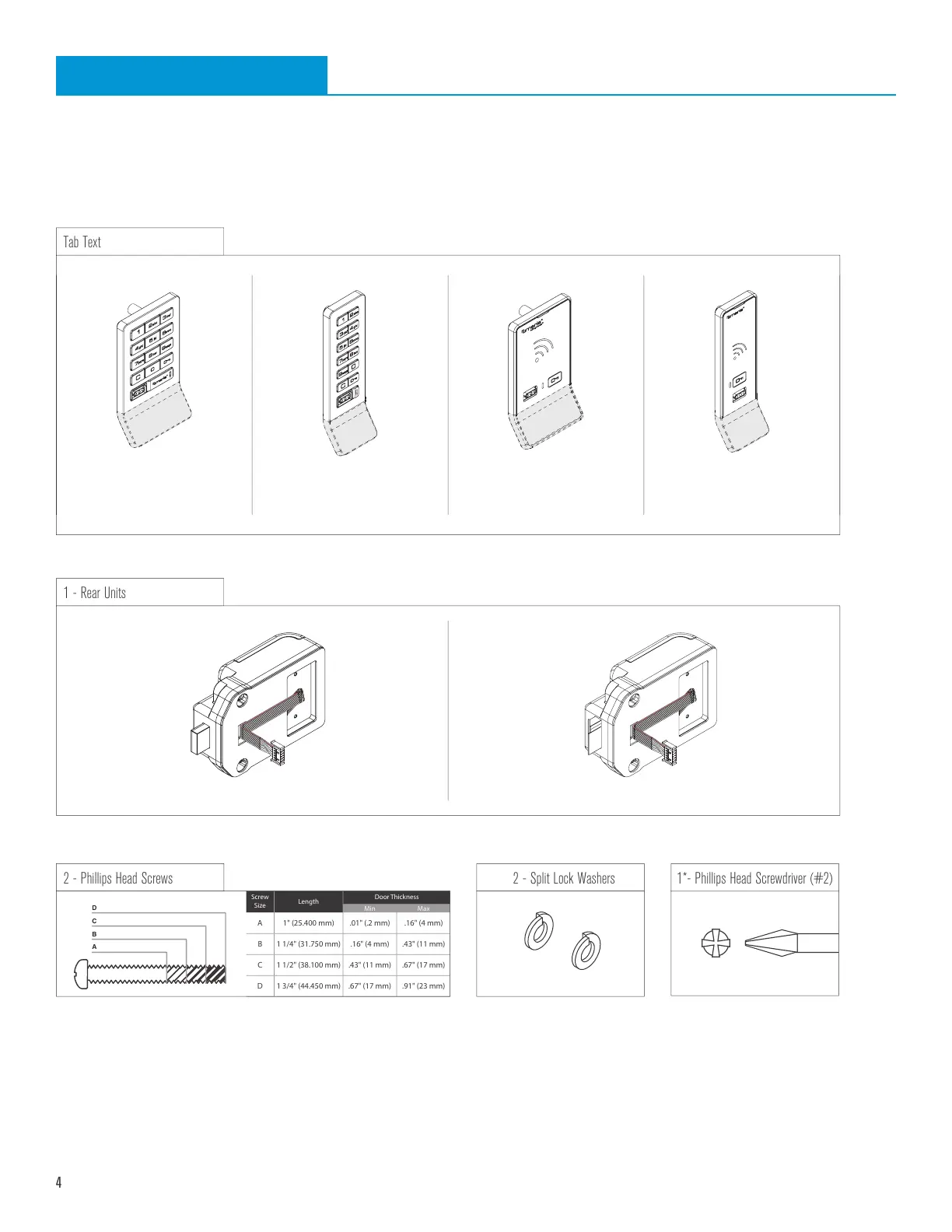

Required Components
1*- Phillips Head Screwdriver (#2)
*Not included
2 - Phillips Head Screws
D
C
B
A
Screw
Size
Length
Door Thickness
Min Max
A 1" (25.400 mm) .01" (.2 mm) .16" (4 mm)
B 1 1/4" (31.750 mm) .16" (4 mm) .43" (11 mm)
C 1 1/2" (38.100 mm) .43" (11 mm) .67" (17 mm)
D 1 3/4" (44.450 mm) .67" (17 mm) .91" (23 mm)
2 - Split Lock Washers
Surface Mount Installation
Tab Text
Standard Keypad
Vertical Body
Touch RFID
Vertical Body
Touch RFID
Standard Body
Standard Keypad
Standard Body
1 - Rear Units
Deadbolt - Cable Deadlatch - Cable
