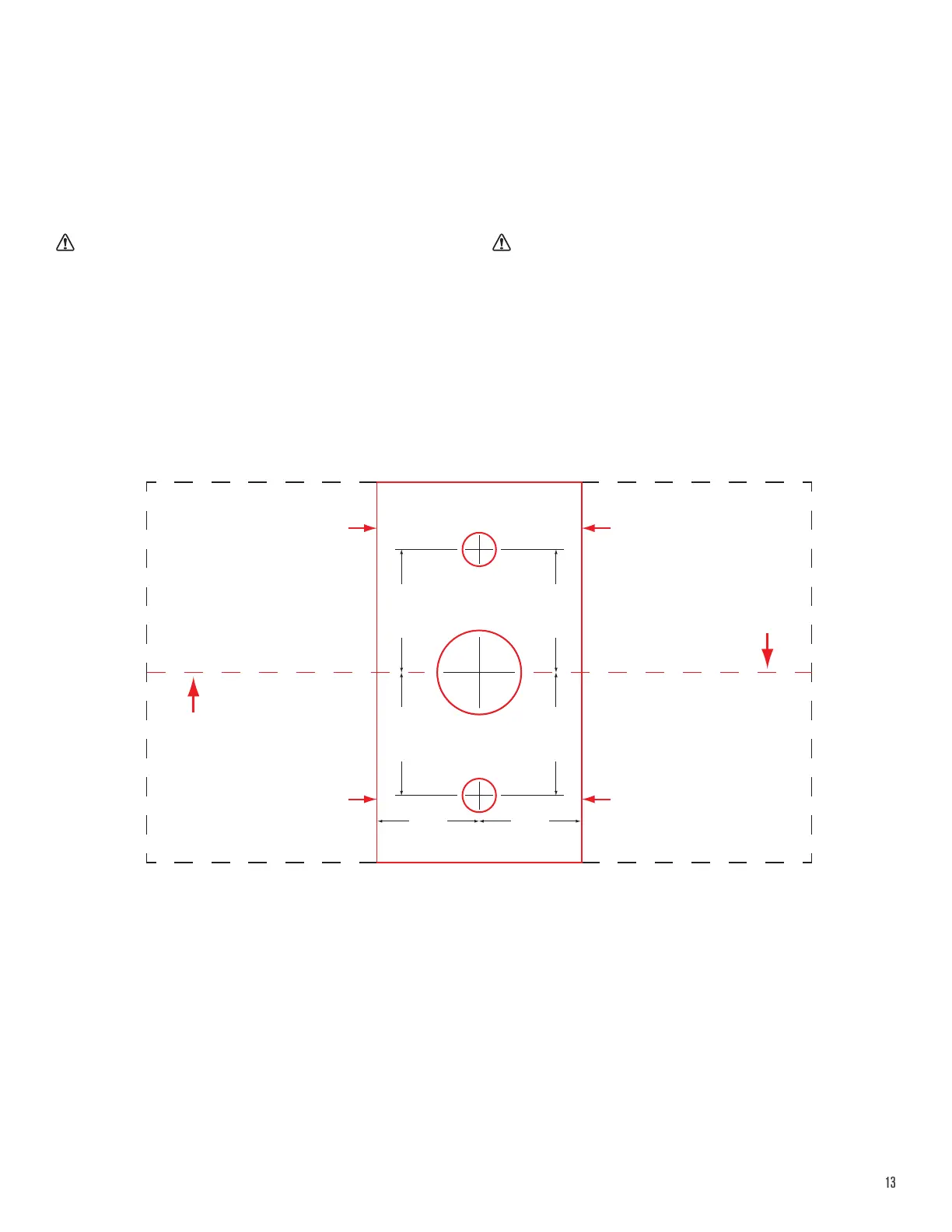

Template for Door Mounting Holes
Templates may not print to scale. Check all measurements before proceeding.
All measurements in thousandths
of an inch and millimeters
.300
7.62 (mm)
use 5/16" bit
.905
23 (mm)
.905
23 (mm)
.300
7.62 (mm)
.750
19.05 (mm)
use 3/4" bit
001.1
)mm( 9.72
001.1
)mm( 9.72
001.1
)mm( 9.72
001.1
)mm(9.72
ALIGN EDGE OF
STRIKE PLATE HERE
FOR LEFT
CLOSING DOOR
ALIGN EDGE OF
STRIKE PLATE HERE
FOR RIGHT
CLOSING DOOR
ALIGN EDGE OF
STRIKE PLATE HERE
FOR LEFT
CLOSING DOOR
ALIGN EDGE OF
STRIKE PLATE HERE
FOR RIGHT
CLOSING DOOR
CENTER LINE
CENTER LINE
Before printing, turn o auto scaling in printer setup and print at 100%
