DG-GS4628E2 / DG-GS4628HPE-P Installation Guide
5

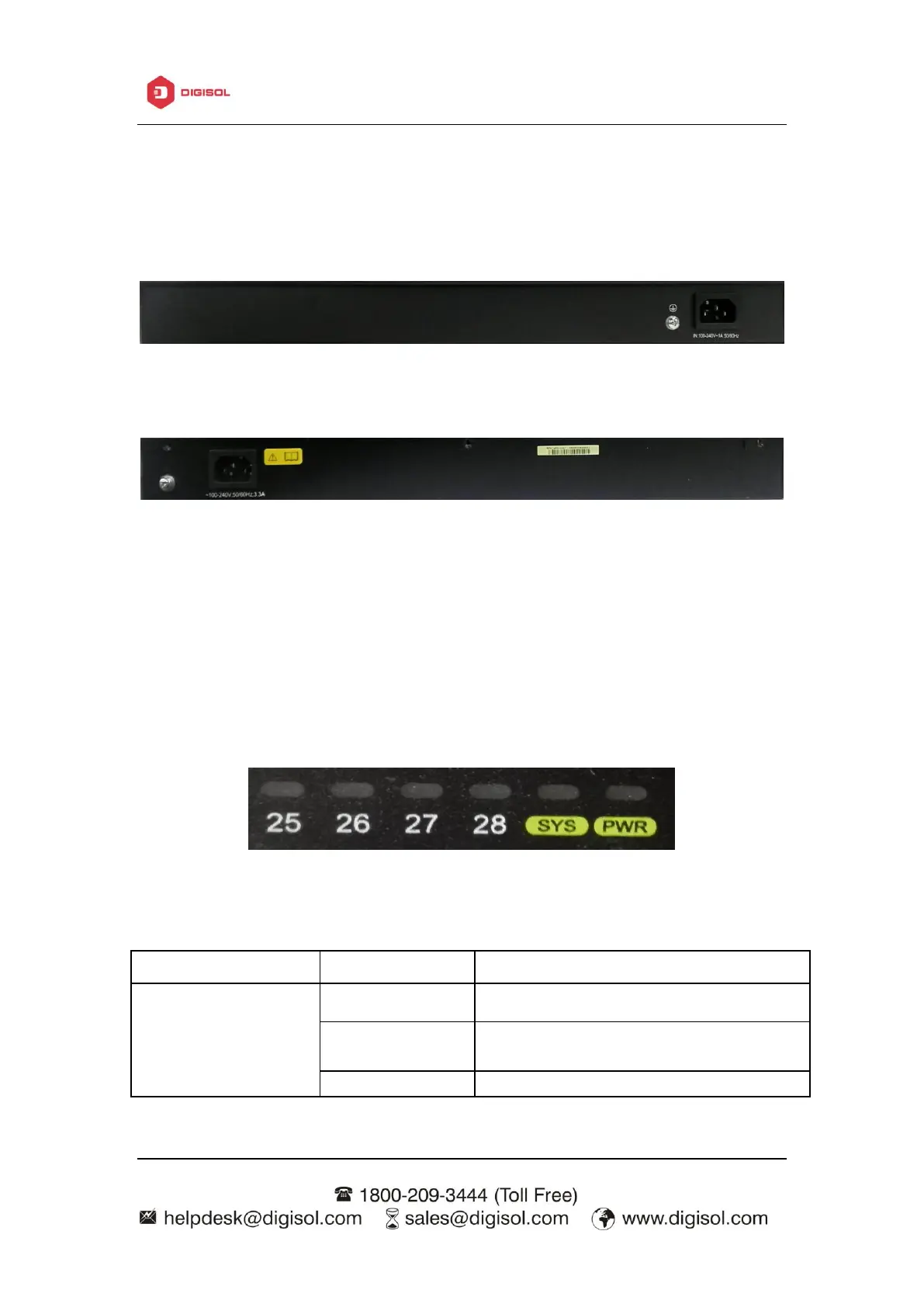

1.3.2 Back Panel
The back panel of DG-GS4628E2 is shown below:
Fig 1- 14 Back Panel of DG-GS4628E2
The back panel of DG-GS4628HPE-P is shown below, and there is 1 220V AC power
socket and 1 ground screw hole.
Fig 1- 16 Back Panel of DG-GS4628HPE-P
1.3.3 Status LEDs
DG-GS4628E2/DG-GS4628HPE-P switches include port indicator and system status
indicator, as shown in below and described in the following table.
1.3.3.1 Port Indicator Description
Fig 1- 19 DG-GS4628E2 LED diagram
Table 1- 2 DG-GS4628E2 port indicator description
Panel Symbol
Status
Description
Port1-24(Link/Act)
On (Green)
The port is linked successfully
Flash (Green)
The port is linked successfully, and
receive/send data
Off
The port is not link
