DG-GS4628E2 / DG-GS4628HPE-P Installation Guide
6
Port25-28(Link/Act)
On (Green)
SFP port is linked successfully
Flash (Green)
SFP port is linked successfully, and
receive/send data
Off
SFP port is not link

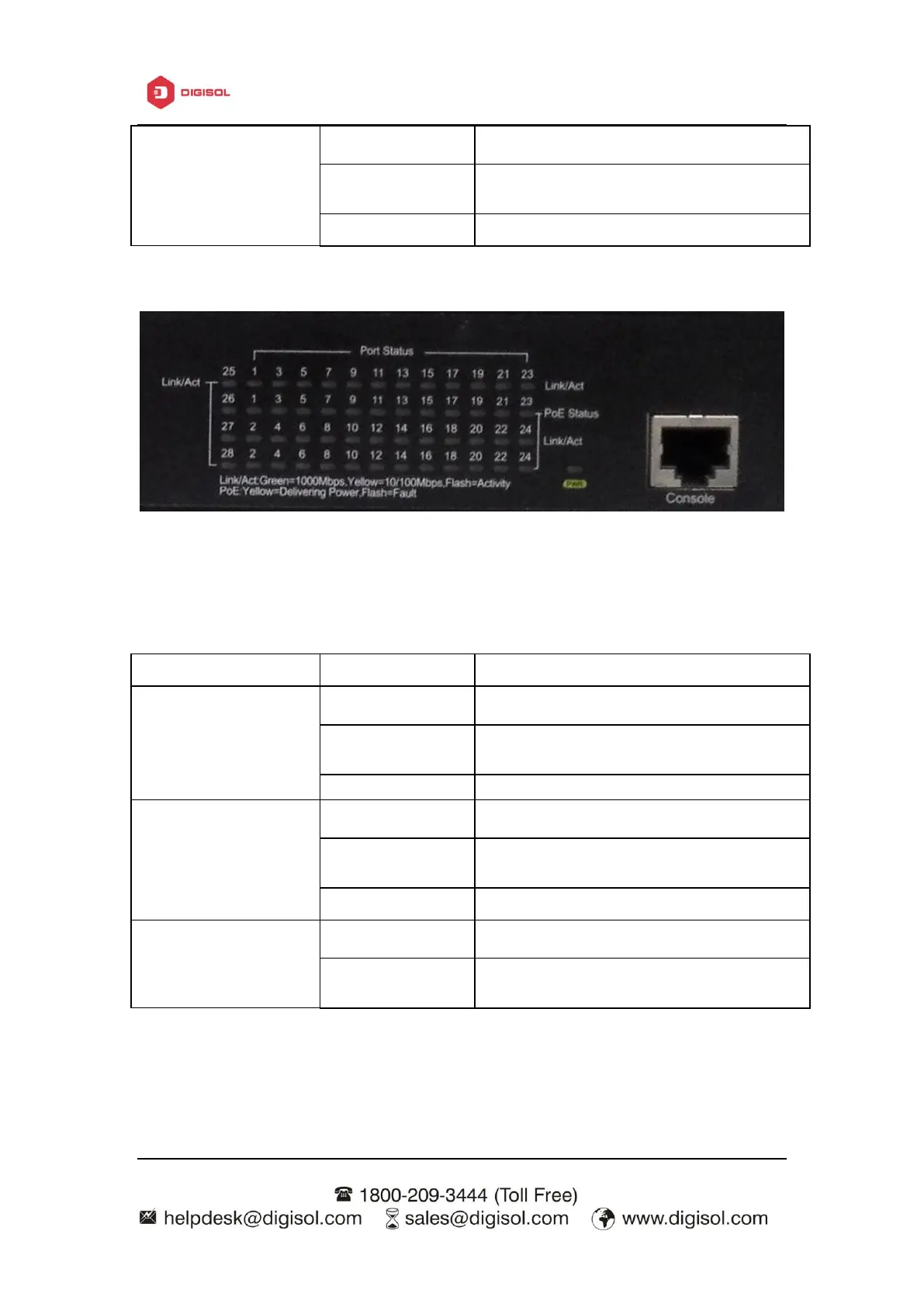

Fig 1- 21 DG-GS4628HPE-P LED diagram
Table 1- 4 DG-GS4628HPE-P port indicator description
Panel Symbol
Status
Description
Port1-24(Link/Act)
On (Green)
The port is linked successfully or PD
connected successfully
Flash (Green)
The port is linked successfully, and
receive/send data
Off
The port is not link and PD not connected
Port25/26/27/28(Link/A
ct)
On (Green)
SFP port is linked successfully
Flash (Green)
SFP port is linked successfully, and
receive/send data
Off
SFP port is not link
1.3.3.2 System Status Indicator Description
Fig 1- 25 DG-GS4628E2 system LED diagram
