Digisol DG-GS4900SE Series User Manual

DG-GS4900SE Series Installation Guide
20
2.3.2 Connecting Console
DG-GS4900SE series provides a Mini-USB serial console port.

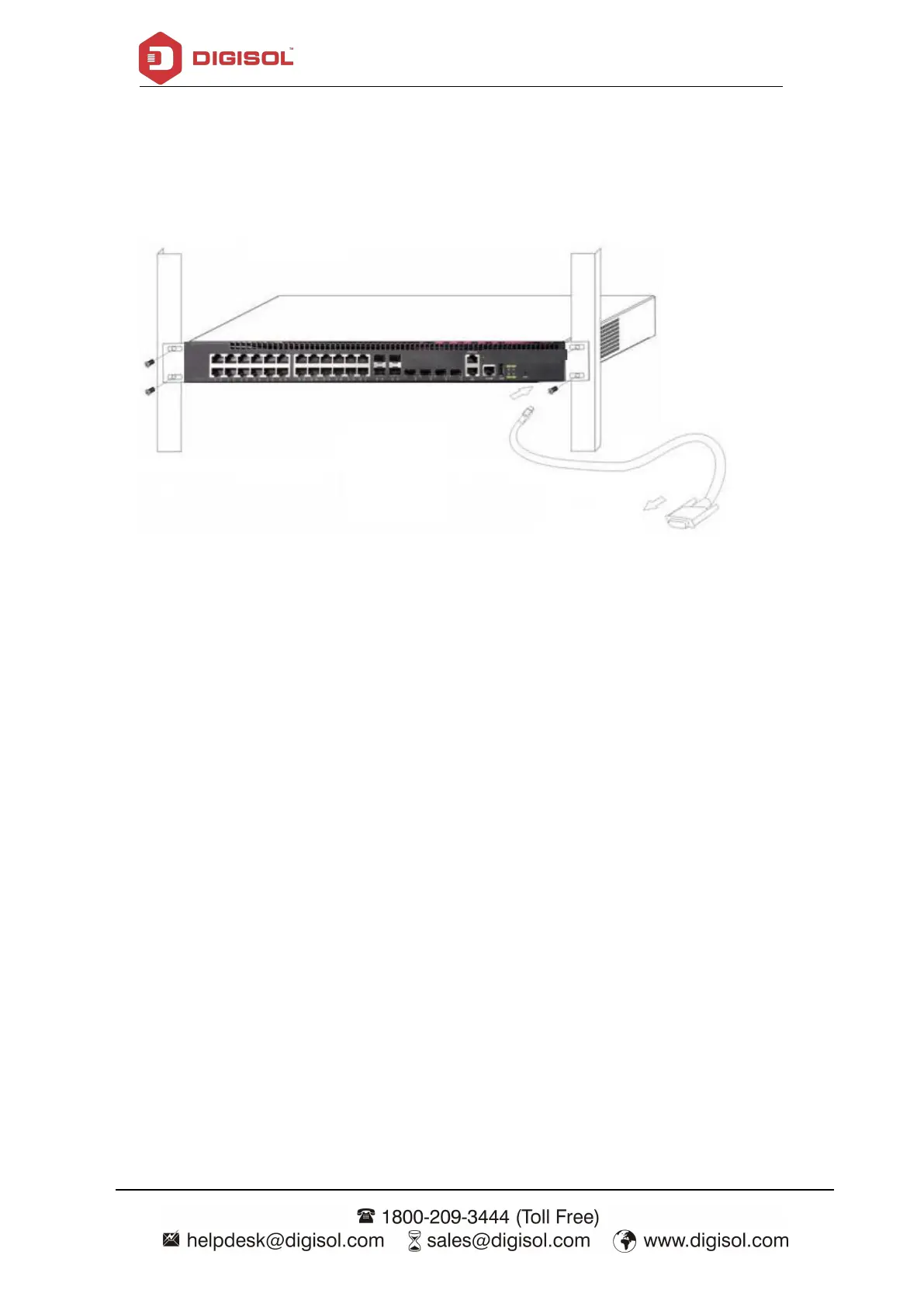

Fig 2- 2 Connecting Console to switch
The connection procedure is shown below:
1. Find the console cable provided in the accessory kit. Attach the Mini-USB end to
console port of the switch.
2. Connect the other side of the console cable to a character terminal (PC).
3. Power on the switch and the character terminal. Configure the switch through the
character terminal.
2.3.3 SFP Transceiver Installation
DG-GS4900SE series provide multiple 1000Mb SFP transceiver slots.
The procedure for installing SFP transceiver is shown below:
Step 1: Put on a ESD wrist strap (or antistatic gloves).
Step 2: Insert SFP transceiver to the guide rail inside the fiber interface line card. Do not
put the SFP transceiver up-side-down.
