1.4 Description of Hardware
1.4.1 Front Panel
DG-GS4928SE Ethernet switches provide 20 100/1000Base-TXauto negotiation
ehternet ports, 4 1000Mb Combo ports, 4 10Gb optical ports, 4 function LEDs, 1 network
management port, 1 alarm port, 1 USB interface, 1 mode button and 1 Console port.

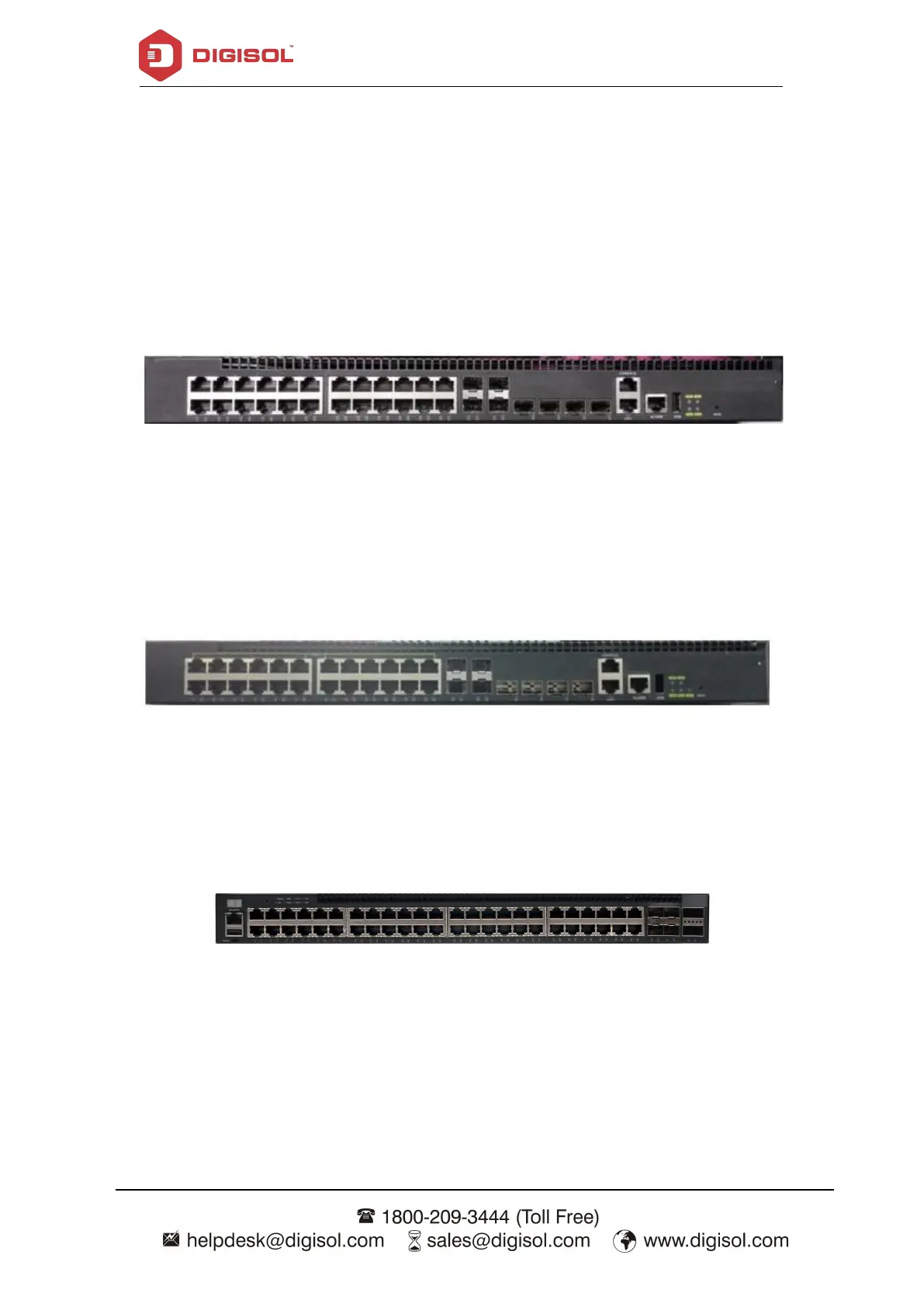

Fig 1- 1 Front Panel of DG-GS4928SE
DG-GS4928HPSE2 Ethernet switches provide 20 100/1000Base-TXauto negotiation
ehternet ports, 4 1000Mb Combo ports, 4 10Gb optical ports, 5 function LEDs, 1 network
management port, 1 alarm port, 1 USB interface, 1 mode button and 1 Console port.
Fig 1- 2 Front Panel of DG-GS4928HPSE2
DG-GS4952SE Ethernet switches provide 48 100/1000Base-TXauto negotiation
ehternet ports, 4 10Gb optical ports,, 1 network management port, 1 alarm port, 1 USB
interface, 1 mode button and 1 Console port.
Fig 1- 3 Front Panel of DG-GS4952SE
DG-GS4952HPSE Ethernet switches provide 48 100/1000Base-TX (PoE) auto
negotiation ehternet ports, 4 10Gb optical ports, 1 network management port, 1 alarm port,
1 USB interface, 1 mode button and 1 Console port.
