DIGITALas DD-5100 - Page 15

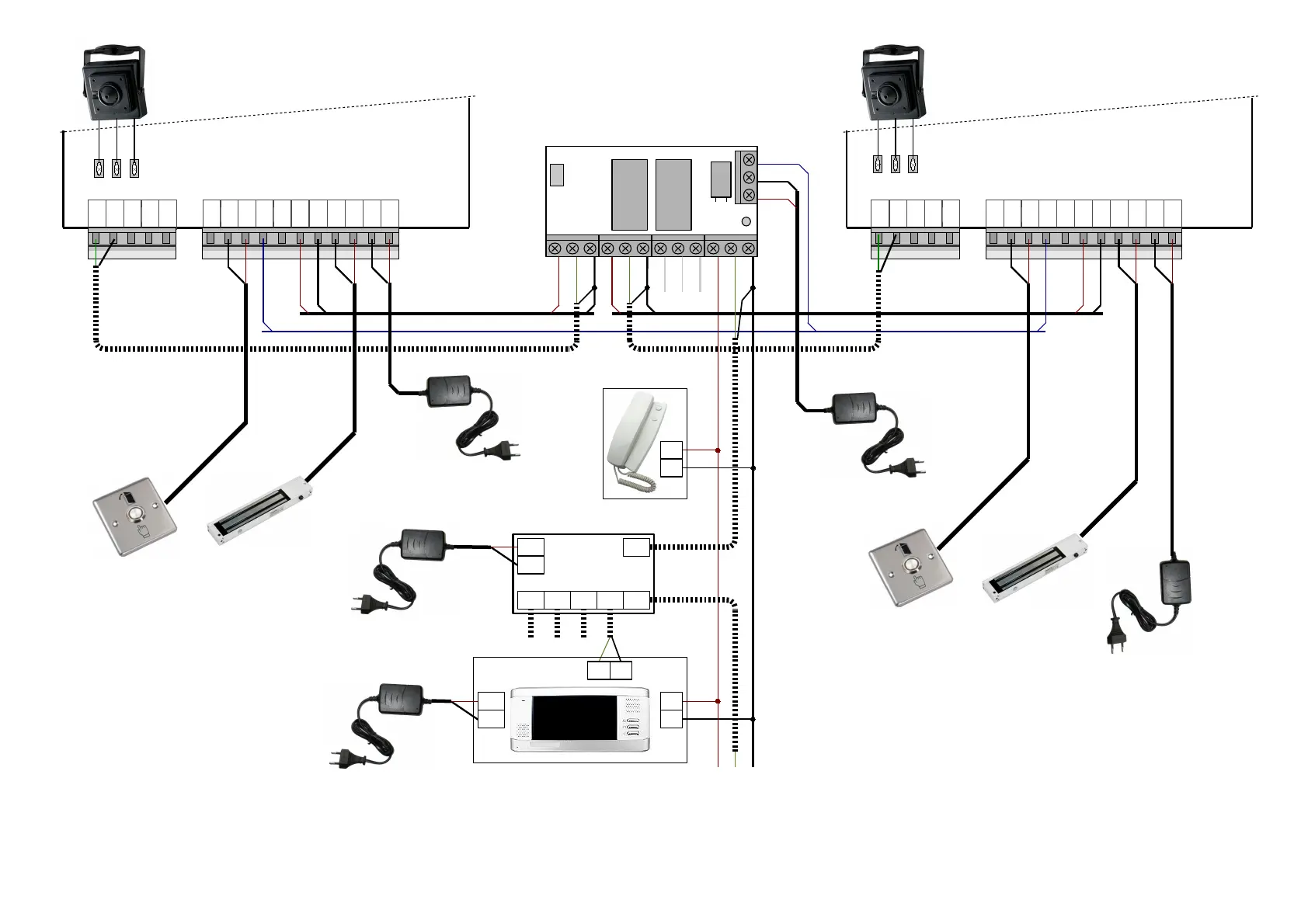

Fig. 9: Wiring diagram for up to three DD-5100 call modules with video interconnection, NET configuration disabled
Audio / Video Line
Handsets / Monitors
LED1
BUS
L1
GND
GND
12V
L2
GND
L3
GND
LOUT
GND
LG
C
L-
L+
Door Unlock Button
DDSV1
C1
C2 C3
COUT
L
CG
Video splitter
VD-1x5
VIN
VO5
Power Supply
(12VDC 1,5A)
Power Supply
(12VDC 1,5A)
Power Supply
(12VDC 0,5A)
VO1 VO2 VO3 VO4
12V
GND
Power Supply
(12VDC 0,3A)
Monitor
Power Supply
V+
GND
L-IN
LINE
LGND
LC-
LC+
GND
P12V
UNL
GND
ILMN
BUS
D1 D0
CPW
GND CAM
1-st DD-5100 with network
Configuration disabled
L-IN
LINE
LGND
LC-
LC+
GND
P12V
UNL
GND
ILMN
BUS
D1 D0
CPW
GND CAM
2-nd DD-5100 with network
Configuration disabled
Door Unlock Button
Electric Lock / Electromagnet
Electric Lock / Electromagnet
