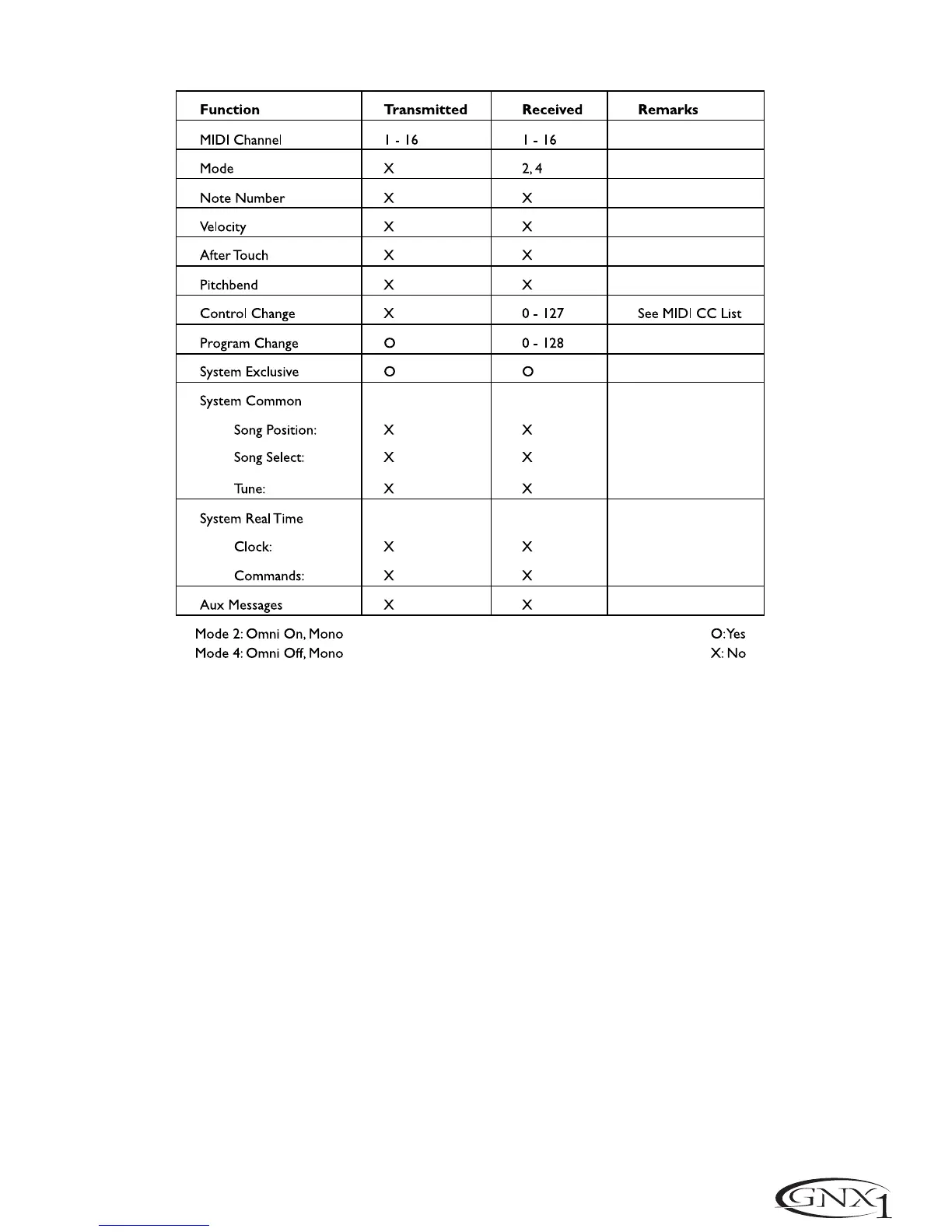

MIDI Implementation
Specifications
A/D Converter: 24 bit
D/A Converter: 24 bit
Sampling Frequency: 44.1 kHz
DSP Section:
Dual Audio DNA™ DSP architecture
Connections:
Guitar Input and Outputs: 1/4" TS
Jam-A-Long/Learn-A-Lick: 1/8" Stereo TRS
Headphone: 1/4" Stereo TRS
MIDI: In and Out/Thru
General:
Frequency Response: 20 Hz.– 20 kHz. +0,-3 dB
S/N ratio: Greater than 95 dB;ref = max signal,22kHz measurement bandwidth.
To tal Harmonic Distortion: Less than 0.04% (1kHz).
Memory Capacity: 48 Factory Presets, 48 User Presets
Power Requirements:
US and Canada: 120 VAC,60 Hz Adapter:PS0913B
Japan: 100 VAC, 50/60 Hz Adapter:PS0913-100
Europe: 230 VAC,50 Hz Adapter:PS0913CE-230
UK: 240 VAC,50 Hz Adapter:PS0913-240B
Power Consumption: 15 watts
Dimensions: Length 14.5" Width 9" Height 3"
Unit Weight: 6.4 lbs.
41
SECTION SIX - APPENDIX
