Note- Dual Engine effect configurations are used in configurations 2-5. If a dual-engine effect configuration is currently in use, successive
presses of the <Engine A/B> button will toggle between Engines A and B.
2.
Now turn the <Program/Data>
wheel to select the effect to be used. The selected effect’s name will change as new effects are selected. • EFFECT PREVIEW
At this point, the S-200 has a <Preview> button that will allow you to instantly hear any one of the effects
in the S-200. When you have an effect that you wish to audition, press the <Preview> button and the S-200 will play a brief

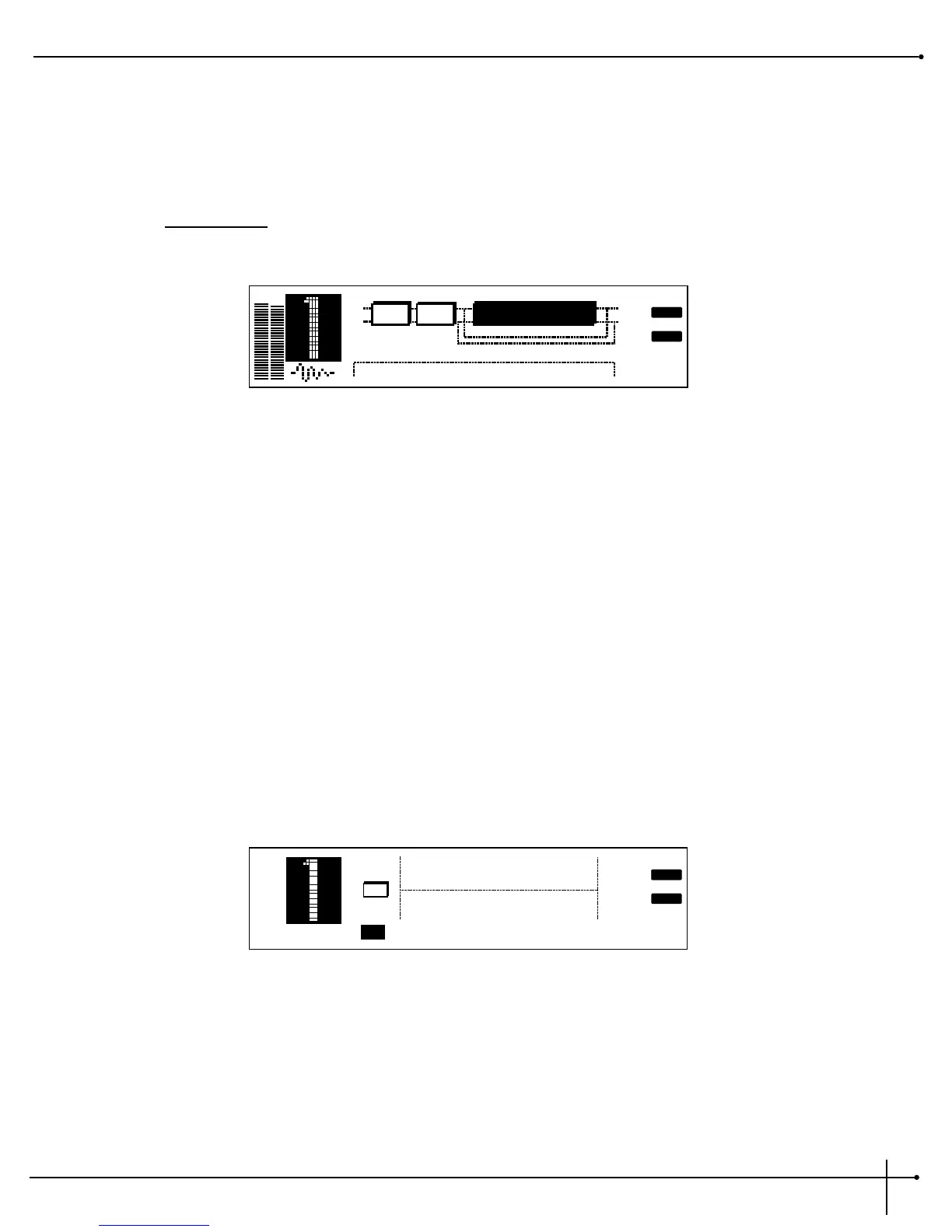

sample and the display will appear as follows:
3. Once the effect to be used has been selected, you can use the <Parameter 1-4> edit buttons (Which are located directly below the cor-
responding available parameters names) to select and modify the parameters of the selected effect by pressing the desired parameter
button and then turning the <Program/Data> wheel to change the parameter values.
For a complete list of the Effects available in the S-200 and their respective parameters, please see Section 3 on pages 11-14.
4. Once all of the edits have been made to the selected program, make sure to store any changes.
EQ and Noise Gate Adjustments
This editing function allows you to make EQ and Noise Gate modifications to each program. The procedure for both is as follows:
Adjusting the EQ
The S-200 offers a three band EQ with Low Shelf (200Hz) EQ Frequency, Parametric Frequency, Parametric Level and Hi Shelf (3 kHz) EQ
Frequency parameters. To adjust any one of these four, perform the following procedure:
1. From Program mode, press the <EQ/Gate> button once and the display will appear something like this:
2.
Now to make adjustments to the four different EQ parameters use the <Parameter 1-4> buttons and the <Program/Data>
wheel.Parameter and value range for each is listed below.
Parameter 1 - Low Shelf EQ Frequency (200Hz) - Range for the Low EQ is from -12 to +12 dB.
Parameter 2 - Parametric Frequency - Range for the Parametric Frequency is from 25Hz to 20.0Khz.
Parameter 3 - Parametric Level - Range for the Parametric Level is from -12 to +12 dB.
Parameter 4 - High Shelf EQ Frequency (3kHz) - Range for the High EQ is from -12 to +12 dB.
