DigiTech TRIO Band Creator User Manual

8

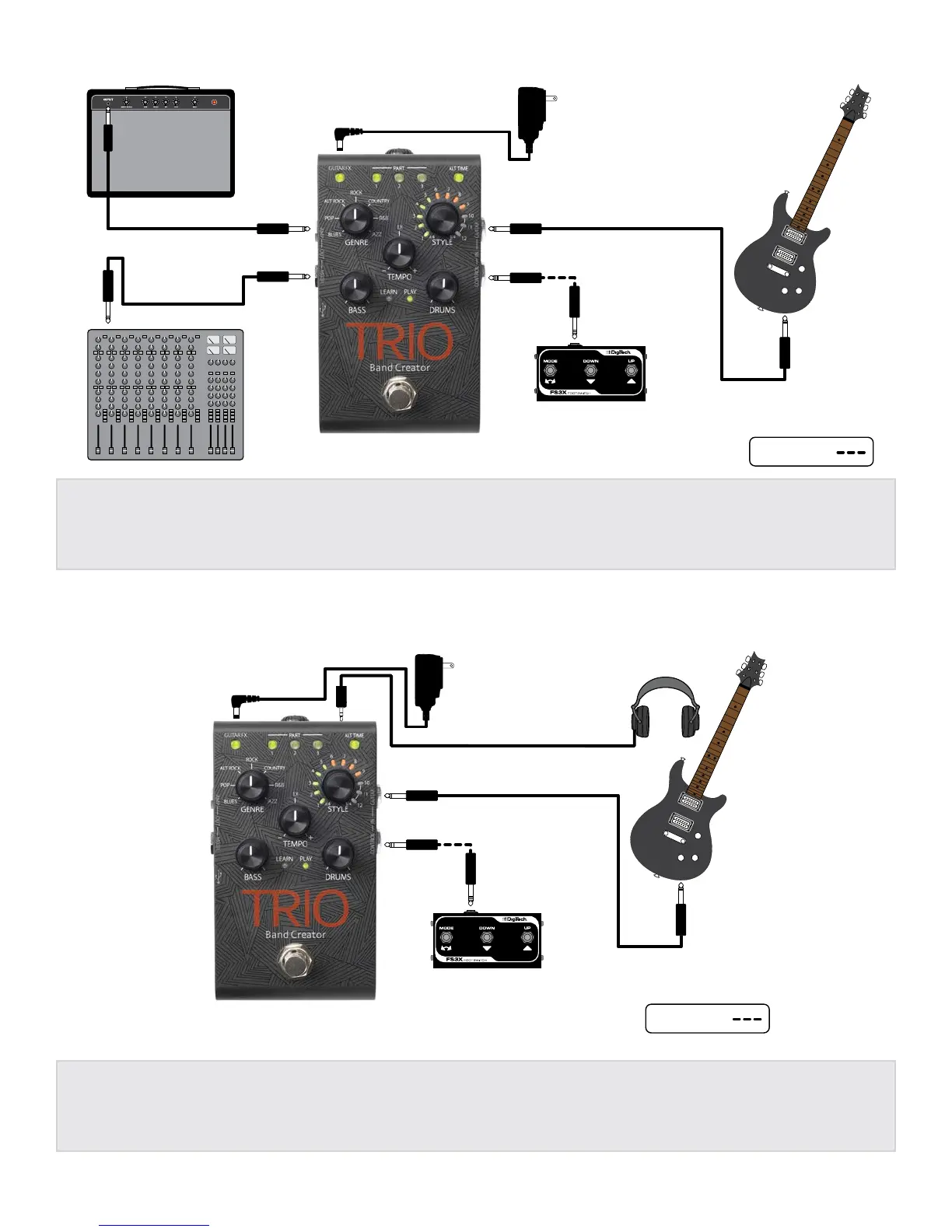

Amplifier + Mixer Setup
Harman
PS0913DC (9VDC)
Power Supply
IN
IN
IN
OUT
OUT
FS3X Footswitch
OUT
TRS CABLE
Optional
Use only unbalanced TS instrument cables for audio connections.
Mixer
Amp
NOTE: When connected to both the MIXER and AMP OUT jacks, the guitar signal will be fed to the AMP
output and the bass and drum parts will be fed to the MIXER output. See 'Output Jack Operation' on page
9 for more information.
Practice Setup
Harman
PS0913DC (9VDC)
Power Supply
Headphones
IN
FS3X Footswitch
OUT
TRS CABLE
Optional
Use only unbalanced TS instrument cables for audio connections.
NOTE: When the HEADPHONE OUT jack is used, AMP and MIXER outputs will be muted. The signal present
in the headphones will be stereo and speaker cabinet emulation will be applied to the guitar signal. See
'Output Jack Operation' on page 9 for more information.

DigiTech TRIO Band Creator Specifications

General

Technology	Digital
Outputs	1 x 1/4" (amp), 1 x 1/4" (mixer)
Power Source	9V DC power supply (included)
Type	Band Creator
Inputs	1 x 1/4" (instrument)
Controls	Genre, Style, Tempo, Level
Genres	Rock, Blues, Country, Metal, Jazz, Pop
Styles per Genre	12
Features	adjustable tempo
