Now that we better understand all the aspects and properties of
Reverb, the Parameters of the Reverb modules are as follows:
Reverb On / Off.............Turns the Module on or off.
ER Predelay ..................Controls the length of time before the early
reflections are heard. Ranges in milliseconds
from 0 to 100. (ER settings in BigVerb only.)
ER Spread.....................Controls the length of time over which the
early reflections occur. Low settings yield a
dense, smooth cluster of early reflections
while higher settings spread the same number
of reflections out over a longer period of time.
Ranges from 25 to 300 milliseconds. (ER set-
tings in BigVerb only).
ER Shape ......................Controls the shape of the early reflection
envelope. There are 10 different early reflec-

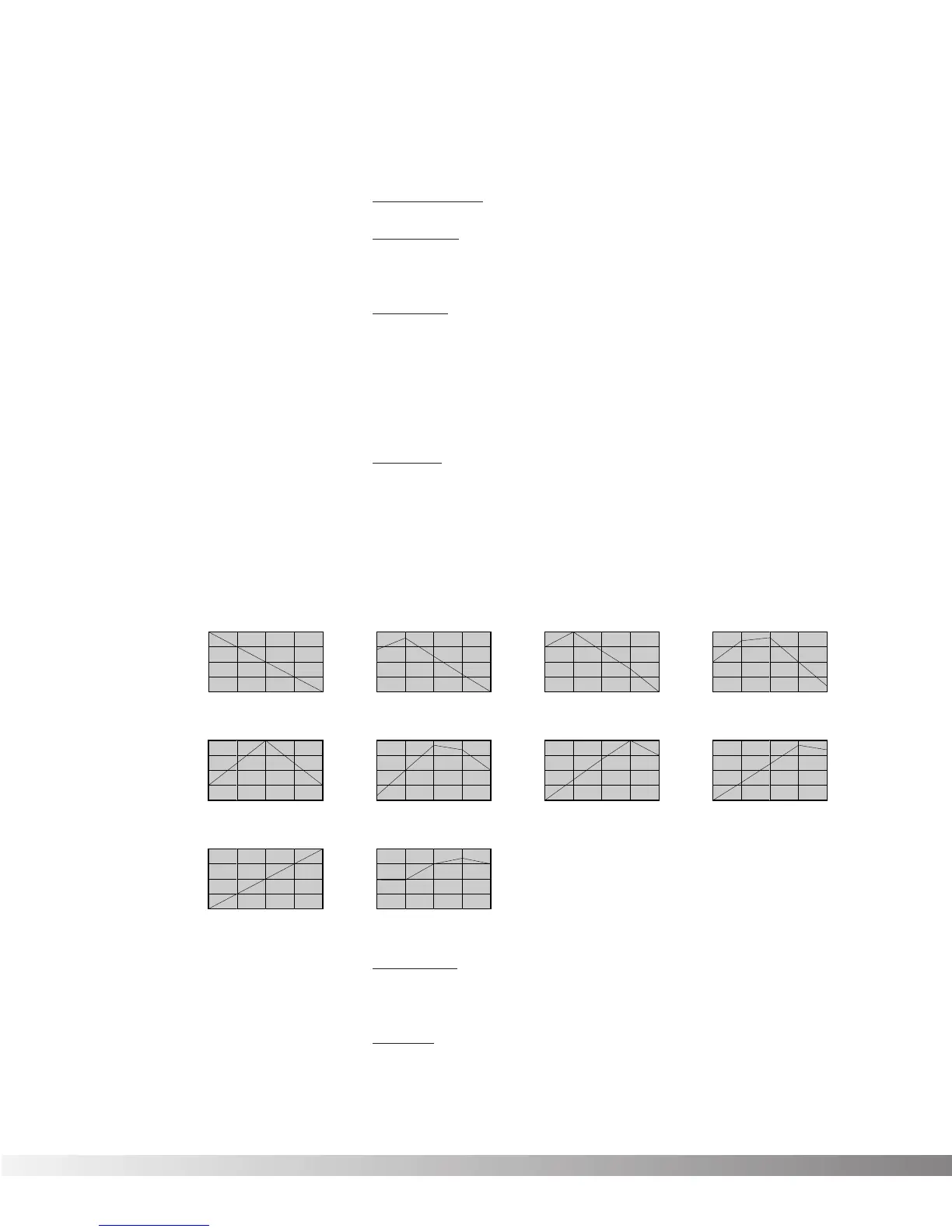

tion envelope shapes. The following diagram
shows all the available early reflection enve-
lope shapes. The numbers across the top of
each envelope shape graph represent the rel-
ative level of the signal at each point in the
envelope. (ER settings in BigVerb only.)
ER Diffusion
...................Controls the smoothness of the early reflec-
tions. Ranges from 1 to 10. (ER settings in
BigVerb only.)
ER Level ........................Master level control for early reflections.
Ranges from 0 to 100. (ER settings in
BigVerb only.)
-20 dB
0 dB
TIME
AMPLITUDE IN dB
SHAPE = 1
-5 dB
-10 dB
-15 dB
-20 dB0 dB -5 dB -10 dB -15 dB
-20 dB
0 dB
TIME
AMPLITUDE IN dB
SHAPE = 2
-5 dB
-10 dB
-15 dB
-20 dB-3 dB -2 dB -8 dB -14 dB
-20 dB
0 dB
TIME
AMPLITUDE IN dB
SHAPE = 3
-5 dB
-10 dB
-15 dB
-20 dB-5 dB 0 dB -6.6 dB -13.3 dB
-20 dB
0 dB
TIME
AMPLITUDE IN dB
SHAPE = 4
-5 dB
-10 dB
-15 dB
-18 dB-10 dB -3 dB -2 dB -10 dB
-20 dB
0 dB
TIME
AMPLITUDE IN dB
SHAPE = 5
-5 dB
-10 dB
-15 dB
-15 dB-15 dB -7.5 dB 0 dB -7.5 dB
-20 dB
0 dB
TIME
AMPLITUDE IN dB
SHAPE = 6
-5 dB
-10 dB
-15 dB
-10 dB-18 dB -10 dB -2 dB -3 dB
-20 dB
0 dB
TIME
AMPLITUDE IN dB
SHAPE = 7
-5 dB
-10 dB
-15 dB
-5 dB-20 dB -13.3 dB -6.6 dB 0 dB
-20 dB
0 dB
TIME
AMPLITUDE IN dB
SHAPE = 8
-5 dB
-10 dB
-15 dB
-3 dB-20 dB -14 dB -8 dB -2 dB
-20 dB
0 dB
TIME
AMPLITUDE IN dB
SHAPE = 10
-5 dB
-10 dB
-15 dB
-5 dB-10 dB -10 dB -5 dB -3 dB
-20 dB
0 dB
TIME
AMPLITUDE IN dB
SHAPE = 9
-5 dB
-10 dB
-15 dB
0 dB-20 dB -15 dB -10 dB -5 dB
