DigiTech VOCAL 300 User Manual

Effects and Parameters

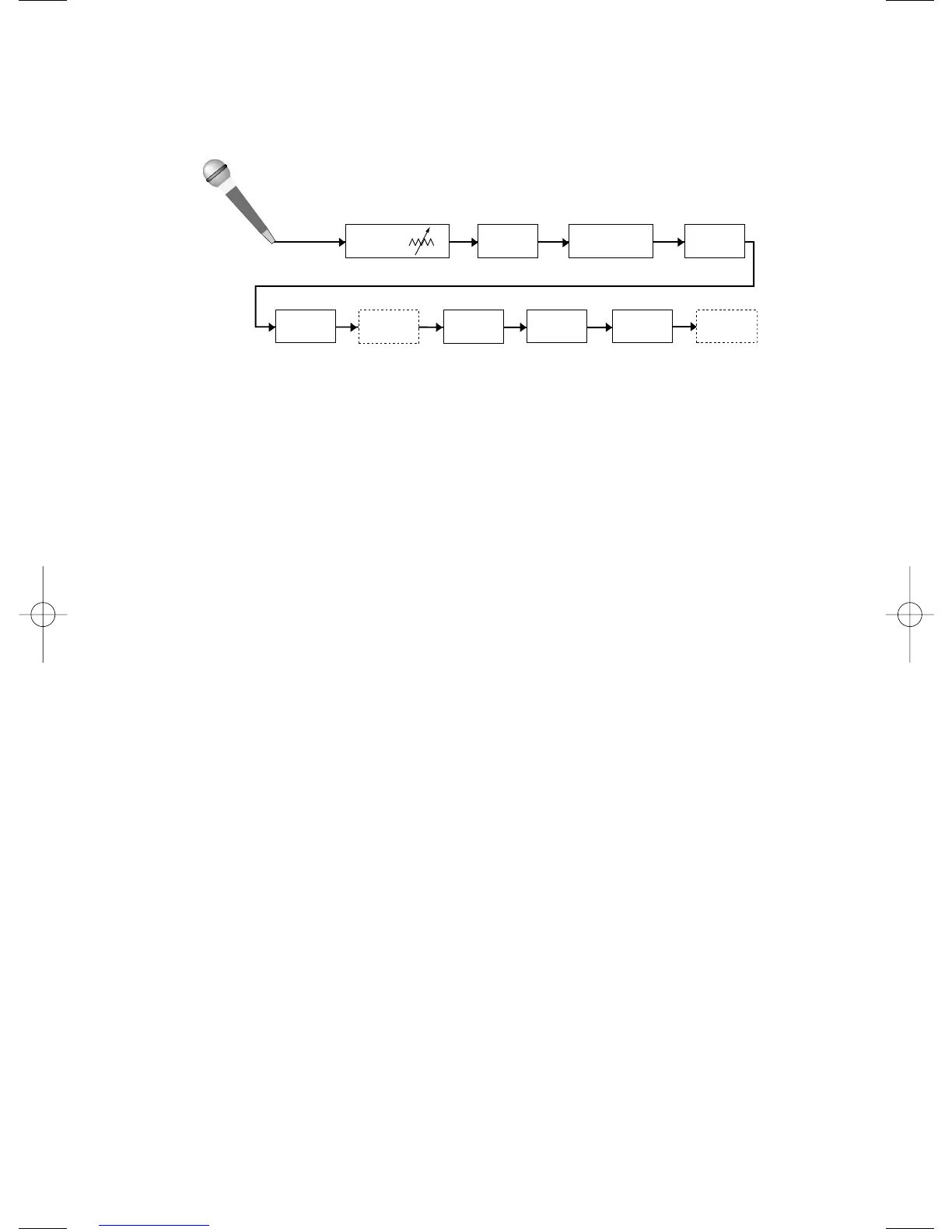

Signal Path
Compressor
The compressor module is used to control the dynamics of varying signal
strengths.
On/Off - Rotate the LOW knob to turn the effect on and off.
Type - Rotate the MIDRANGE knob to select the type of compression to be
used,Low,Medium or High.
Gain - Rotate the MIDRANGE knob to increase the compressor’s output gain.
Mic Pre/Voice
This module selects various mic preamp and voice character types. Tube Pre is a
warm professional mic preamp type for standard vocal usage. Overdrive and
Grunge are cutting edge distortion preamp types. The other 9 voice characters
produce wild and unnatural vocal sounds.
Voice - Rotate the LOW knob to select a vocal character. Voice types are:Tube
Pre,Overdrive, Grunge, Dark Side, Monster, Chipmunk,Lunar,Lo-Fi,
Robot,Wizard,Alien,and Telephone.
Parameter 1 – Rotate the MIDRANGE knob to adjust the first parameter of
the Voice type selected.(see Voice Parameter chart following
these instructions)
Parameter 2 – Rotate the HIGH knob to adjust the second parameter of the
Voice type selected.(see Voice Parameter chart following these
instructions)
Level - Rotate the MASTER LEVEL knob to controls the preset level for the
selected model.
Voice Parameters
Character Param 1 Display Param 2 Display
Tube Pre Gain gain De-Esser de ess
Overdrive Gain gain De-Esser de ess
Input Level EqualizerMic Pre / Voice
Compressor
Noise Gate Effects Delay Reverb
Volume
Pedal - Post
Volume
Pedal - Pre
8
Vocal 300 Manual 11/20/01 8:23 AM Page 8

DigiTech VOCAL 300 Specifications

General

Type	Vocal Effects Processor
MIDI	No
Phantom Power	Yes
Effects	Pitch Correction, Delay, Reverb
Presets	40 User / 40 Factory
Inputs	1 x XLR, 1 x 1/4"
Power Supply	9V AC adapter
