6.While singing,gradually turn up the Vocal 300’s INPUT GAIN knob until
the INPUT CLIP LED lights with the strongest signals.
7.Gradually bring the mixer’s master fader up.
Note: It may be necessary to consult your mixer’s owners manual
for the proper mixer setup.
Stereo Operation
1.Turn the INPUT GAIN knob completely counter-clockwise (7 o’clock)
position.
2.Set the mixer channel’s fader to 0dB.
3.Set the mixer’s master fader to its minimum position (no output signal).
4.Connect the microphone to the Vocal 300’s XLR INPUT.
5.Connect an 1/4” TS cable or stereo TRS “Y” cable from the Vocal 300’s 1/4”
OUTPUT to the 1/4” line input of the selected mixer channel.
6.Set the pan controls on the selected mixer channel hard left and hard right.
7.While singing,gradually turn up the Vocal 300’s INPUT GAIN knob until
the INPUT CLIP LED lights with the strongest signals.
8.Gradually bring the mixer’s master fader up.
Note: It may be necessary to consult your mixer’s owners manual
for the proper mixer setup.

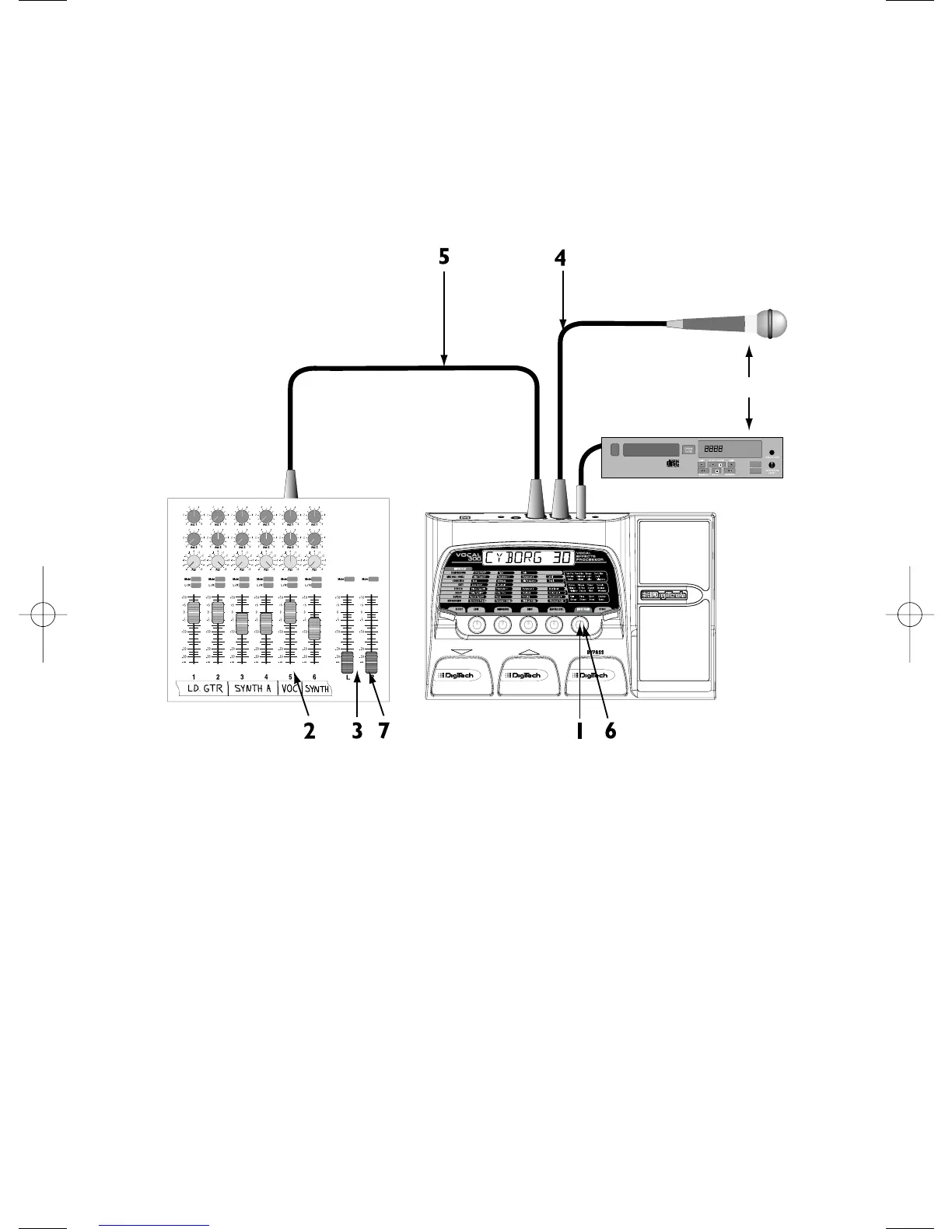

MASTER
or
From Line
Level Output
Balanced
XLR Cable
Balanced
XLR Cable
3
Vocal 300 Manual 11/20/01 8:23 AM Page 3

DigiTech VOCAL 300 Specifications

General

Type	Vocal Effects Processor
MIDI	No
Phantom Power	Yes
Effects	Pitch Correction, Delay, Reverb
Presets	40 User / 40 Factory
Inputs	1 x XLR, 1 x 1/4"
Power Supply	9V AC adapter
