SYSTEM 3000 to 3505 CONVERSION MANUAL
DIGITIZE, INC. 700254-0001 REV B 02/04
Specifications Subject to Change Without Notice
3-2

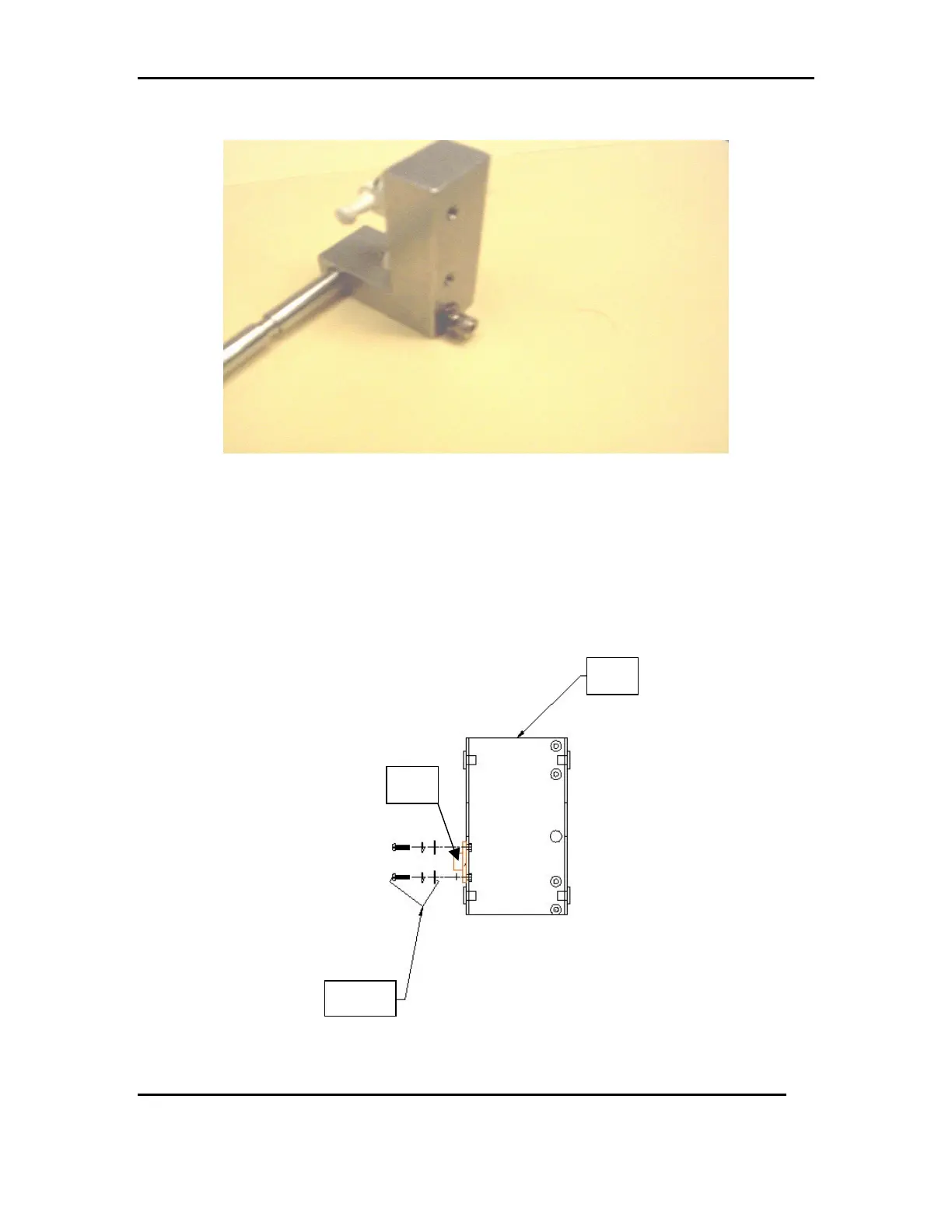

FIG 1c
3.2 PRINTER MECH SLIDE ASSEMBLY
3.2.1 To attach the female cabinet latch (item 11), to the slide bracket (item
12), use two each, 4-40x7/16 screws (item 2), #4 Split washer (item 3)
and #4 flat washer (item 4). Refer to DWG 2.
DWG 2
12
2, 3, 4
11
