SYSTEM 3000 to 3505 CONVERSION MANUAL
DIGITIZE, INC. 700254-0001 REV B 02/04
Specifications Subject to Change Without Notice
3-3

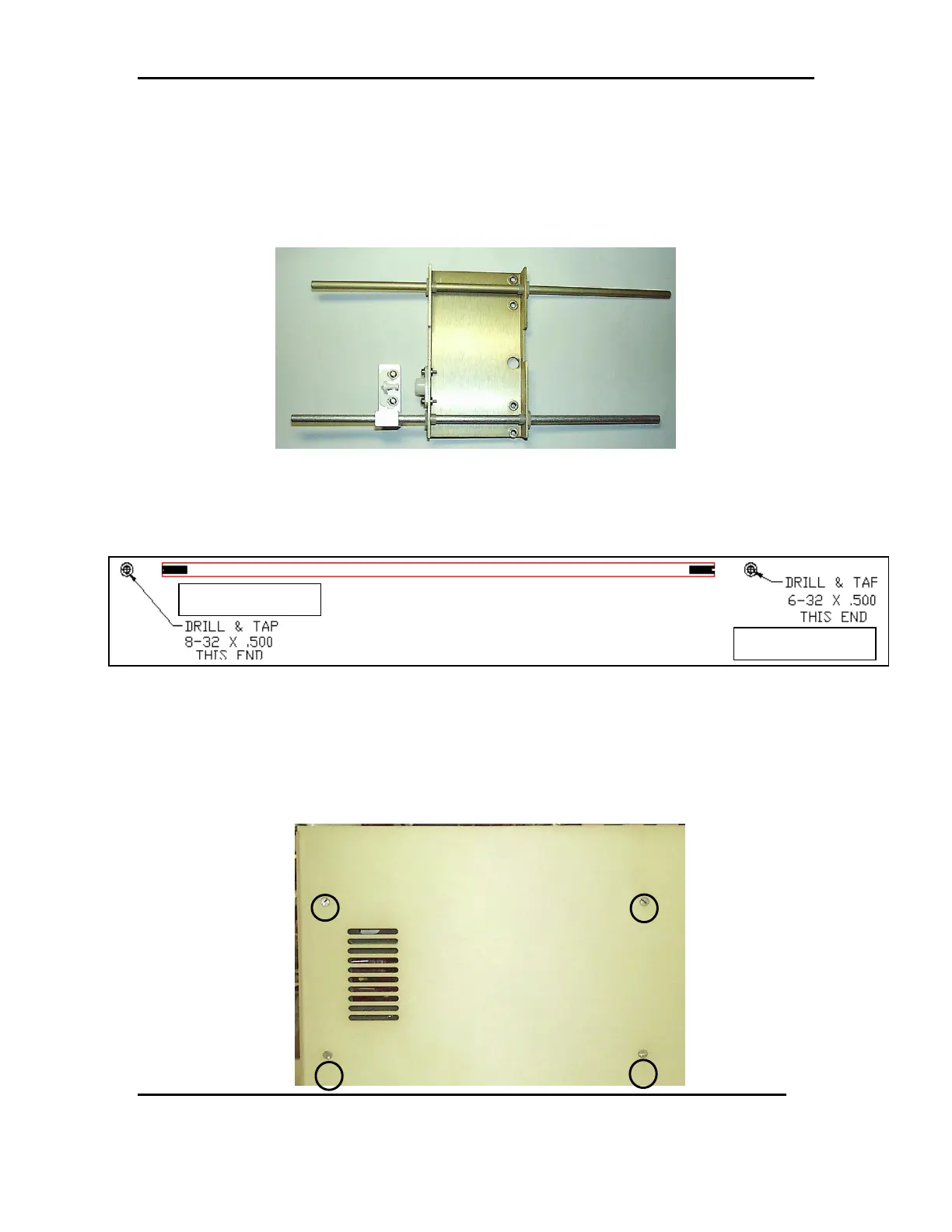

3.2.2 Slide the top rod, item 1, through the upper nylon insert, and the lower
rod, item 11, into the bottom nylon insert. Refer FIG 1d
FIG 1d
NOTE: The slide rails ends are different thread sizes, with the larger #8 thread screwing on to the front
panel, and the smaller #6 thread to the back of the chassis. There are no markings at this time,
so a visual inspection is needed to determine how the rails are placed. See DWG 3
DWG 3
3.3 FISH PAPER INSTALLATION
3.3.1 From the bottom of the chassis, un-screw the 4 flat head screws to remove
card cage. See FIG 2a
Front of Chassis
Back of Chassis
