SYSTEM 3000 to 3505 CONVERSION MANUAL
DIGITIZE, INC. 700254-0001 REV B 02/04
Specifications Subject to Change Without Notice
3-5

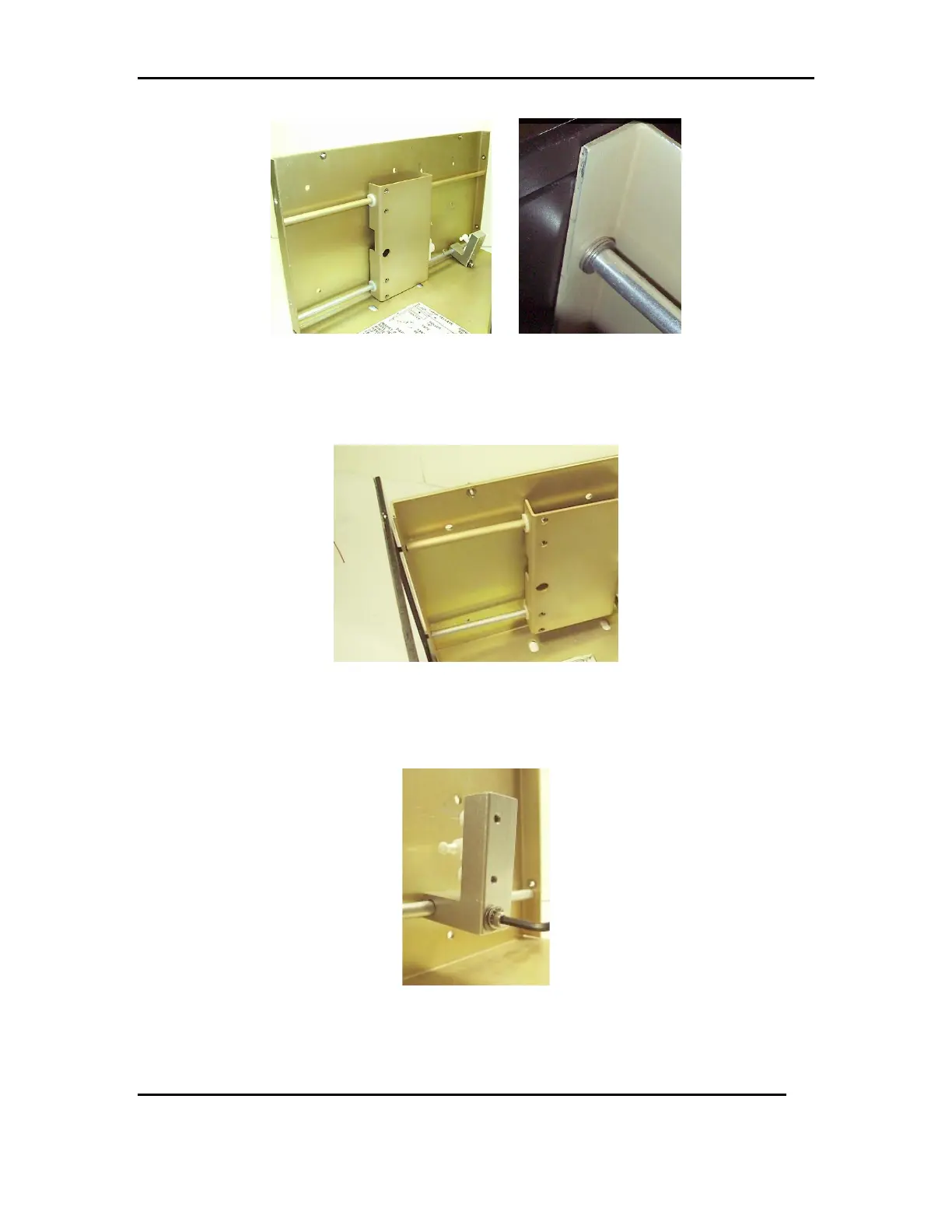

FIG 3a FIG 3b
3.4.2 Rotate the rails to attach them to the front panel. Tighten the top rail by
hand first, and then begin to tighten the bottom rail. Tighten securely. See
FIG 3c
FIG 3c
3.4.3 Attach the bracket lock to the rail, by tightening the 6-32x1.128 Socket
Head screw, into the notch on the rail, using a 7/64 Allen wrench to
secure. See FIG 3d.
FIG 3d
