MOUNTING
6
MOUNTING
MONITOR
Place the monitor on a clearly visible place in the tractor cabine and fix it with
the U-bracket and bolts, up or bottom position to avoid direct sunlight on
LCD. The display is illuminated which enables nighttime use with superb
visibility
• The monitor is connected optimally after a fuse (max. 3A) on 12 VDC,
taking care of the right polarity.
• Connect the extension cable of moduls to the monitor.
• Do not connect in line with other disturbing signal emitter
devices.
• Welding works are allowed only when both power cables of
the monitor are disconnected from the tractor’s electronic
system.

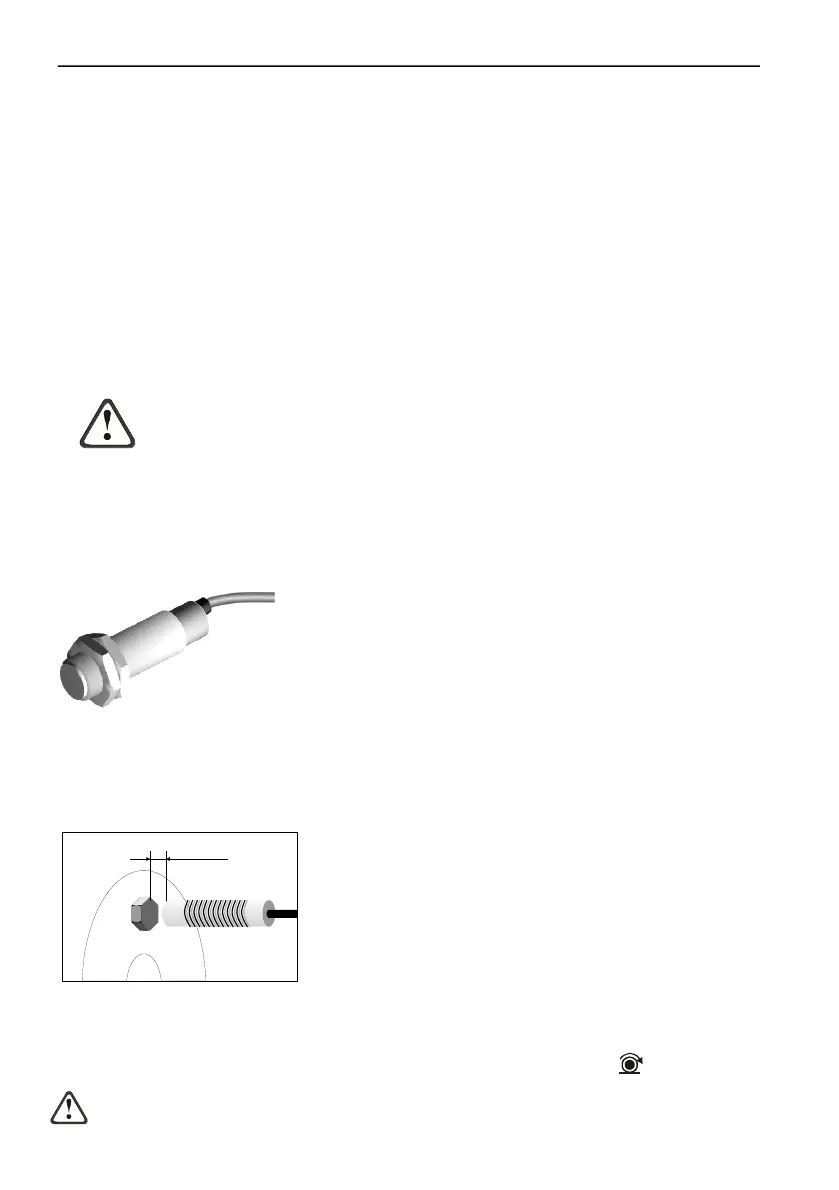

SPEED SENSOR FOR HECTARE COUNT
Mount speed sensor in front of a non-slipping wheel.
The best is a freewheel which sized to give at lest 1
signal in a distance traveled between 0,2 – 0,99 m.
The speed sensor gives you information about the
distance traveled.
Speed sensors are inductive sensors, in proximity of an iron part e.g. bolt
heads give a signal. If distance between sensing bolt heads would be more
than 1 meter, additional bolt signallers has to be mounted. This way, during
calibration the distance traveled in 100 bolt signals remains under 100 meters.
Checking operation:
• red LED at the end of speed sensor
• a symbol of speed sensor is blinking on monitor front
Important: when planning the placement of speed sensor regard the risk
Very important to adjust speed
sensor within the sensing distance,
generally between 4-6 mm from bolt
head.
