1-5. View of the Optional Modules
In the switch, Port 13~16 includes two types of media --- TP and SFP Fiber
(LC, BiDi-SC…); this port supports 10/100/1000Mbps TP or 1000Mbps SFP Fiber
with auto-detected function. 1000Mbps SFP Fiber transceiver is used for high-
speed connection expansion; nine optional SFP types provided for the switch are
listed below:
⎯ 1000Mbps LC, MM, SFP Fiber transceiver (SFP.LC)
⎯ 1000Mbps LC, SM 10km, SFP Fiber transceiver (SFP.LC.S10)
⎯ 1000Mbps LC, SM 30km, SFP Fiber transceiver (SFP.LC.S30)
⎯ 1000Mbps LC, SM 50km, SFP Fiber transceiver (SFP.LC.S50)
⎯ 1000Mbps LC, SM 70km, SFP Fiber transceiver (SFP. LC.S70)
⎯ 1000Mbps LC, SM 110km, SFP Fiber transceiver (SFP.LC.SB0)
⎯ 1000Mbps BiDi SC, TX=1310nm, SM 20km, SFP Fiber WDM transceiver
(SFP.BL3.S20)
⎯ 1000Mbps BiDi SC, TX=1550nm, SM 20km, SFP Fiber WDM transceiver
(SFP.BL5.S20)
⎯ 1000Mbps LC, SM 10km, SFP Fiber transceiver with DDM
(SFP.DLC.S10)

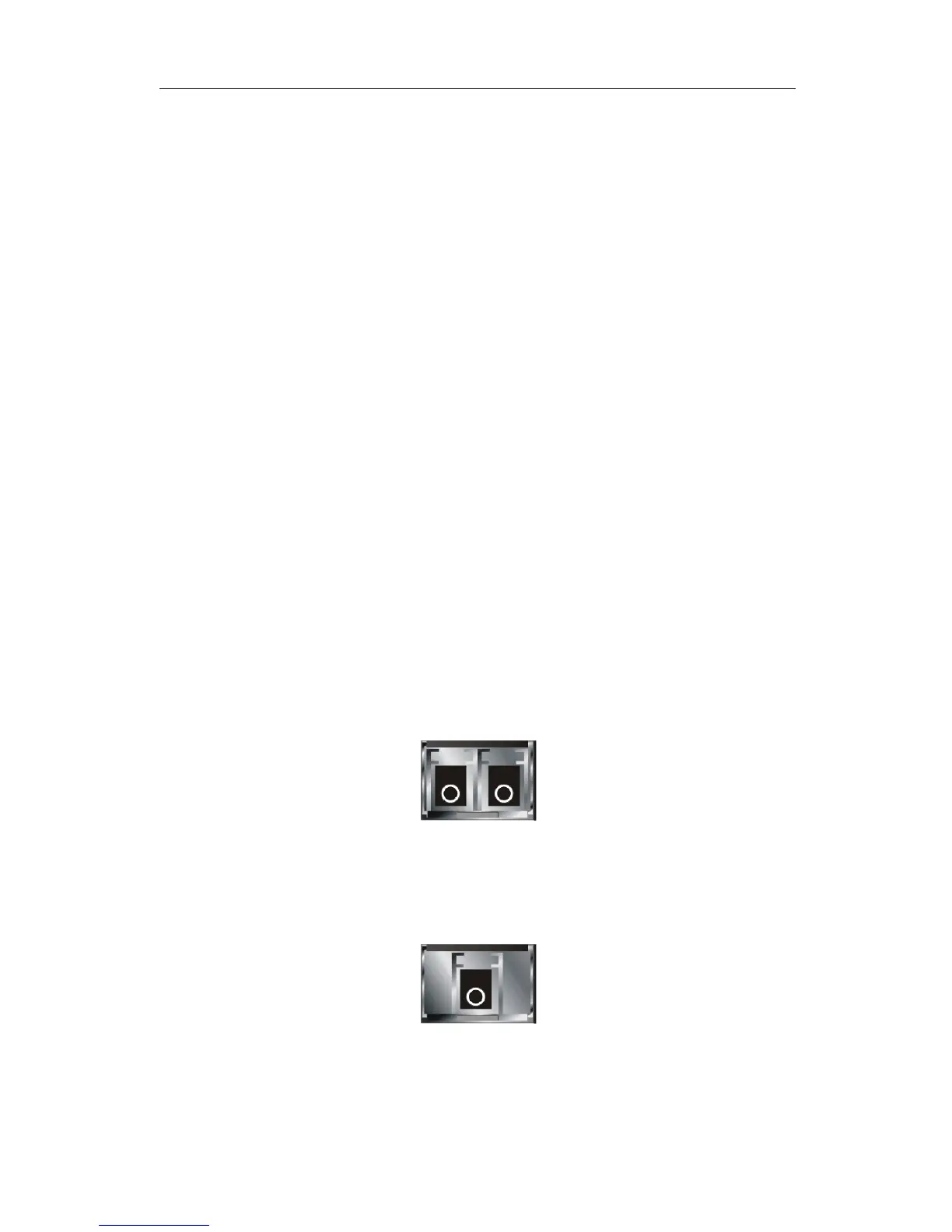

Fig. 1-4 Front View of 1000Base-SX/LX LC, SFP Fiber Transceiver
Fig. 1-5 Front View of 1000Base-LX BiDi SC SFP Fiber Transceiver
