Digitus DN-13006-1 User Manual

37
AppleTalk Status
1. Click Status, it then appears the sub-menu.

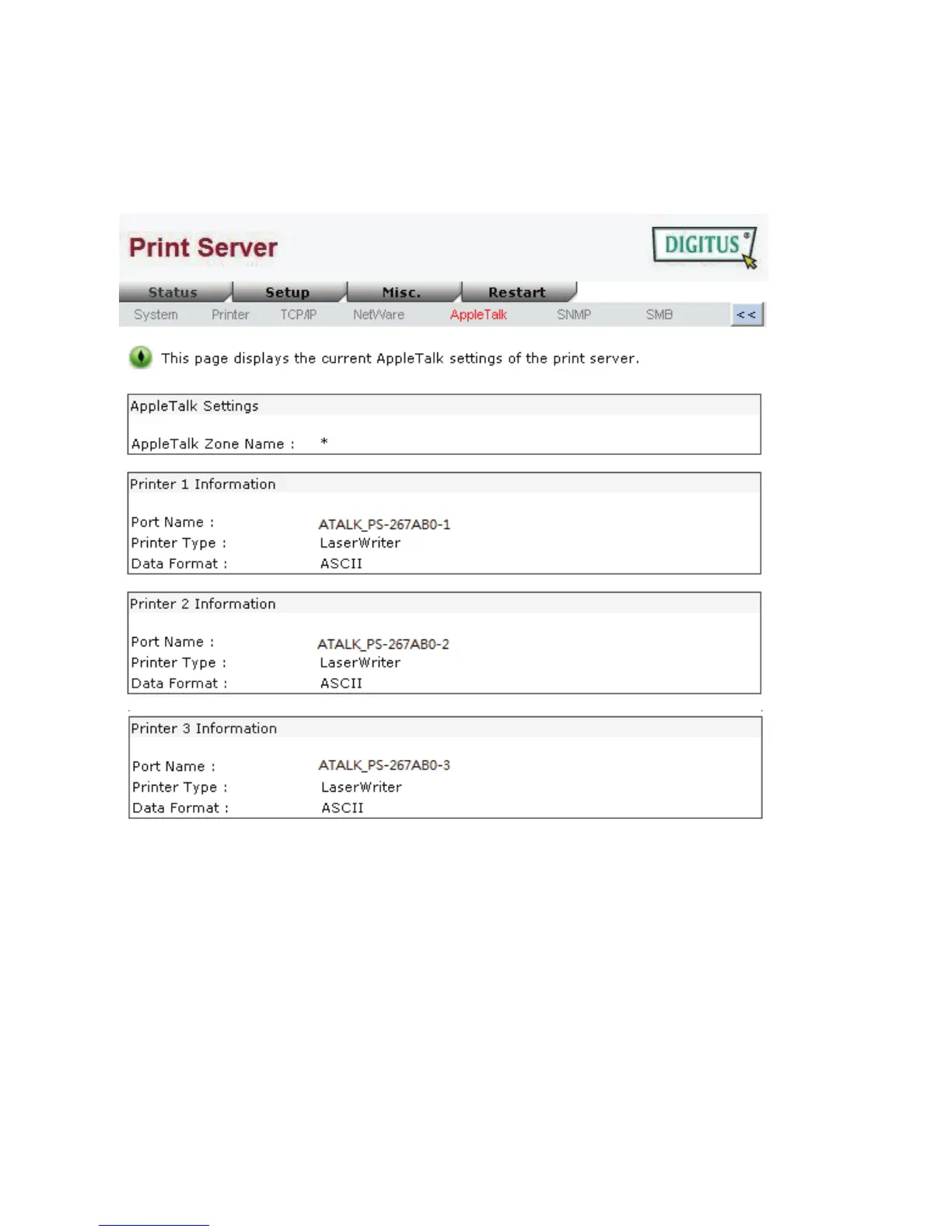

2. Click AppleTalk, it then as shown in the following picture.
AppleTalk Settings: If no any zone exists, the print server itself displays the zone name as
an asterisk (*) in the current AppleTalk Status of the print server in the web
browser.
Port Name: <ATALK_PS>-xxxxxx-1, where xxxxxx represents the last six digits of the print
server’s Node ID.
Printer Type: This option allows you to view printer type from the print server. If you are
using a PostScript printer you can select the LaserWriter 8 icon from your Mac
computer.
Data Format: This option allows you to view data format from the print server. If you are
using a PostScript printer you can select ASCII, TBCP or BCP format from
web configuration.

Digitus DN-13006-1 Specifications

General

Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Network connection type	Ethernet LAN
Web-based management	Yes
Supported network protocols	TCP/IP
USB connector type	USB Type-A
Serial ports quantity	0
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Internal	No
Product color	White
Country of origin	Taiwan
AC input voltage	230 V
AC input frequency	50 Hz
Package type	Box
