SMB Status
1. Click Status, it then appears the sub-menu.

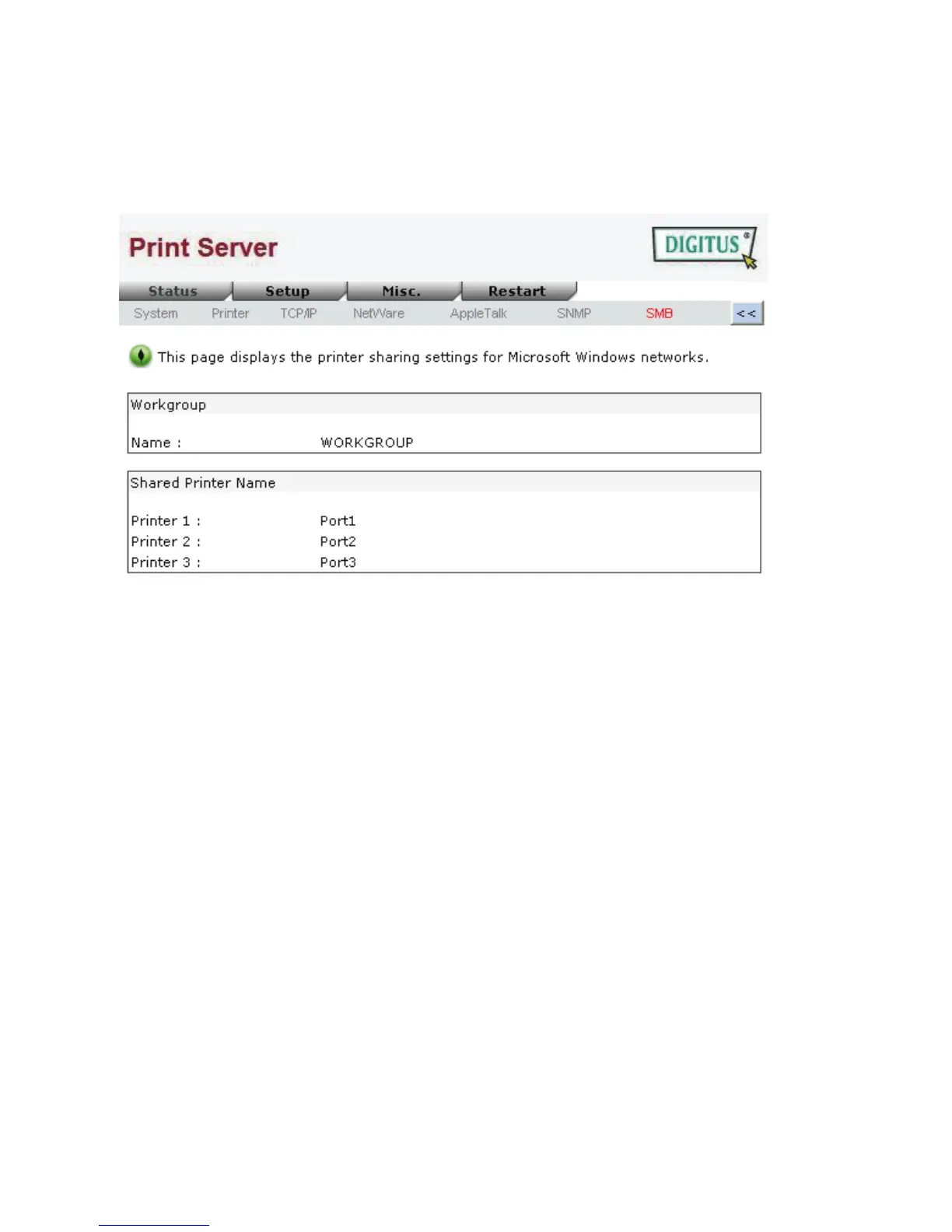

2. Click SMB, it then as shown in the following picture.
Workgroup Name: This option allows you to view the SMB Workgroup Name from the print
server. It must match the SMB workgroup name of your
Windows-based computer
Shared Name: This option allows you to view the Shared Name from the print server.
Setup Menu
Meanwhile, you have finished the IP address configuration with print server. You should use
web browser to configure the print server. The setup menu of the print server helps
administrator to setup the print server’s System, Printer, NetWare, TCP/IP, SNMP and
AppleTalk.
Preparation
Enter the IP address of the print server as the URL, default: 192.168.0.10. Then the print
server’s home page will appear in content of the web browser.
Please follow this information in the setup menu of the print server:

Digitus DN-13006-1 Specifications

General

Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Network connection type	Ethernet LAN
Web-based management	Yes
Supported network protocols	TCP/IP
USB connector type	USB Type-A
Serial ports quantity	0
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Internal	No
Product color	White
Country of origin	Taiwan
AC input voltage	230 V
AC input frequency	50 Hz
Package type	Box
