Digitus DN-13006-1 User Manual

58
11. Double-click the newly created Printer Name icon.
12. Select Printer and Properties.
13. Click Details tab and select Add Port.

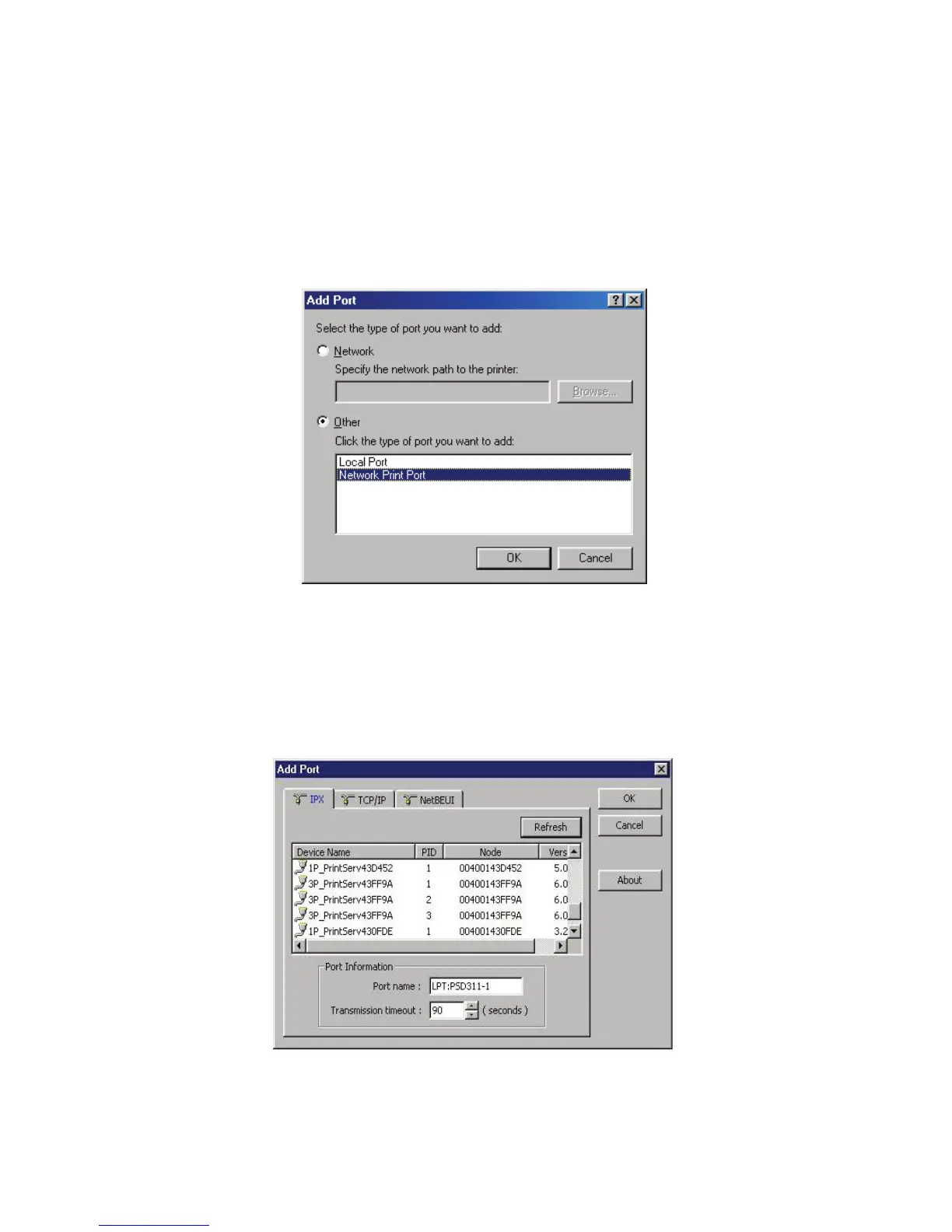

14. In the Add Port dialog box, select Other, as shown in the following picture.
15. Select the Network Print Port and click OK.
16. The Add Port box will then appear, along with the print server’s Node ID (The last 6 digits
of the Node ID, located on the back of the print server unit). Select one printer server port
from the list, which is now connected to (one of) your printer(s), as shown in the following
picture.
 By default, the computer will first search for the print server(s) on the network by using
the IPX/SPX protocol.

Digitus DN-13006-1 Specifications

General

Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Network connection type	Ethernet LAN
Web-based management	Yes
Supported network protocols	TCP/IP
USB connector type	USB Type-A
Serial ports quantity	0
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Internal	No
Product color	White
Country of origin	Taiwan
AC input voltage	230 V
AC input frequency	50 Hz
Package type	Box
