Digitus DN-13006-1 User Manual

66
Basically, the Linux's printing system is based on BSD system. Although many commercial
Linux systems are available in the market and their commands will vary slightly, depending
upon which version is used, the functionality of the Linux-based variants is exactly the same.
Following are the outlined procedures (recommended for all users) on Red Hat Linux
7.2/7.3 or later with X-Window system installed.
1. Make sure that the TCP/IP is well configured on your RedHat system, including
network interface card's driver and IP-related settings say, IP address, subnet mask,
and gateway IP).
2. Log in root.
3. Assign Print Server an IP address. At shell mode:
c.1. arp -s <the IP address you want to assign to the Print Server> < Print Server
's Node ID>
c.2. Execute tftp < Print Server 's IP> get config.txt and quit tftp.
c.3. Edit the config.txt and modify the IP address, subnet mask, and gateway IP.
When done, save the config.txt.
c.4. Execute tftp <Print Server 's IP> put config.txt and quit tftp.
4. Start X-windows by typing startx at the shell mode.

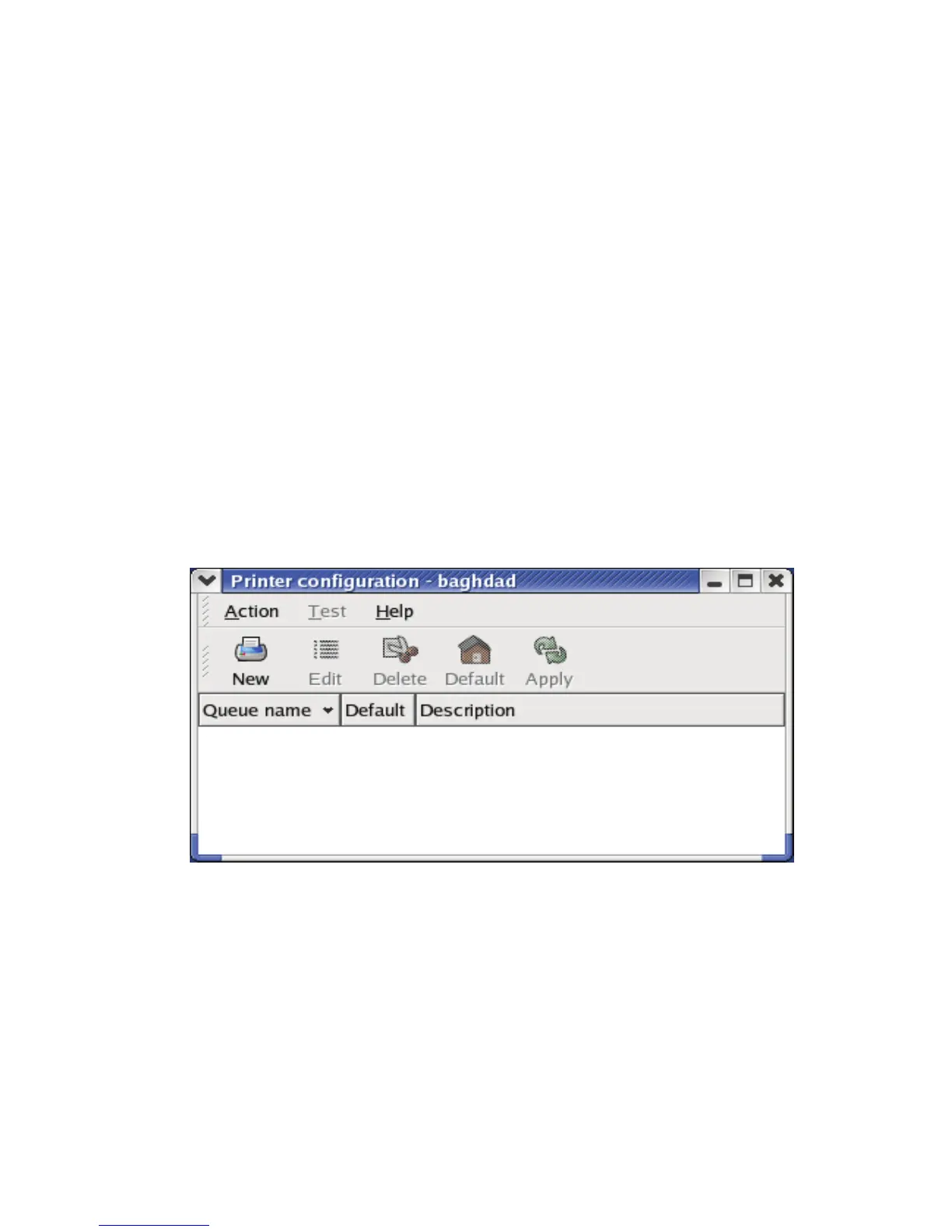

5. Open Printer Configuration.

Digitus DN-13006-1 Specifications

General

Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Network connection type	Ethernet LAN
Web-based management	Yes
Supported network protocols	TCP/IP
USB connector type	USB Type-A
Serial ports quantity	0
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Internal	No
Product color	White
Country of origin	Taiwan
AC input voltage	230 V
AC input frequency	50 Hz
Package type	Box
