1.2 Receiving the machine
Before accepting the machine, verify that all the data on the data-plate corresponds
to the required ones (as shown on par. 1.1) and to the ones of the available electrical
supply.
The machines must be handled strictly as shown in pict. 1 regarding the grip points
indicated for lifting with a lift truck.
Latch the machine in a way that secures no vibration or shocks during transportation.
Note: Slinging with ropes not recommended.
After
unpacking, make sure the appliance has not been damaged due to transportation.
If it has been, do notify the seller about this problem. If the damage might question the
machine’s safety, do not install the appliance.
Double check the fi
rm tightness of all hose-clamps on piping, nuts, bolts, and fasteners, that might come loose with
the transport, to prevent water dripping leakages, or other damages, during the machine's operation.
The installation and the starting of the machine must be carried
out by trained operators only, even if the machine is coming
from another site and it has been used, already.
Adaptation of the electrical and water system for dishwasher installation must be carried out by only qualifi ed operators.
See chapter 8 for disposal of the packing material.
This
machine has to be used in a place with room temperature between 41°F (5°C) and 95°F max (35°C). The room has to
be dry and ventilated.
1.3 Storage
Storage temperature: min. +40°F (+4°C) – max. +122°F (+50°C) - humidity <90%
The stored parts should be checked periodically to detect any sign of deterioration.
Do not store the machine exposing it to atmospheric agents (rain, sun, cold,
etc.). Do not place material on the packed machine.
Do not rotate the machine in the storing phase (see pict. 2).
1.4 Machine equipment
Use and maintenance manual
Wiring diagrams
A copy of the wiring diagrams must be kept inside the electrical board.
1.5 Water connection
Water connections must be carried out in compliance with current local standards.
The water system must have characteristics between the parameters specifi ed in table 1.
*Should the water supply pressure be more than 60 PSI (400Kpa), a pressure reducer must be installed (only for those
versions where it is not a standard supply, already).
**It is compulsory to install a water-softener
, in case of water with average hardness above 8°f. Washed objects will
be cleaner and the machine will last much longer.
The machine can be equipped with a water softener, on request. If the machine is equipped with a water-softener, a
regeneration of the resins shall be done on regular basis (see par. 5.6).
Note: Any damage caused by limestone (calcareous water higher-up than
8°f and without water-softener) will not be covered
by warranty.
Once a year a supplied-water hardness check is highly recommended.
***The machine must be supplied with cold water, if equipped with the Heat Recovery System (max 59°F - 15°C).
Machines shall be made with extra power in case of cold water infeed.

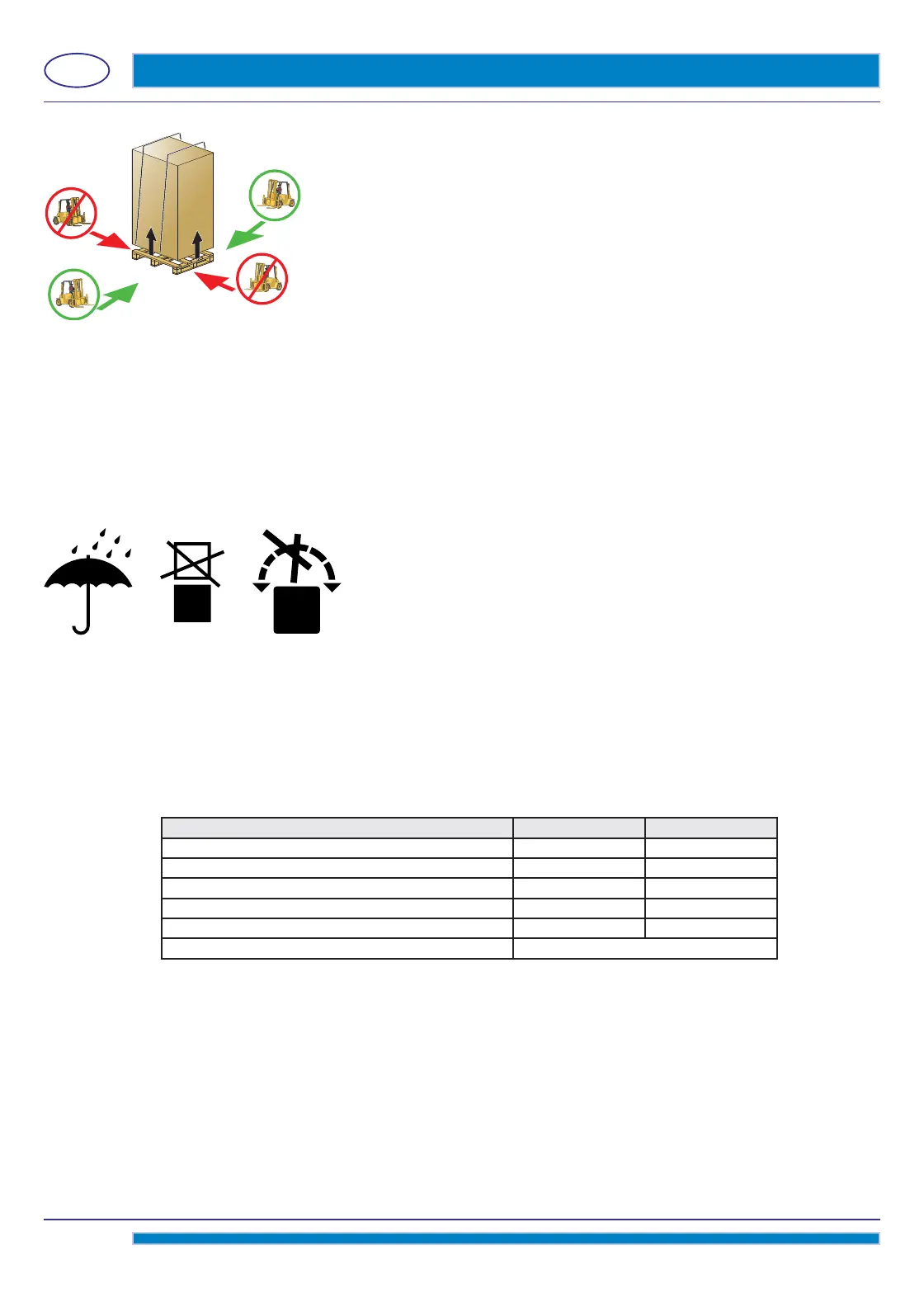

pict. 1
pict. 2
Table 1
Water characteristics table Min Max
Static Pressure* 30 PSI (200Kpa)
60 PSI (400Kpa)
Dynamic Pressure 21 PSI (150Kpa) 50 PSI (350Kpa)
Water hardness** 5°f 8°f
Cold water-supply temperature*** 41°F (5°C) 122°F (50°C)
Hot water-supply temperature**** 122°F (50°C) 150°F (65°C)
Capacity 2,6 gpm (10lt/min)
