4.3 DRAIN PUMP – Installation
Electrical connection: Connect the drain pump cables to the numbered connections (2-11) predisposed in the wiring.

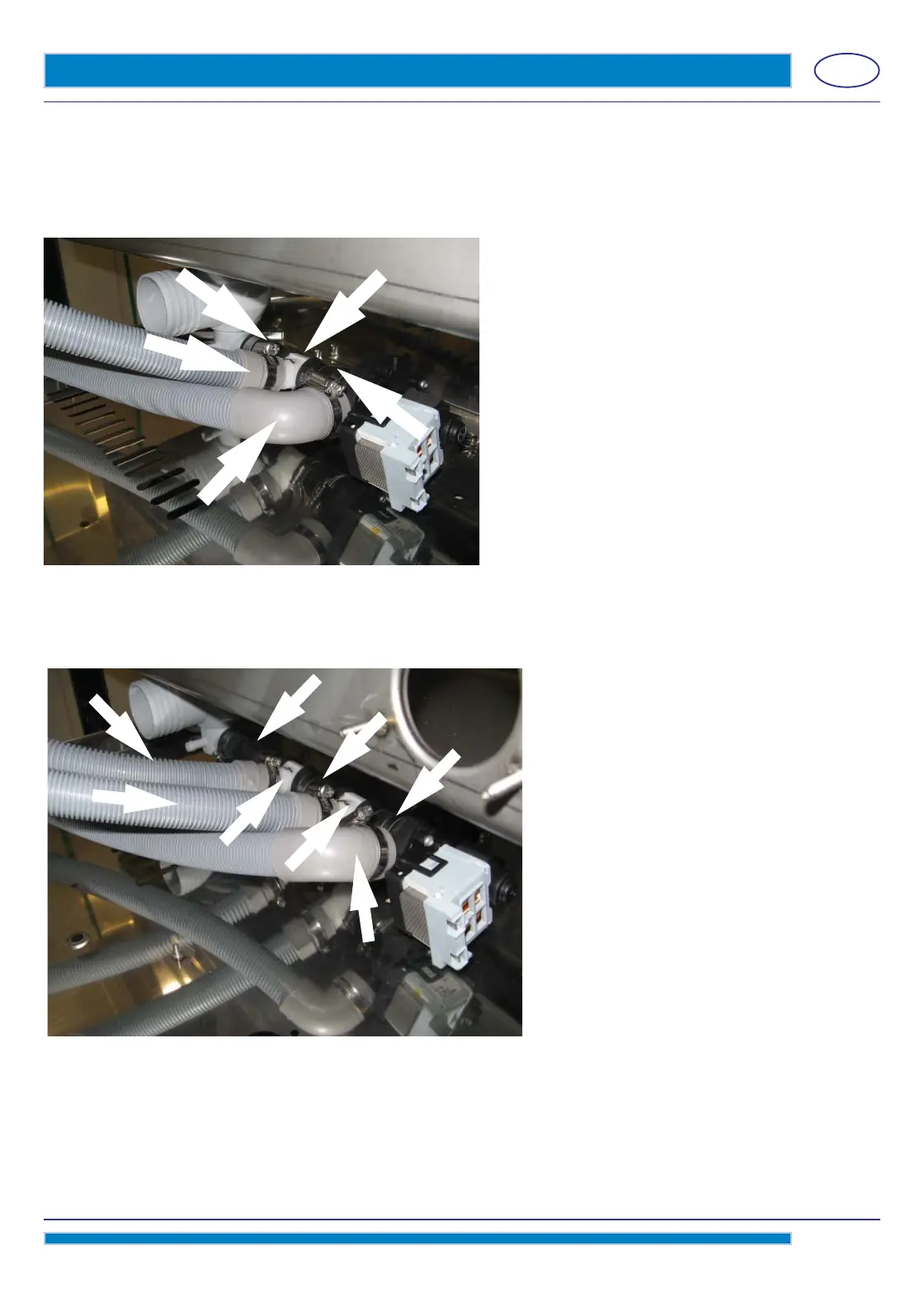

Water connections:
Standard Plus version + Drain Pump:
A) Drain hose for condense water
B) Drain hose
C) Sleeve Ø 28 mm
D) 3 ways connection
Standard Plus version + Drain Pump + Heat Recovery system:
A) Overfl ow pipe, break tank
B) Drain hose for condense water
C) Sleeve Ø 28 mm
D) 3 ways connection
E) Drain hose
Activate the DRAIN PUMP parameter as indicated at paragraph 4.1.6 DRAIN PUMP -Activation.
