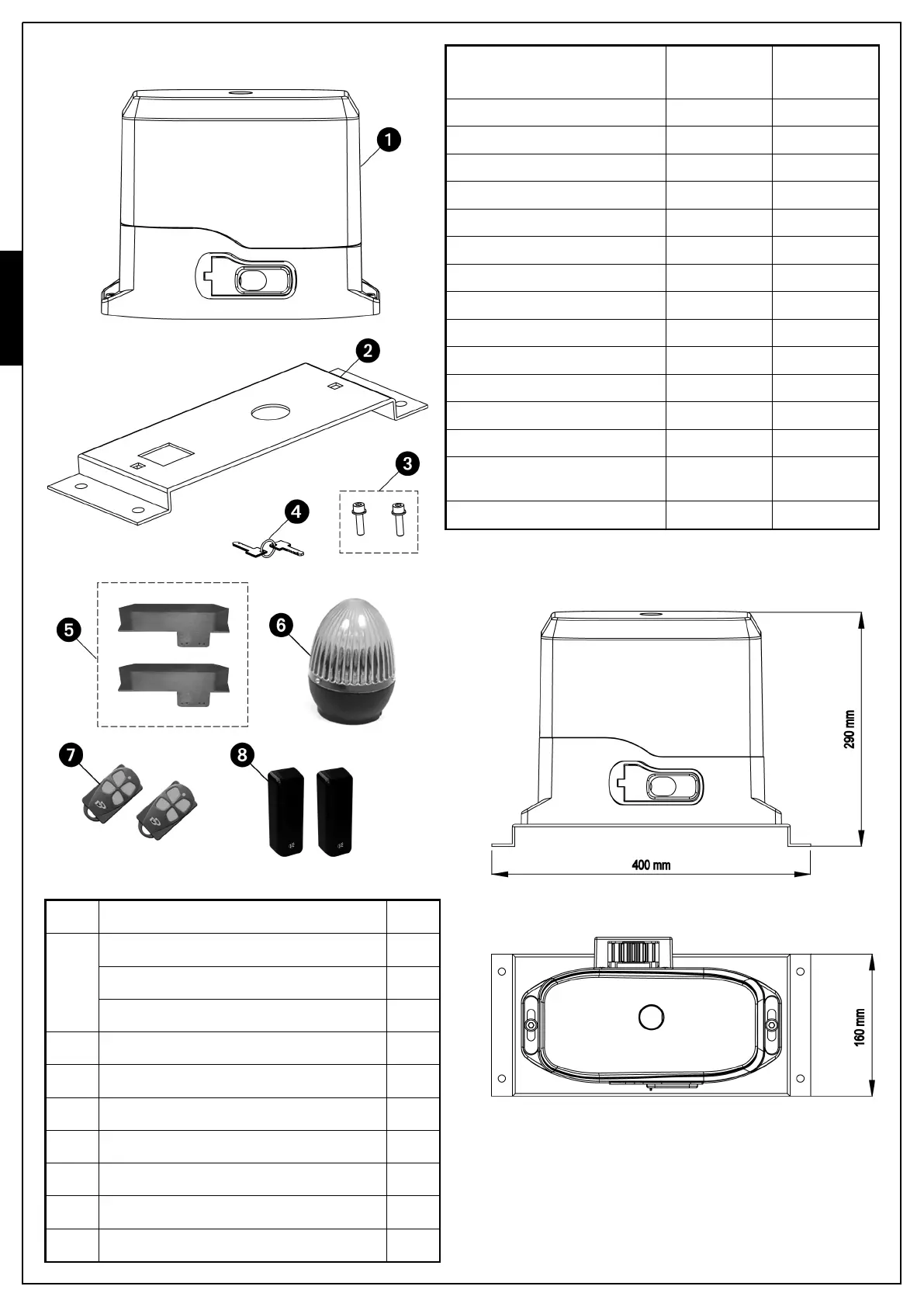

PARTS LIST
Ref Description Q.ty
1
• Electro-mechanical actuator 1
• Capacitor 1
• Control unit 1
2 Metal fastening plate 1
3 Cage nuts + Bolts M8 X 30 + Washers 2
4 Motor overriding key 2
5 Mechanical limit switch 2
6 Flashing lamp EGG220 1
7 Four-channel transmitters TRC-4 DM 2
8 Pair of photocells SENSIVA-XS 1
TECHNICAL
S
PECIFICATIONS
NEW ROTOR
N
EW ROTOR
MINI
Gate maximum weight 600 Kg 400 Kg
Power supply 230VAC / 50Hz 230VAC / 50Hz
Maximum power 500 W 350 W
Idling current 1.6 A 1.1 A
F
ull load current
2
A
1
.4 A
Capacitor 14 µF 12 µF
Gate maximum speed 0.16 mt/sec 0.16 mt/sec
Maximum thrust 480 N 380 N
Duty cicle 30% 30%
Pinion M4 - Z18 M4 - Z18
Operation temperature -20°C ÷ +60°C -20°C ÷ +60°C
Weight 10 Kg 10 Kg
Protection IP44 IP44
Maximum load on 24 VAC
attachments
3 W 3 W
Protection fuses F1 = 5 A F1 = 5 A
