FRANÇAIS
m ATTENTION! TOUS LES CÂBLES UTILISÉS POUR
L’INSTALLATION DOIVENT EXCLUSIVEMENT ÊTRE DES CÂBLES
MARQUÉS T100°C.

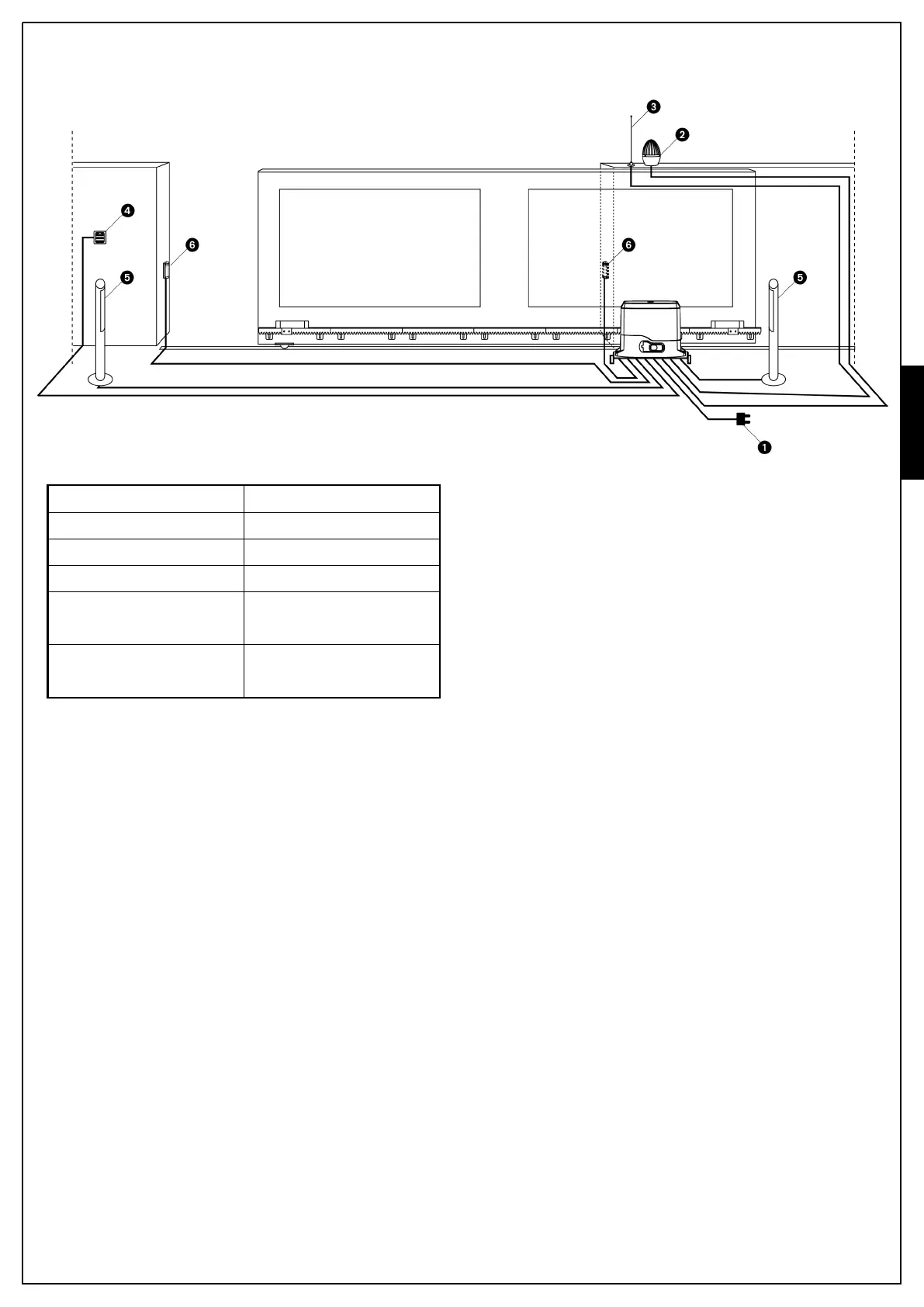

SCHÉMA D’INSTALLATION
Alimentation
câble 3 x 1,5 mm
2
Clignotant
câble 2 x 1,5 mm
2
Antenne
câble RG-58
Sélecteur a clé ou digital
câble 2 x 1 mm
2
Photocellules interne
câble 4 x 1 mm
2
(RX)
câble 2 x 1 mm
2
(TX)
Photocellules externe
câble 4 x 1 mm
2
(RX)
câble 2 x 1 mm
2
(TX)
-35-
