VOLTAGE SELECTOR SWITCH LOCATION
IMPORTANT:
Ensure that the incoming power supply
voltage matches the setting of the voltage
selector switch.
NOTE:
The voltage selector switch is located
inside the exhaust panel on the top
right hand corner.
CAUTION:
When changing the voltage selector
switch from 240 volts to 120 volts
ensure that the power supply is turned
off.
NOTE:
Carefully insert a flat headed
screwdriver inside the exhaust panel
to change the switch from 240 volts
(230 position) to 120 volts (115 position).
When wiring the unit for 208 / 240 volts
the voltage selector switch should be
in the 230 volt position. (see figure 1)
When wiring the unit for 120 volts
the voltage selector switch should be
in the 115 volt position. (see figure 2)
MOUNTING FLANGES
There are two mounting flanges located
on each side of the fireplace insert.
Bend tabs and mount to framing using
suitable hardware.

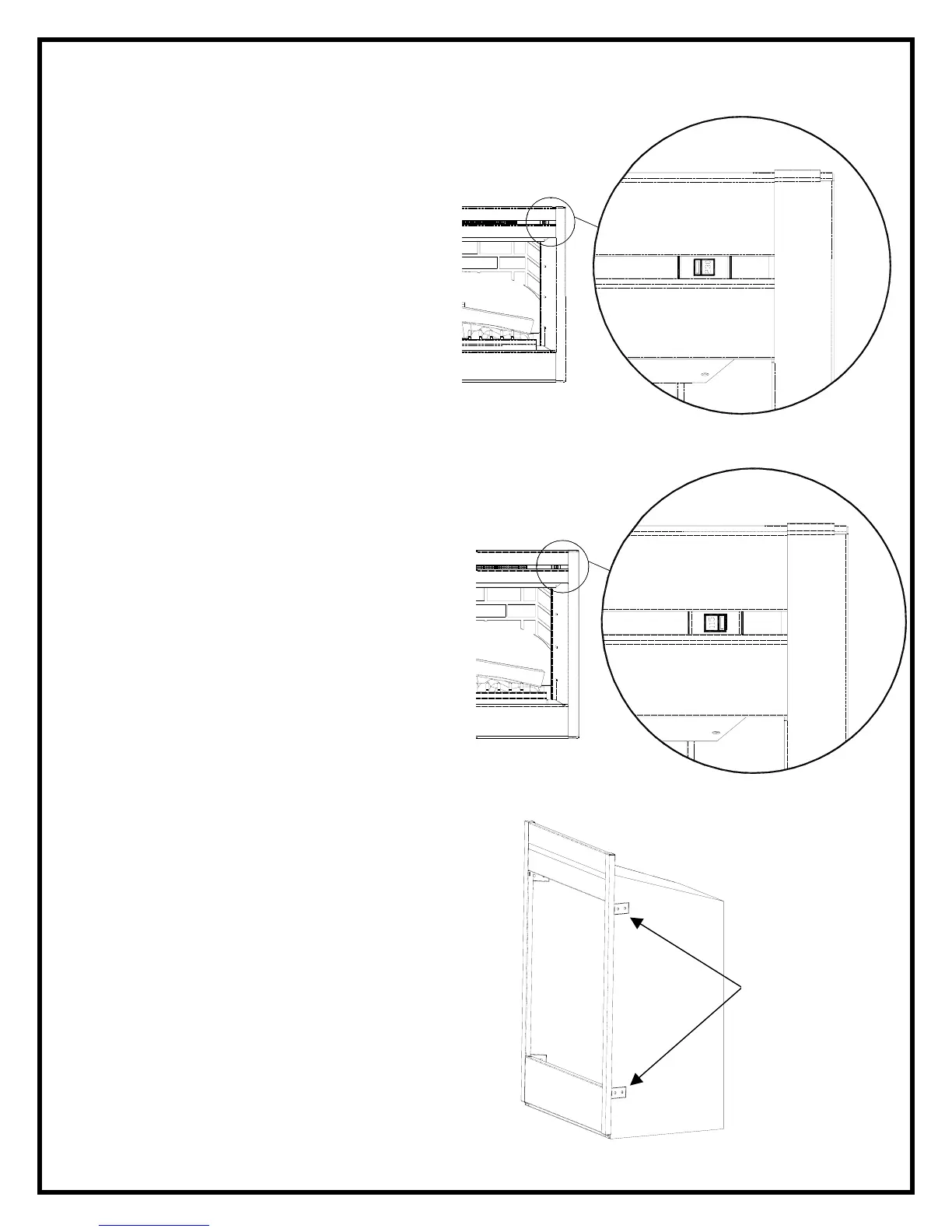

FIGURE 1
FIGURE 2
Mounting
Flanges
FIGURE 3
