Dimplex DFI2309 - Operation; On;Off Switches and Heater Control; Resetting the Temperature Cutoff Switch

9

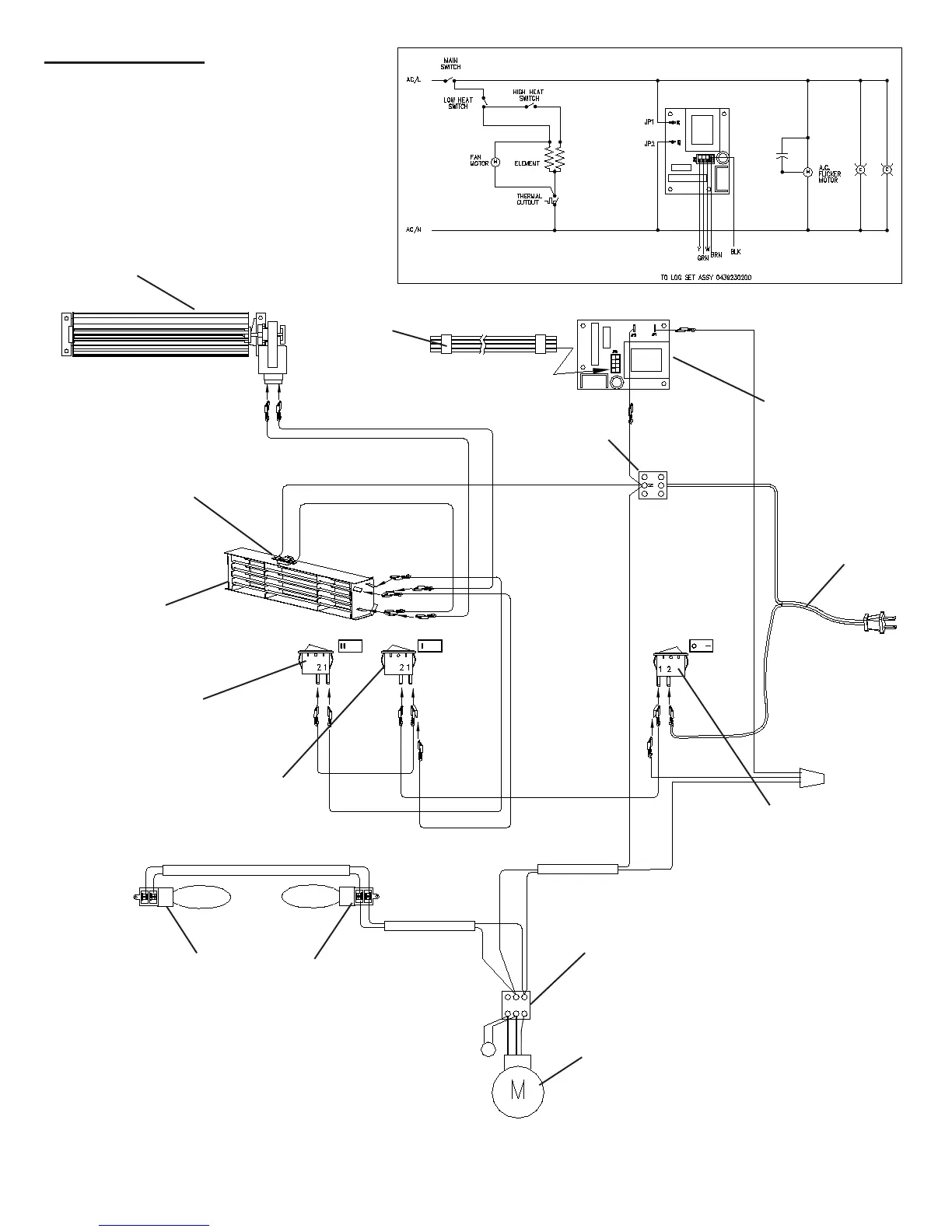

Wiring Diagram
DFI2310 MOD ~
Blower
Flicker Motor
Lamp holders
Cutout
Power Cord
Terminal Block
Main
On/Off Switch
Low Heat Switch
High
Heat Switch
Heater Elements
Terminal Block
LED Log Set
Driver
Wire Harness to
Log Set
