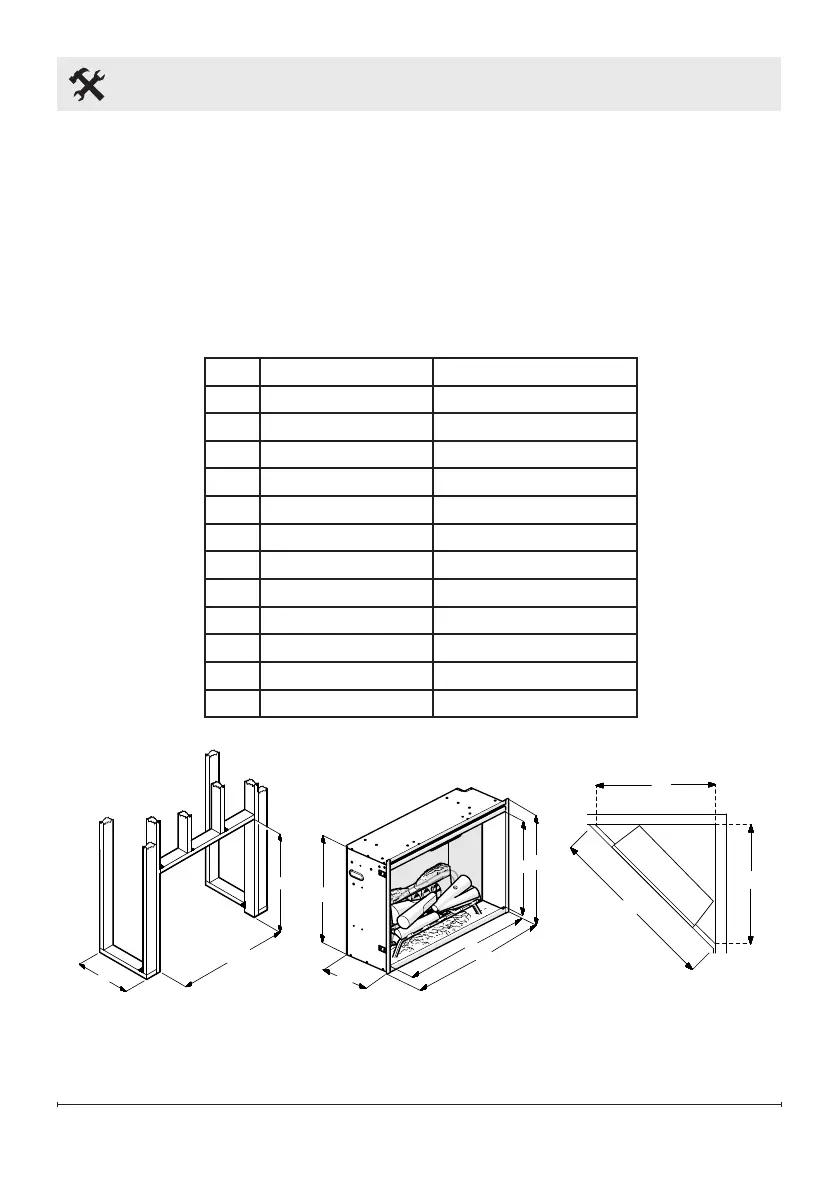

Installation
RBF24DLX RBF24DLXWC
A 12 1/2" (318 mm) 12 1/2" (318 mm))
B 24 5/8" (626 mm) 24 5/8" (626mm)
C 22 3/8" (568 mm) 22 3/8" (568 mm)
D 22 1/8" (562 mm) 22 1/8" (562 mm)
E 12 1/8" (307 mm) 12 1/8" (307 mm)
F 23 3/8" (595 mm) 23 3/8" (595 mm)
G 25 1/4" (640 mm) 25 1/4" (640 mm)
H 19" (483 mm) 19" (483 mm)
I 22 7/8" (581 mm) 22 7/8" (581 mm)
J 47 3/4" (1213 mm) 47 3/4" (1213 mm)
K 33 3/4" (857 mm) 33 3/4" (857 mm)
L 33 3/4" (857 mm) 33 3/4" (857 mm)
Rough-In Framing Dimensions Fireplace Dimensions Rough-In Corner Dimensions
Framing
1. The Revillusion
TM
Electric Fireplace/
Fireplace Insert does not require
any special venting.
2. To build the rough-in opening, follow
the framing dimensions below.
!
NOTE: The materials used for
the nished surround must be cut to
precise dimensions (dimensions B &
C) as the 1/4" (0.6 cm) self trimming
ange is only to create a nished
appearance.
G
F
I
H
E
D
J
K
L
C
B
A
