Dimplex Revillusion RBF24DLX User Manual

8 www.dimplex.com

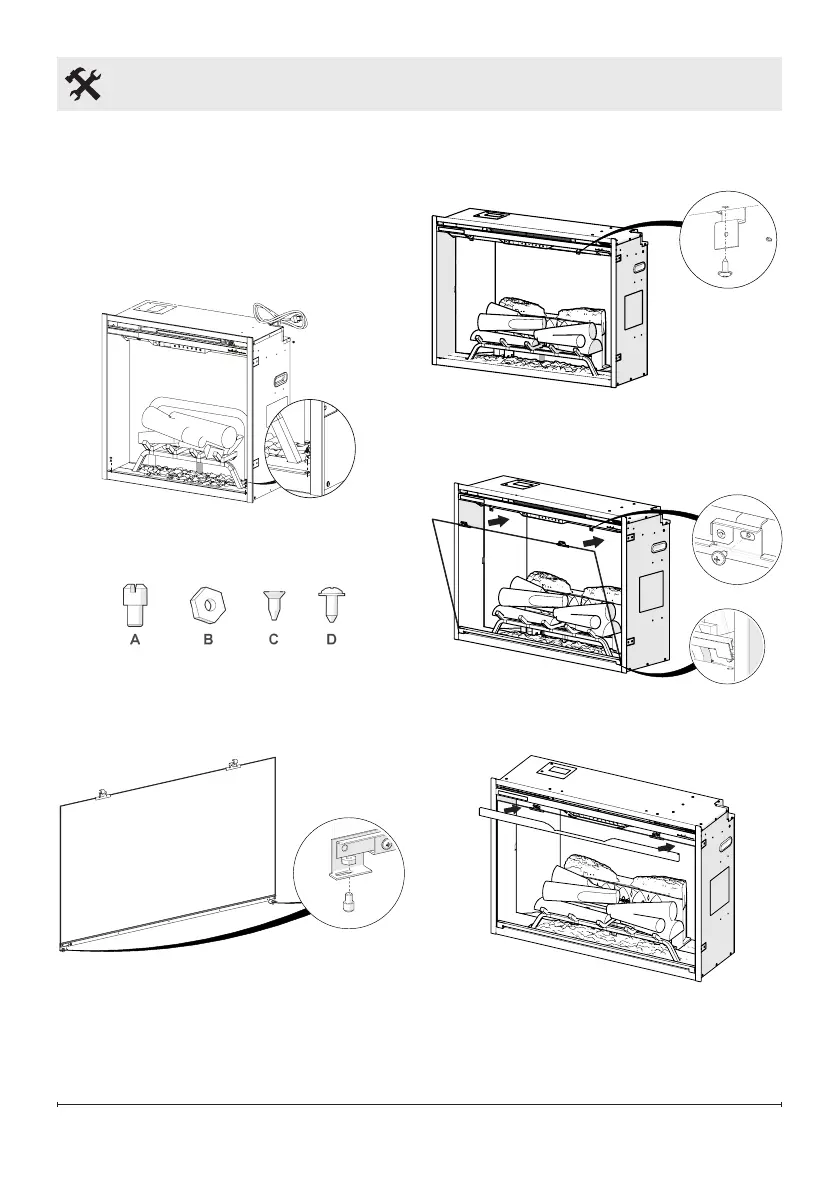

Front Glass Installation
Method
1. Before installing the front glass
installation, remove the hole caps
from the fireplace.
2. Make sure all hardware has been
included in package prior to starting.
x2 x2 x2 x4
3. Install hardware items A and B onto
front glass.
4. Install brackets onto fireplace with
screws C.
5. Place front glass into fireplace and
secure with screw D
6. Install top trip piece.
Installation

Dimplex Revillusion RBF24DLX Specifications

General

Brand	Dimplex
Model	Revillusion RBF24DLX
Category	Indoor Fireplace
Language	English
