4.1.4 Technical data
Figure 25 summarises the key technical data of the Dimplex SOLC220 solar thermal
collector.

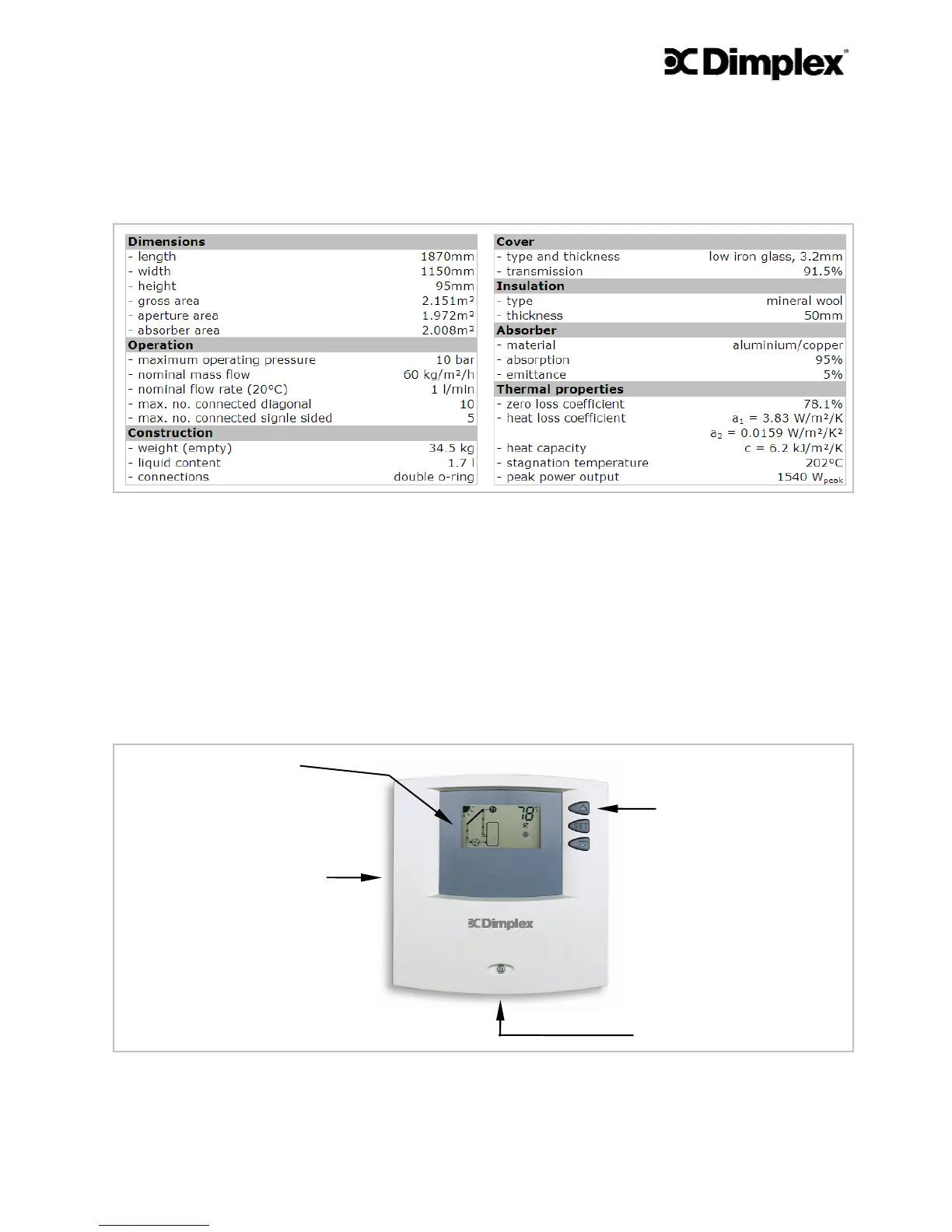

Figure 25 – Technical data Dimplex SOLC220 collector
4.2 Dimplex solar control unit SOLCU1/2/3
4.2.1 General description
Dimplex solar offer a range of solar control units with differing input and output options
and functionality. All control units operate on the basic principles described in chapter
3.3.2. Figure 26 shows the SOLCU1 control unit detailing the main components which
are common to all Dimplex solar control units.
Figure 26 – Dimplex solar control unit overall view
SOLCU1
Operating switch
× ON
- AUTO
Ø OFF
LCD display
- animated
- backlit
- controller operation
and system settings
Connections
- mains supply
- relay output(s)
-
sensor in
p
uts
Operating buttons
- scroll up
- SET
-
scroll down
