Dimplex SOLAR ST0133 - Feed through Tiles SOLFTT and SOLFTM

Technical manual
Page 46 of 72
ST0133 – A 02/09
SOLAR
4.8.3 Feed through tiles SOLFTT and SOLFTM
The Dimplex solar feed through tiles are suitable for corrugated and plain tiles, slate
roof coverings and sheet metal coverings depending on the type chosen:
- SOLFTT: corrugated and plain tile, slate roof covering
- SOLFTM: sheet metal roof covering, plain or corrugated
For each pipe feed through one tile of the appropriate type is required. The product
allows pipes and cables from 0 to 35mm to be fed securely into the roof. The feed
through tiles are suitable for plain copper tubing and for corrugated stainless steel hose.
An overall view of the two types of feed through tiles and the technical data are given in
Figure 48.

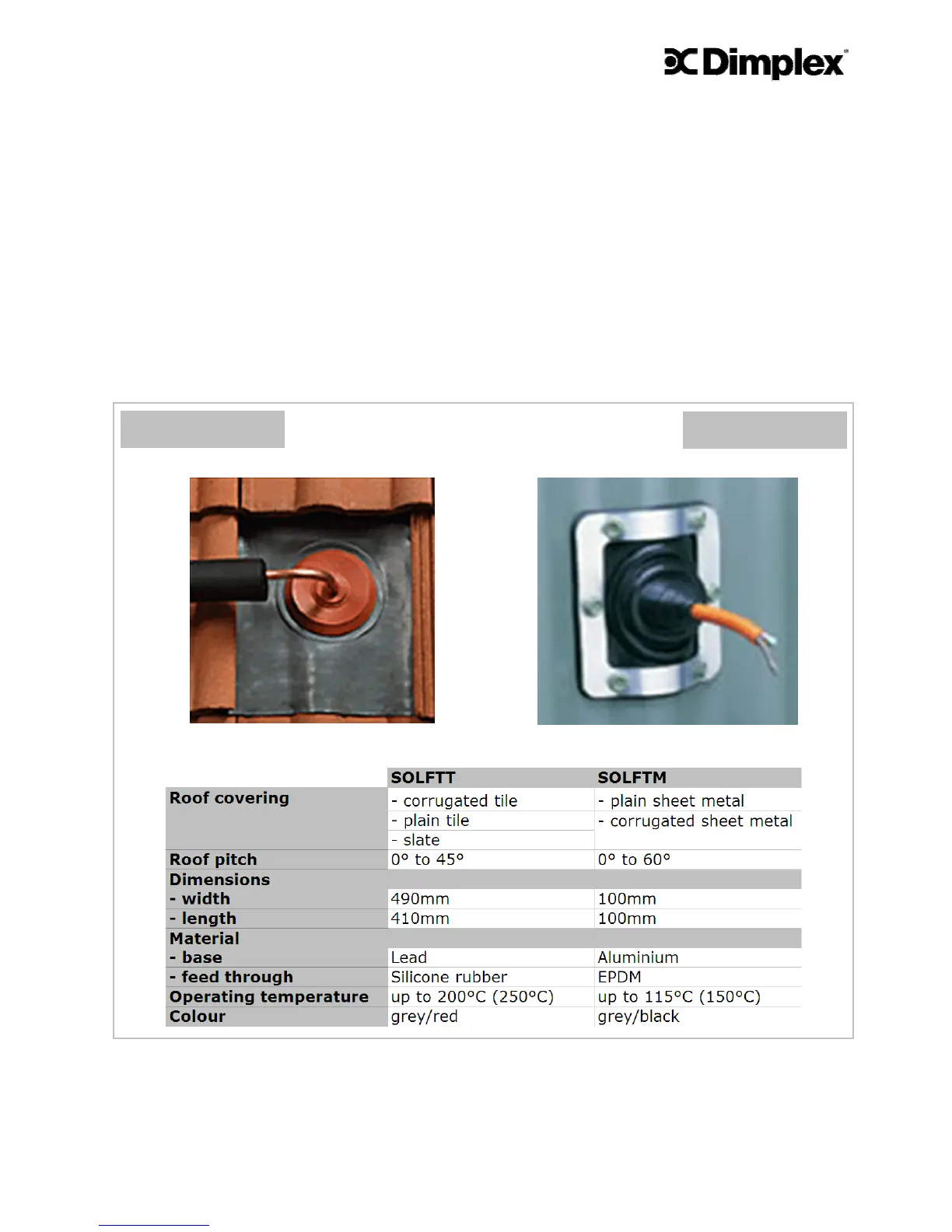

Figure 48 – Overall view feed through tiles SOLFTT and SOLFTM
SOLFTT
SOLFTM
