4.8.2 Corrugated flexible pipe SOLFH10/15
The Dimplex solar flexible corrugated stainless steel pipe includes:
- high temperature and weather resistant insulation
- integrated 2 core sensor cable
- wall fixings
- connection fittings from the collector to the pump unit and from the pump unit to the
cylinder
- 10m or 15m length.
The SOLFH10/15 pipe work reduces the installation time considerably by reducing the
number of joints to be performed, insulation of the pipe work separately, laying the
sensor cable and ensuring the leak tightness along its installation.

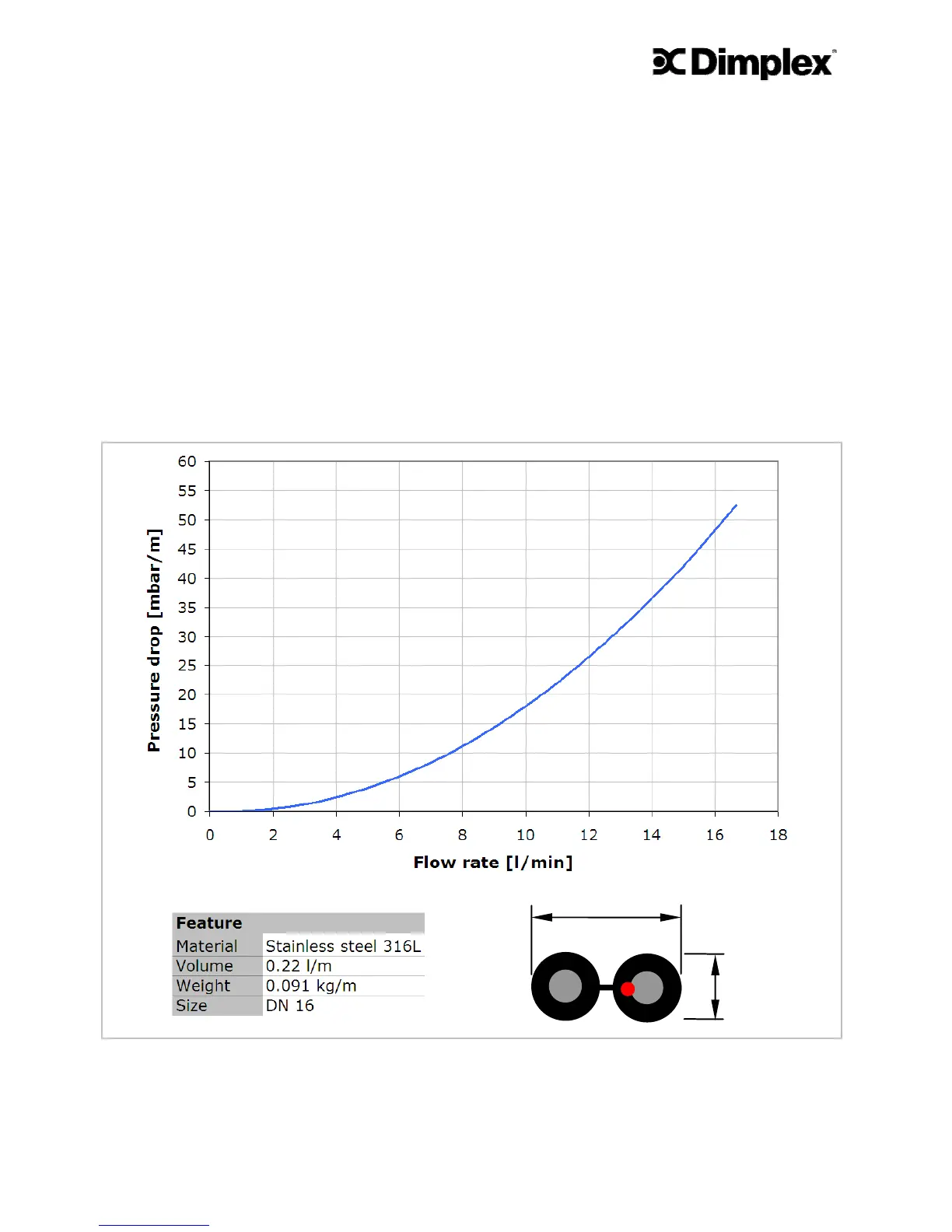

The technical data of the SOLFH10/15 pipe work is summarised in Figure 47.
Figure 47 – Technical data Dimplex flexible hose SOLFH10/15
~100mm
~45mm
