Technical manual
Page 44 of 72
ST0133 – A 02/09
SOLAR

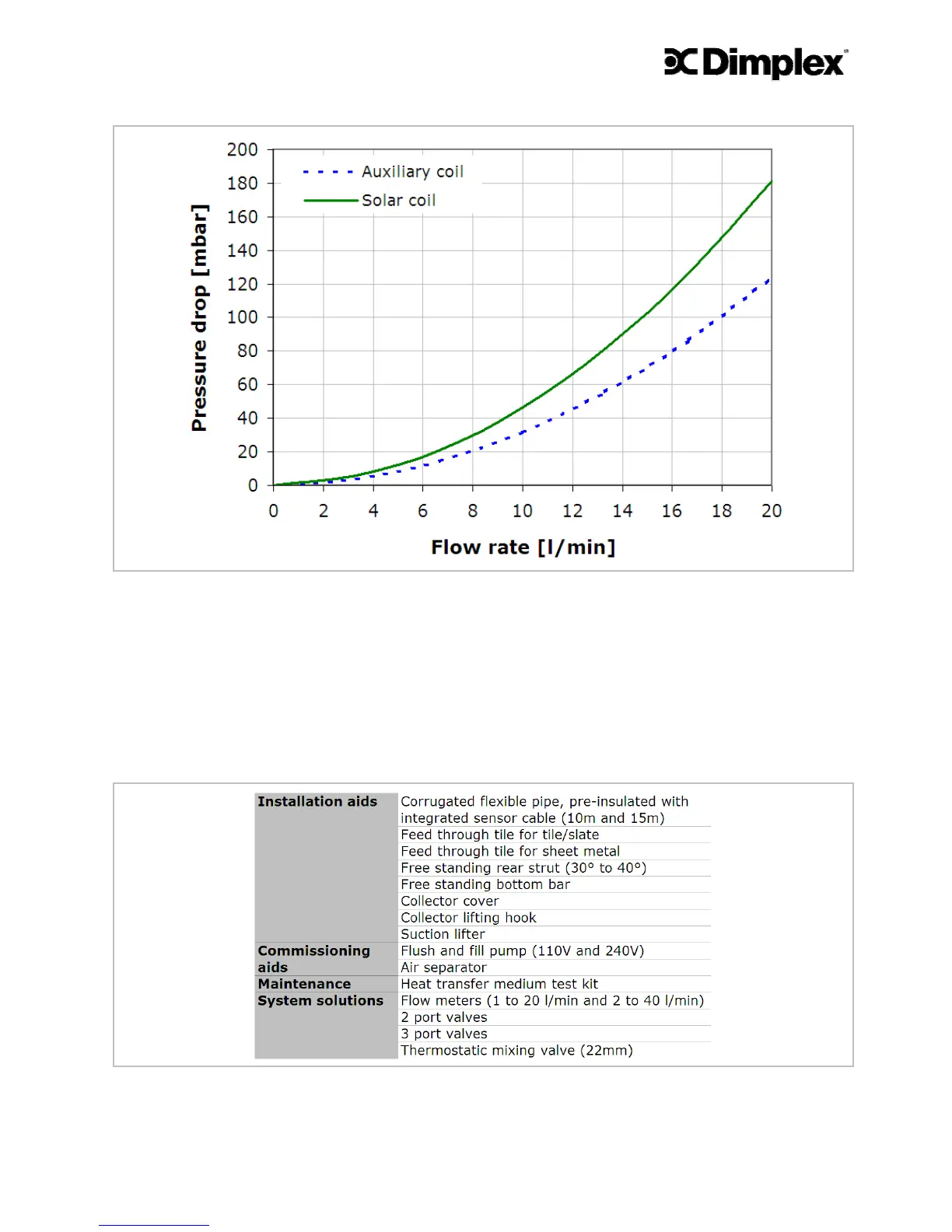

Figure 45 – Pressure drop Dimplex solar SCx cylinder coils
4.8 Dimplex solar accessories
4.8.1 General description
To aid in the installation, commissioning, maintenance and the realisation of more com-
plex systems Dimplex offer a range of accessories as summarised in Figure 46.
Figure 46 – Dimplex solar accessories
