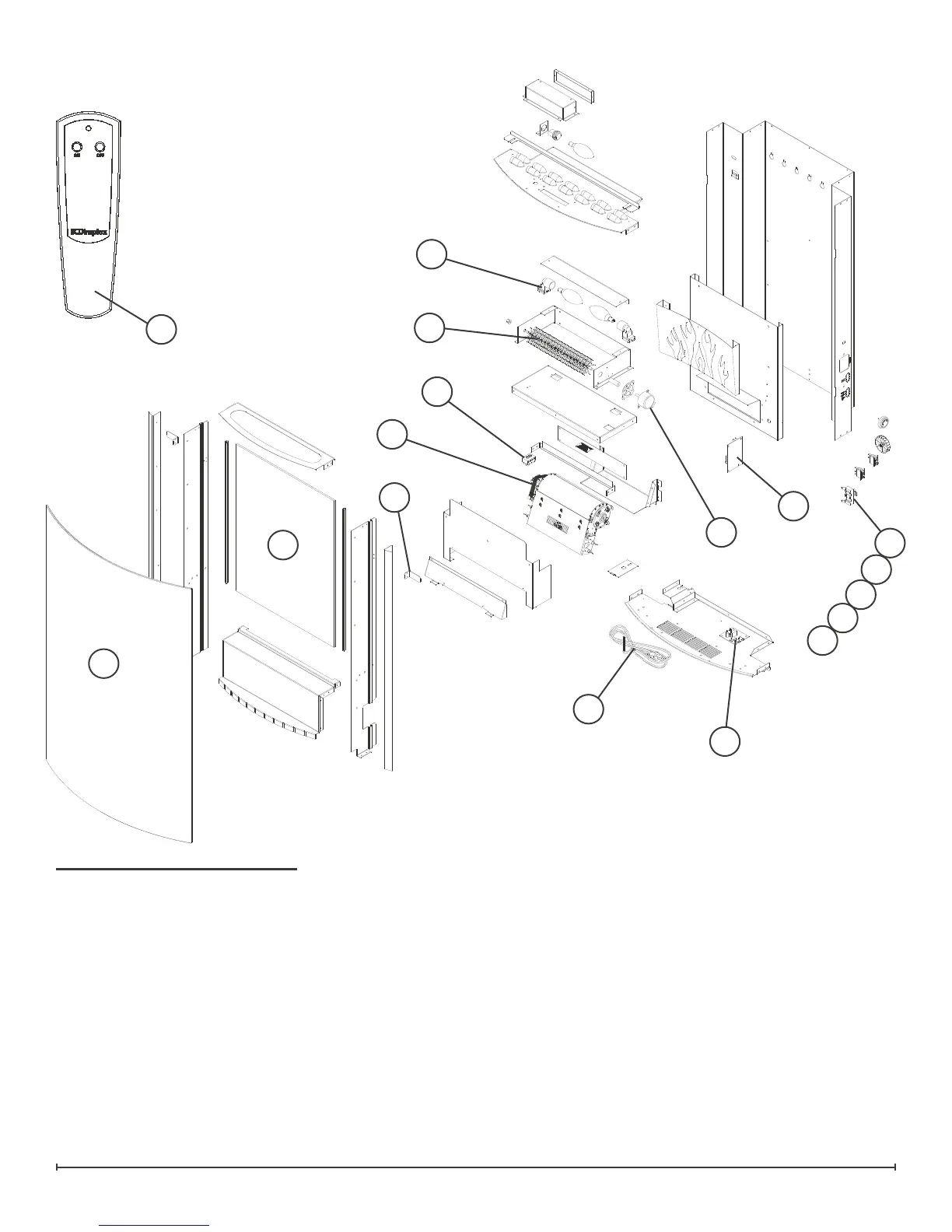

EXPLODED PARTS DIAGRAM
Replacement Parts List
Replacement Part:
Front Glass1. . . . . . . . . . . . . . . . . . . . . . . 5901170100RP
VCX1525WH. . . . . . . . . . . . . . . . . . . . . 5901170200RP
Flicker Motor2. . . . . . . . . . . . . . . . . . . . . .2000210200RP
Flicker Rod3. . . . . . . . . . . . . . . . . . . . . . . 5901110100RP
Lower Light Harness 4. . . . . . . . . . . . . . .4200090200RP
Mirror5. ...........................5901180100RP
Thermostat6. . . . . . . . . . . . . . . . . . . . . . 2300150100RP*
ON/OFF Switch7. ...................2800070700RP
Thermostat Control Knob8. . . . . . . . . . . .8801080100RP
Three Position Switch9. . . . . . . . . . . . . . . 2800071100RP
Remote Control Receiver10. . . . . . . . . . . .3000380200RP
Terminal Block11. . . . . . . . . . . . . . . . . . . . .4000070100RP
Blower and Heater Assembly12. . . . . . . . .6904280100RP
Cord Set13. . . . . . . . . . . . . . . . . . . . . . . . .4100090104RP
Upper Light Harness14. ...............2500400400RP
Dimmer Control15. ...................3000250200RP
Dimmer Control Knob16. . . . . . . . . . . . . . .8800000100RP
Remote Control Transmitter17. . . . . . . . . .3000370500RP
Media Tray Retaining Bracket18. . . . . . . . .1020410159RP
Black Stone Media19. . . . . . . . . . . . . . . . .1400050100RP
River Rock Media (VCX1525WH)20. . . . . .1400080100RP
Cutout21. . . . . . . . . . . . . . . . . . . . . . . . . . .2300150100RP
6
1
2
3
4
5
9
10
8
7
13
17
12
16
11
15
18
