Replacement (when required)

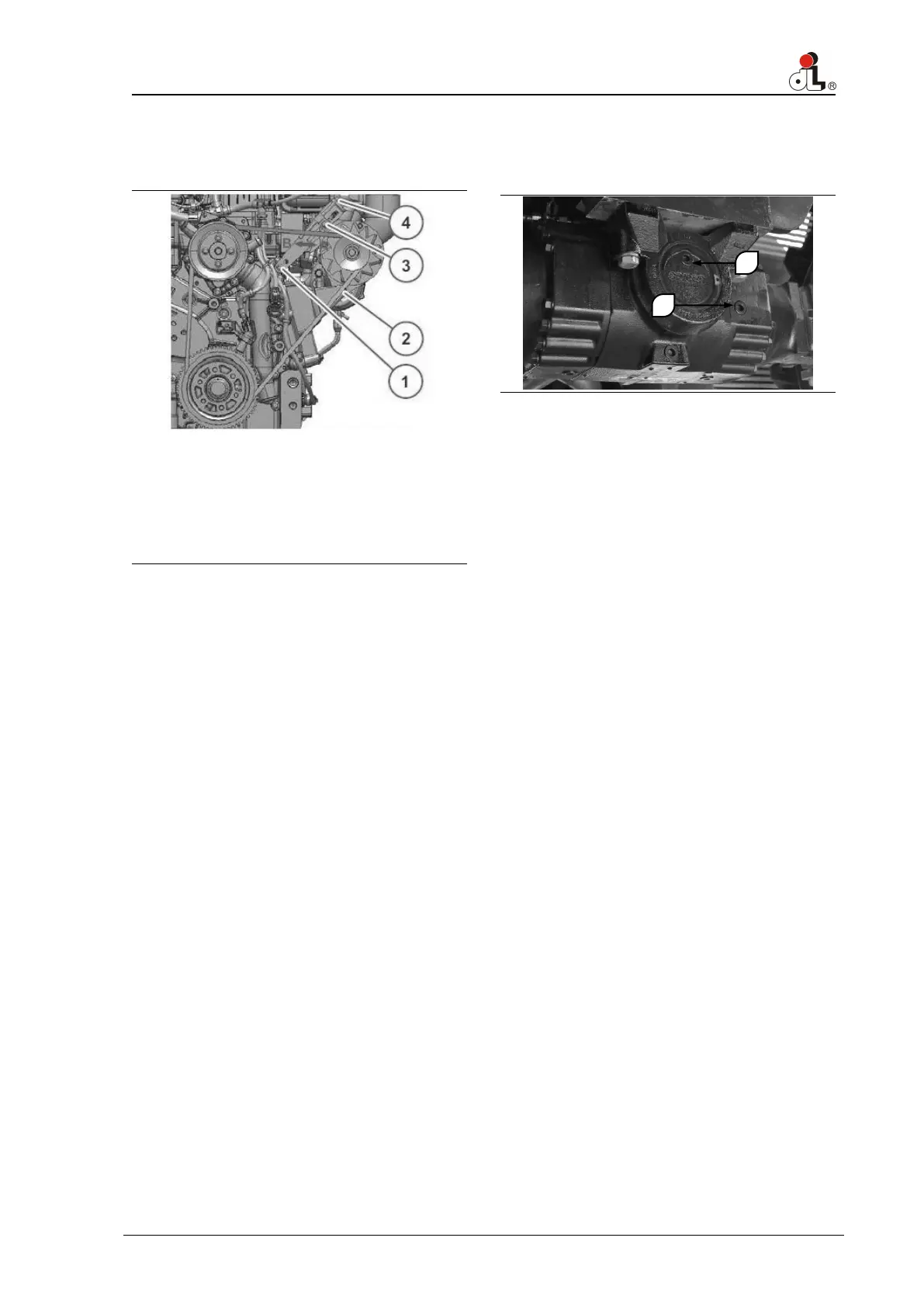

(1) Screw
(2) Screw
(3) Screw
(4) Adjuster wrench
To replace the transmission belt:
1 Slacken the screw and lock nut,
2 Move the generator above the adjuster
wrench in direction (B) until the belt
slackens,
3 Remove the belts and fit the new ones,
4 Reposition the generator above the
adjuster wrench in direction (A) until the
belt tension is correct,
5 Check the belt tension:
pre-tensioning 650 ± 50 Nm
correct tension 400 ± 50 Nm
6 Tighten the screw and lock nut.
Tightening torque: screw (1) 30 Nm
screw (2) 42 Nm
screw (3) 30 Nm
C-2 Differentials oil - Check
1 Set the vehicle in the parking position.
Make sure no one approaches the work
area.
2 Remove level cap 1. The oil must flow out
through the opening.
3 If necessary, remove filler cap 2. Add oil
to the correct level. Close level cap 1, and
then filler cap 2. Clean the axle surfaces.
4 Repeat the operations for the front and
rear differential.
