DINGLI JCPT0807HA - Hydraulic Schematic

OPERATOR’S MANUAL with Maintenance Information
Schematic
99

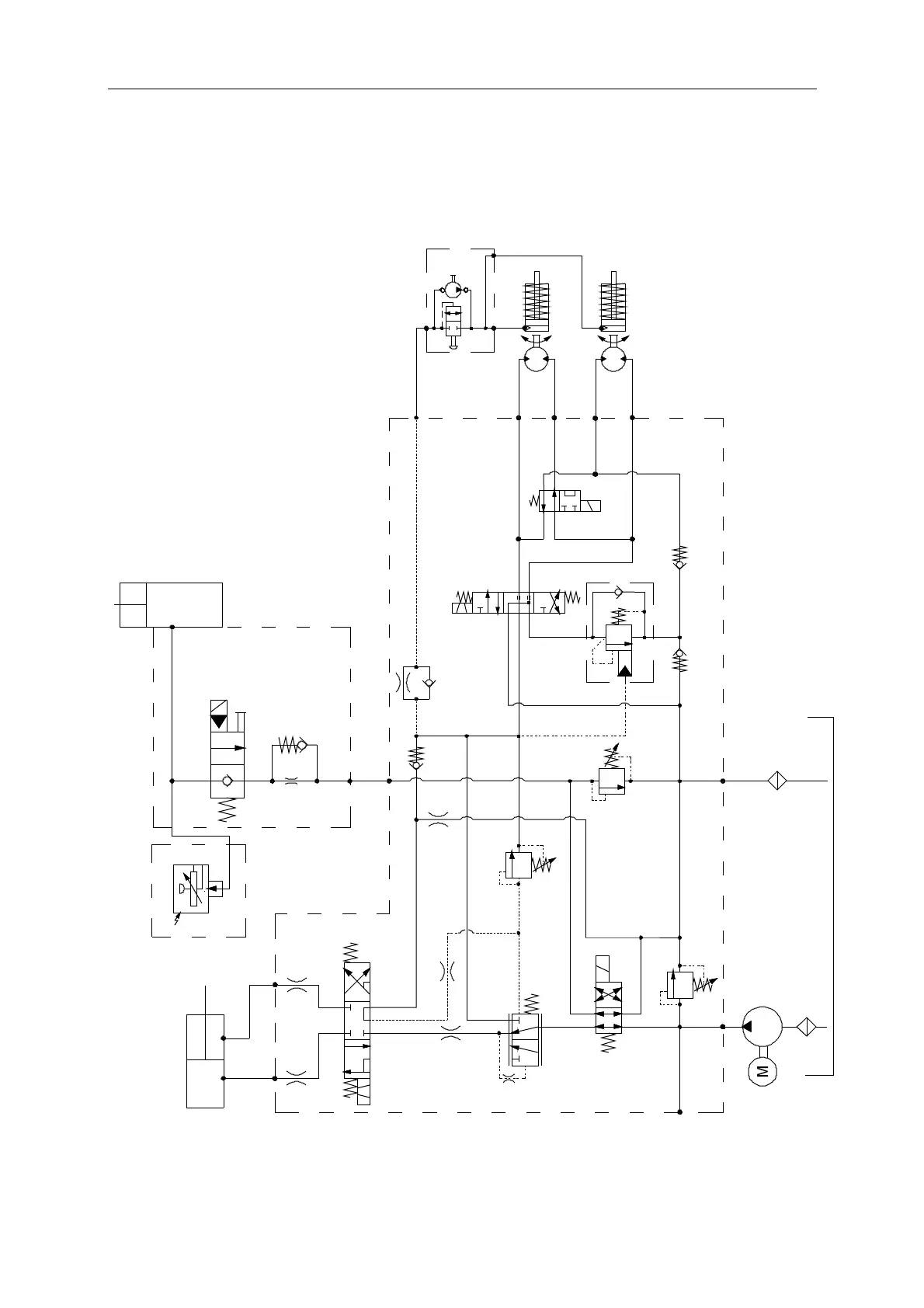

Hydraulic Schematic
JCPT0808HA JCPT0812HA JCPT1008HA JCPT1012HA
Pump
IN
A A B
B
SV5
CV3
D3
D2 D1
D4
LB
B
RB
RV3
SV2
RV2
CB1
CV2
CV1
RV1
EC1
ORF7
ORF3
SV1
ORF1 ORF2
ORF5
ORF4
120bar
Tank
Filter
Function valve
Steer cylinder
Platform loading (Option)
Lift
cylinder
Lower valve
Sensor
Hand pump
Motor
Brake
SV4
SV3
P
M
T
BRK
L
S2
S1
1.5mm
235bar
Motor
Brake
Filter
ORF8
RV2=130bar(JCPT0808HA) RV2=160bar(JCPT0812HA) RV2=160bar(JCPT1008HA) RV2=210bar(JCPT1012HA)
