Transport and Lifting Instructions
71
Lifting Instructions
Fully lower the platform. Be sure the extension
decks, controls and covers are secure.
Remove all loose items on the machine.

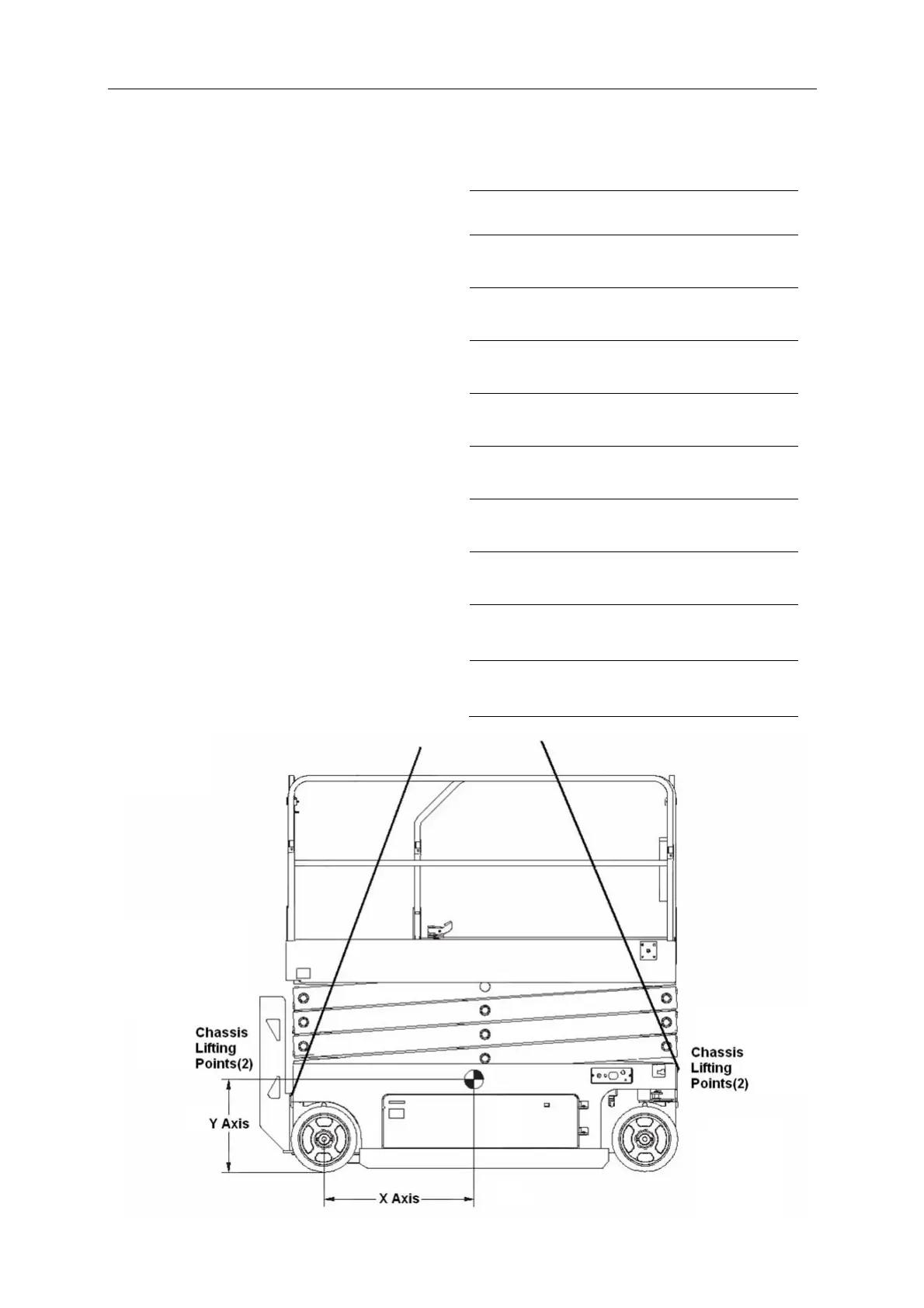

Determine the center of gravity of your
machine using the table and the picture on this
page.
Attach the rigging only to the designated lifting
points on the machine. There are two lifting
points on each end of the machine.
Adjust the rigging to prevent damage to the
machine and to keep the machine level.
Center of gravity
Model X Axis Y Axis
JCPT0807HA
JCPT0807AC
60 cm 59.1cm
JCPT0808HA
JCPT0808AC
90.5 cm 56.5cm
JCPT0812HA
JCPT0812AC
95.4 cm 64.7cm
JCPT1008HA
JCPT1008AC
80.6cm 57.6cm
JCPT1012HA
JCPT1012AC
89cm 64.4cm
JCPT1212HA
JCPT1212AC
83cm 68.2cm
JCPT1412HA
JCPT1412AC
83cm 72.1cm
JCPT1612HA
JCPT1612AC
98cm 70.5cm
JCPT1612HAS
JCPT1612ACS
93.7cm 80.2cm
