6 © 1999 Directed Electronics, Inc. Vista, CA
primary harness (H1) wire connection guide
This wire supplies a (-) 500 mA ground as long as the system is armed. This output ceases as soon as the system
is disarmed. The orange wire is pre-wired to control the DEI
®
8618 starter kill relay.

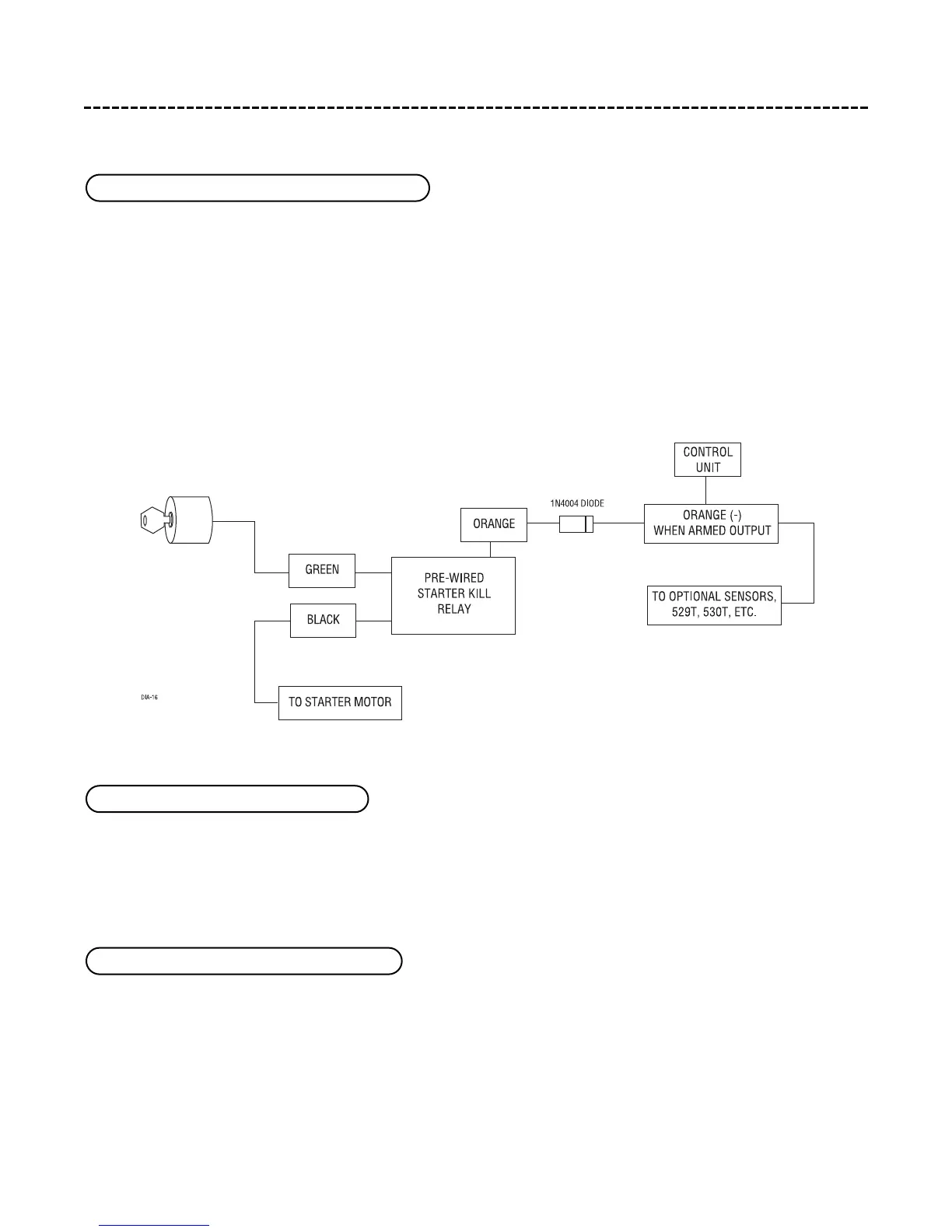

NOTE: If connecting the orange wire to control another module, such as a DEI
®
529T or 530T window
controller, a 1 amp diode (type 1N4004) will be required. Insert the diode as shown in the diagram
below.
IMPORTANT! Never interrupt any wire other than the starter wire.
This wire provides a (-) 200mA output to flash the parking lights. This is suitable for driving (-) light control
wires in Toyota, Lexus, BMW, some Mitsubishi, some Mazda, etc. If the vehicle has a positive parking light circuit,
a relay must be used to flash the parking lights.
This wire provides a (-) 200 mA output whenever the transmitter code controlling Channel 3 is received. This
output will continue as long as that transmission is received. Use for options such as DEI’s 551T Valet
®
Start
system, 529T or 530T power window controllers, etc.
H1/3 WHITE/BLUE (-) channel 3 output
H1/2 WHITE (-) parking light output
H1/1 ORANGE (-) ground-when-armed output
