© 1999 Directed Electronics, Inc. Vista, CA 9

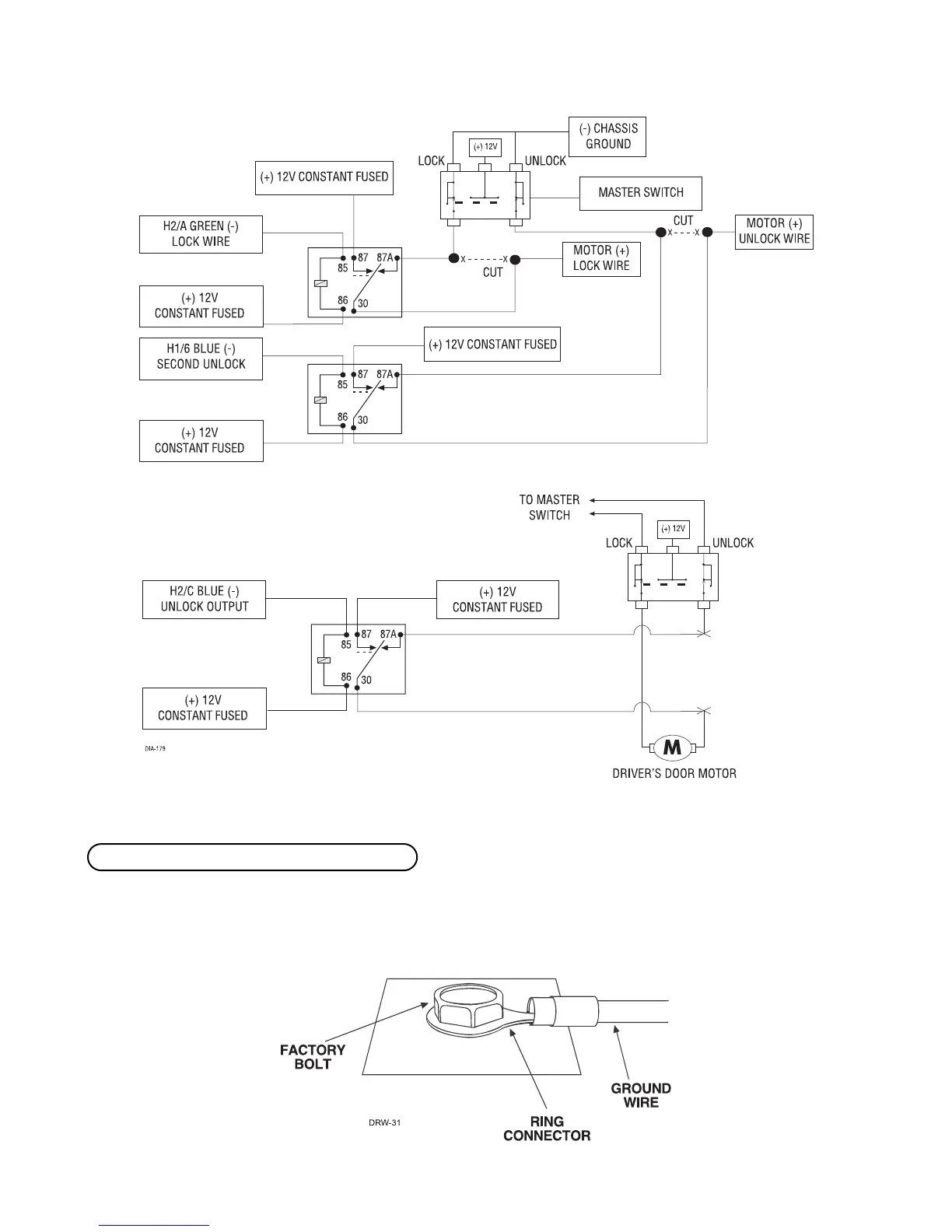

Type C (+) reversing polarity system: Wire relays as shown.
Connect this wire to bare metal, preferably with a factory bolt rather than your own screw (screws tend to either
strip or loosen with time). We recommend grounding all your components to the same point in the vehicle.
H1/8 BLACK (-) chassis ground connection
To Next Page
