DS4+ FORD6
© 2017-12-13 Directed. All rights reserved.

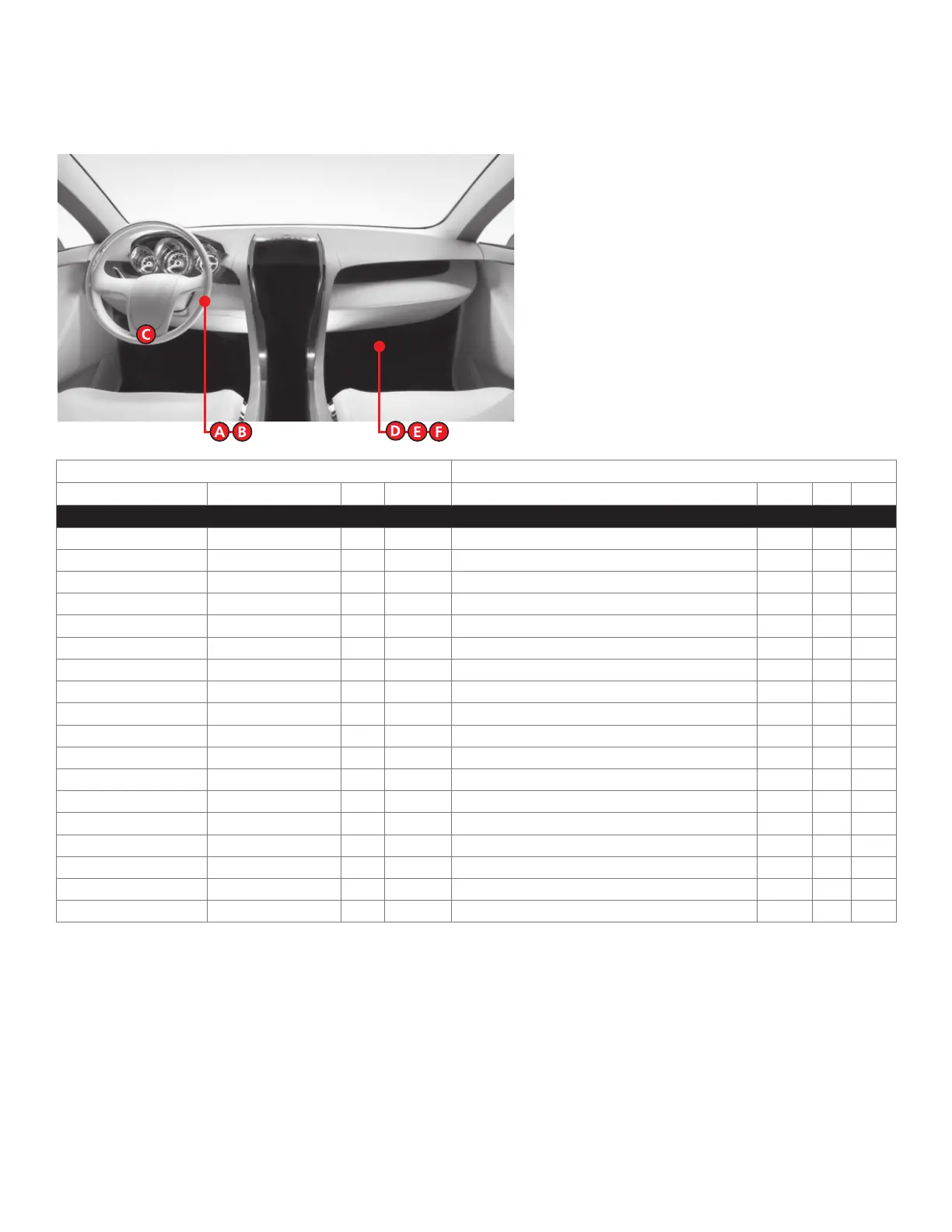

Vehicle wiring reference chart
This section provides vehicle wiring information to guide you through the various stages of your installation. Refer to
www.directechs.com for additional information.
Wire Information Connector Information
Function Color Pin Polarity Location Color Pins Ref.
Ford Expedition 2008
RX Blue/Gray 4 Data (PATS) connector. Black 4 A
TX Violet/Brown 3 Data (PATS) connector. Black 4 A
12V Blue/Red 9 (+) Ignition switch. Gray 10 B
Starter Blue/White 10 (+) Ignition switch. Gray 10 B
Ignition White/Orange 1 (+) Ignition switch. Gray 10 B
Accessory 1 Brown/Yellow 7 (+) Ignition switch. Gray 10 B
Accessory 2 Violet/Green 5 (+) Ignition switch. Gray 10 B
Keysense Blue/Gray 3 (+) Ignition switch. Gray 10 B
Parking Lights Violet/White 6 (+) SJB (Smart Junction Box) in passenger kick panel. Gray 13 D
HS CAN High White/Blue 6 Data OBDII. Black 16 C
HS CAN Low White 14 Data OBDII. Black 16 C
MS CAN High Gray/Orange 3 Data OBDII. Black 16 C
MS CAN Low Violet/Orange 11 Data OBDII. Black 16 C
Driver Door Trigger Green/Violet 14 Cut SJB in passenger kick panel. Gray 26 E
Hatch Release Brown 7 (-) SJB in passenger kick panel. Gray 26 E
Lock White/Brown 17 (-) SJB in passenger kick panel. Gray 26 F
Unlock Blue/Brown 4 (-) SJB in passenger kick panel. Gray 26 F
Tach NOT Violet/Green N/A (AC) Any fuel injector. N/A N/A N/A
