53
DS4+ FORD6
© 2017-12-13 Directed. All rights reserved.
When used in conjunction with SmartStart

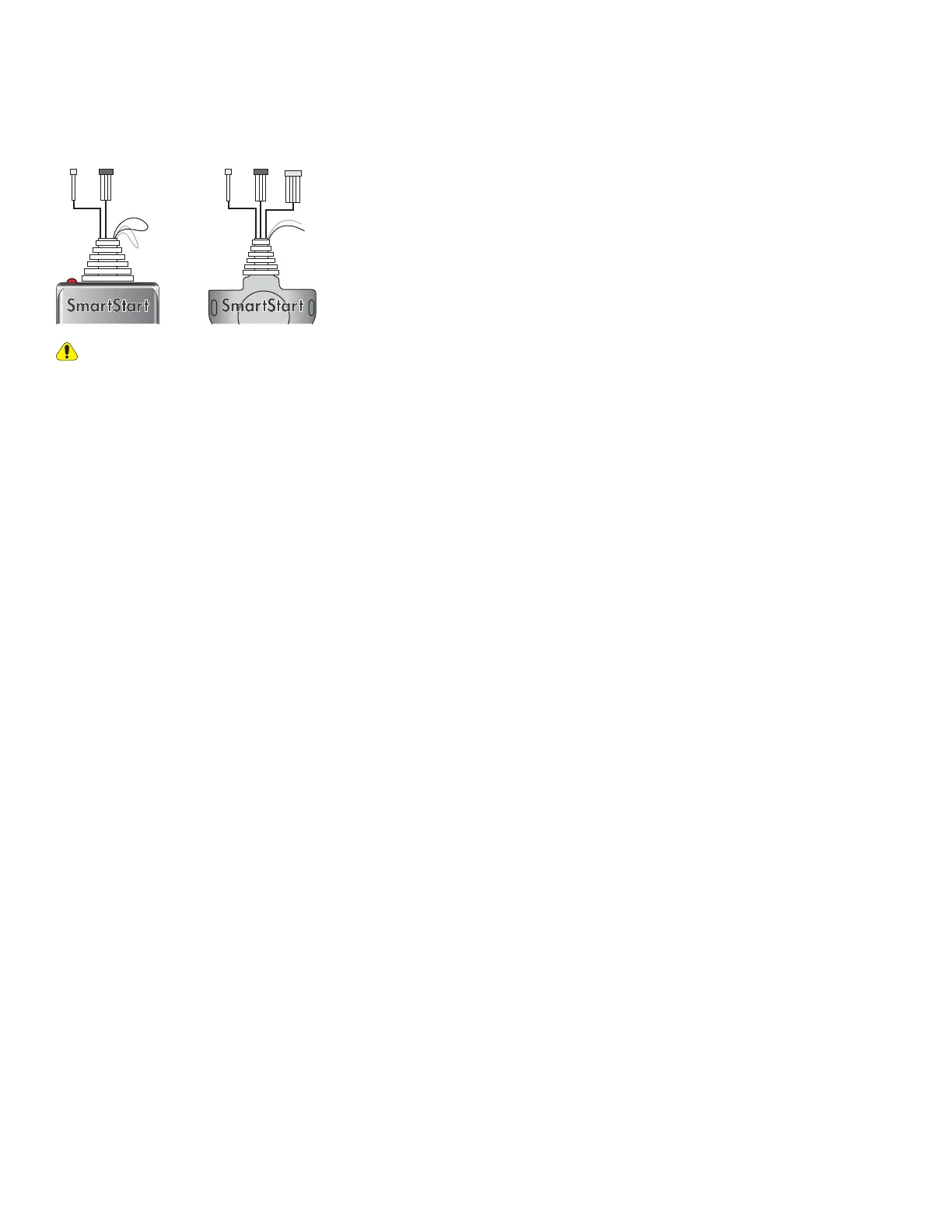

To enable D2D communication between the DS4+ and the SmartStart one of the following actions must be executed:
• SmartStart with Loops – The brown loop must be cut.
• SmartStart with Pigtails – The gray wire must be connected to a ground source.
Loops Pigtails
DO NOT connect the SmartStart 2-pin power harness when using the DS4+. Power and ground will be provided by the D2D
connector on main module. Refer to the SmartStart documentation for further details.
D2D port configuration
The system will automatically configure the D2D ports based on your selections in the module programming. The white D2D port is
reserved for SmartStart. To ensure proper functionality with SmartStart, it is important that it is selected in the system programming
of the DirectLink application or via the online web tool.
Note: Both black D2D ports are reserved for the Control Center (antenna) and 8504D Combo Sensor.
